UT-21044 - Homelite Mightylite String Trimmer, 26cc General Assembly Parts Diagram

Mightylite String Trimmer, 26cc

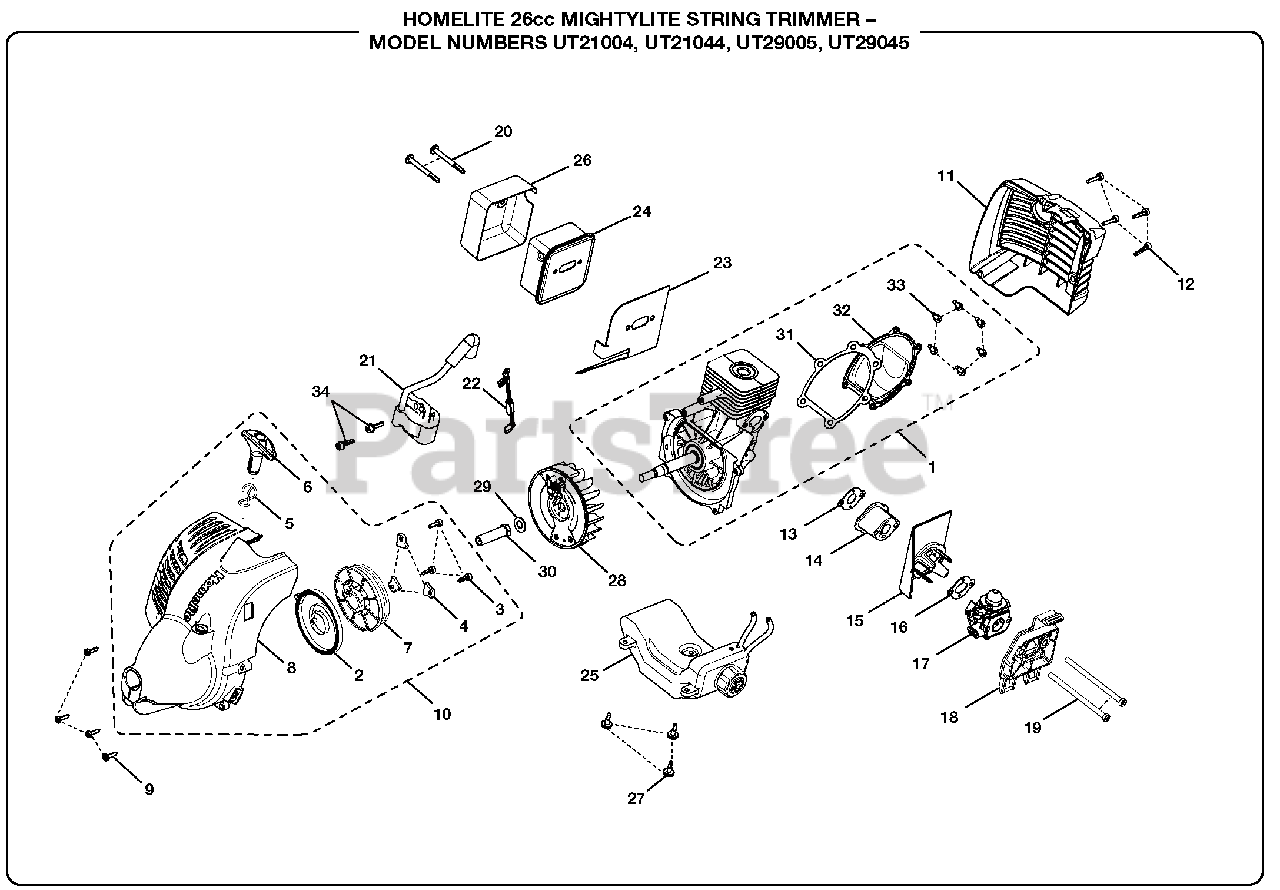

General Assembly Parts Diagram

  • Title

1

Homelite 308891001

Short Block Assembly (Inc. Key Nos. 31-33)

$58.99

$

Usually ships in 3-7 days

0

2

Homelite 638033001

Spring & Container Assembly

$5.49

$

In Stock, only 1 left!

0

3

Homelite 660967001

Screw (M4 x 14 mm)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 638389002

Pulley Retainer

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 900849002

Starter Rope

$1.99

$

In Stock, Qty 5

0

6

Homelite 511731001

Starter Grip
(Superseded to PS06114)

$

$

Not available

7

Homelite 310022001

Easy Starter Assembly
(Superseded to 310022003)

$11.99

$

In Stock, only 1 left!

0

8

Homelite 308672001

Front Housing Assembly

$

$

Not available

9

Homelite 660970001

Screw (M4 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

10

Homelite 308671015

Starter Housing Assembly (Inc. Key Nos. 2-8)
(Superseded to 308671032)

$

$

Not available

11

Homelite 518504001

Rear Housing

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 660466001

Screw (M4 x 18 mm)

$1.99

$

In Stock, Qty 6

0

13

Homelite 901551001

Intake Gasket

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 518497001

Heat Dam

$3.99

$

In Stock, only 1 left!

0

15

Homelite 518685001

Heat Dam Deflector

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 901552001

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 308054013

Carburetor

$

$

Not available

18

Homelite 518766001

Air Box Base

$

$

Not available

19

Homelite 660454007

Screw (M5 x 70 mm)

$1.99

$

In Stock, only 3 left!

0

20

Homelite 660638003

Screw (10-24 x 2-1/8 in.)
(Superseded to PS03999)

$

$

Not available

21

Homelite 850108001

Ignition Module
(Superseded to 850108002)

$30.99

$

In Stock, only 1 left!

0

22

Homelite 308863001

Lead Assembly

$

$

Not available

23

Homelite 901452001

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 308990016

Muffler Assembly

$28.99

$

Usually ships in 3-7 days

0

25

Homelite 308675002

Fuel Tank Assembly w/Cap

$

$

Not available

26

Homelite 638442001

Heat Shield

$4.49

$

In Stock, only 1 left!

0

27

Homelite 660970002

Screw (M4 x 10 mm Shoulder)

$1.99

$

In Stock, only 1 left!

0

28

Homelite 308811001

Flywheel Assembly
(Superseded to 308811004)

$

$

Not available

29

Homelite 631049001

Washer
(Superseded to PS84065)

$

$

Not available

30

Homelite 638348001

Drive Connector

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 901550001

Gasket
(Superseded to 901550003)

$1.99

$

In Stock, only 2 left!

0

32

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$6.49

$

Usually ships in 3-7 days

0

33

Homelite 660925003

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 660968001

Screw (M4 x 19 mm)

$1.99

$

Usually ships in 3-7 days

0
