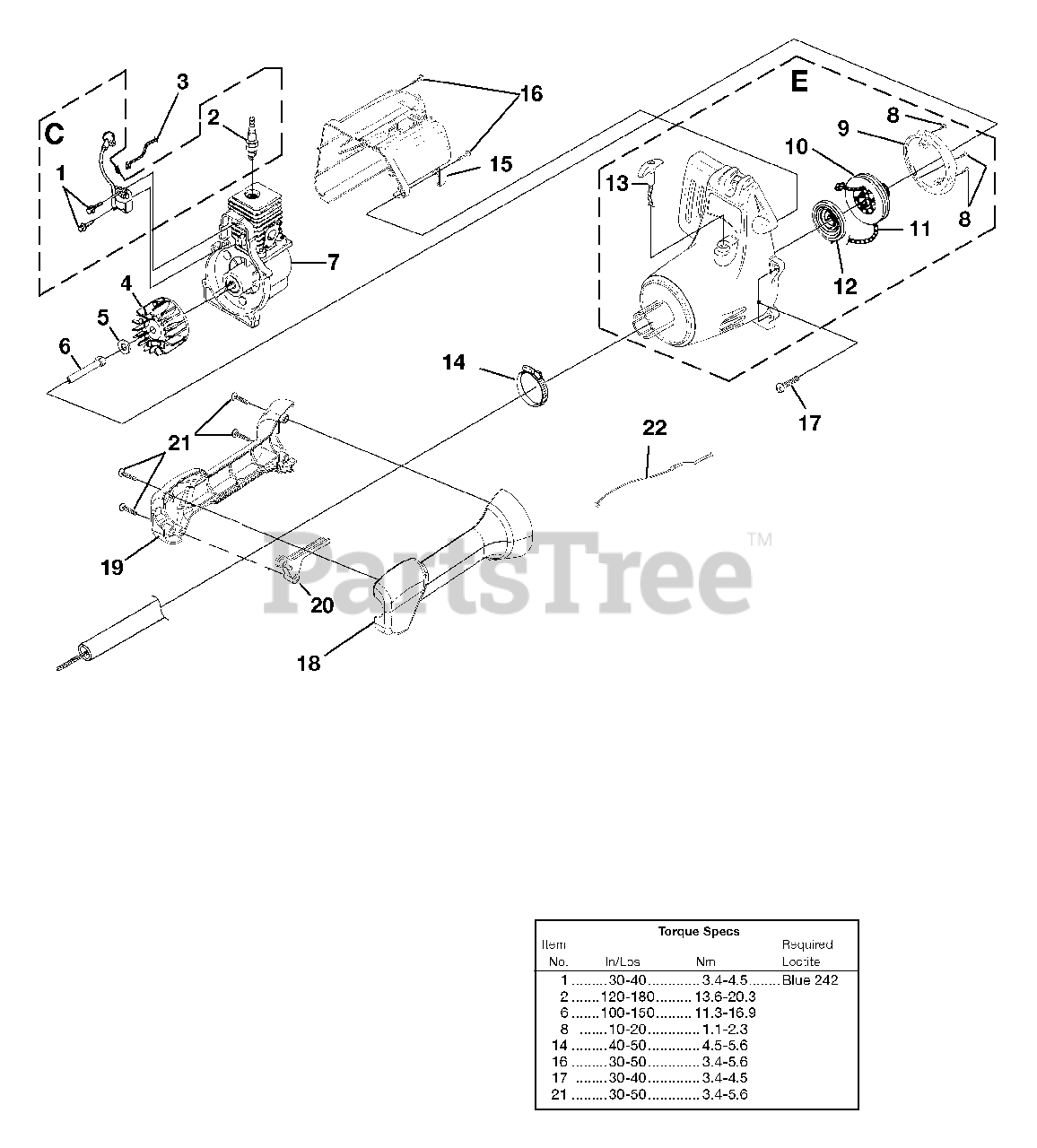

UT-20933 - Homelite Trim N' Edge String Trimmer Ignition - Rotor - Starter Parts Diagram

Trim N' Edge String Trimmer

Ignition - Rotor - Starter Parts Diagram

  • Title
C

Homelite 984873001

IGNITION KIT

$

$

Not available

1

Homelite 82540

SCREW-Taptite (8-32 x 1")

$2.49

$

Usually ships in 3-7 days

0

2

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

3

Homelite A07238

LEAD-Electrical
(Superseded to 290218001)

$

$

Not available

4

Homelite 986153001

ROTOR AND PAWL ASSY.
(Superseded to 300952002)

$13.99

$

In Stock, only 1 left!

0

5

Homelite PS84065

WASHER-Flat

$

$

Not available

6

Homelite 98795A

CONNECTOR-Drive (.250)

$

$

Not available

7

Homelite 3074107

SHORT BLOCK
(Superseded to 985394001)

Note: See "Engine Internal"

$

$

Not available

E

Homelite 984875001

COMPLETE STARTER ASSEMBLY

$

$

Not available

8

Homelite 82543

SCREW-Taptite (8-16 x 1/2")

$

$

Not available

9

Homelite 6300222

BAFFLE-Air

$

$

Not available

10

Homelite PS01122

PULLEY-Starter

$1.99

$

In Stock, only 2 left!

0

11

Homelite 9789902

ROPE-Starter (42")
(Superseded to 900849002)

$1.99

$

In Stock, only 1 left!

0

12

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$5.49

$

Usually ships in 3-7 days

0

13

Homelite 5946702

GRIP-Starter
(Superseded to PS01200)

$2.49

$

In Stock, only 3 left!

0

14

Homelite PS01611

CLAMP
(Superseded to 638012002)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 984633001

HOUSING-Rear Kit

$14.99

$

Usually ships in 3-7 days

0

16

Homelite 82563

SCREW-Taptite (10-14 x 7/8")

$1.99

$

In Stock, Qty 6

0

17

Homelite 82538

SCREW-Taptite (10-24 x 3/4")

$1.99

$

Usually ships in 3-7 days

0

18

Homelite PS04383

CONTROL HANDLE - (LH)

$

$

Not available

19

Homelite PS04384

CONTROL HANDLE - (RH)

$

$

Not available

20

Homelite 983815001

TRIGGER-Throttle
(Superseded to 518327001)

$

$

Not available

21

Homelite 82537

SCREW-Taptite (10-14 x 7/8")

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 0883202

CABLE-Throttle
(Superseded to 308055002)

$2.99

$

In Stock, only 4 left!

0
