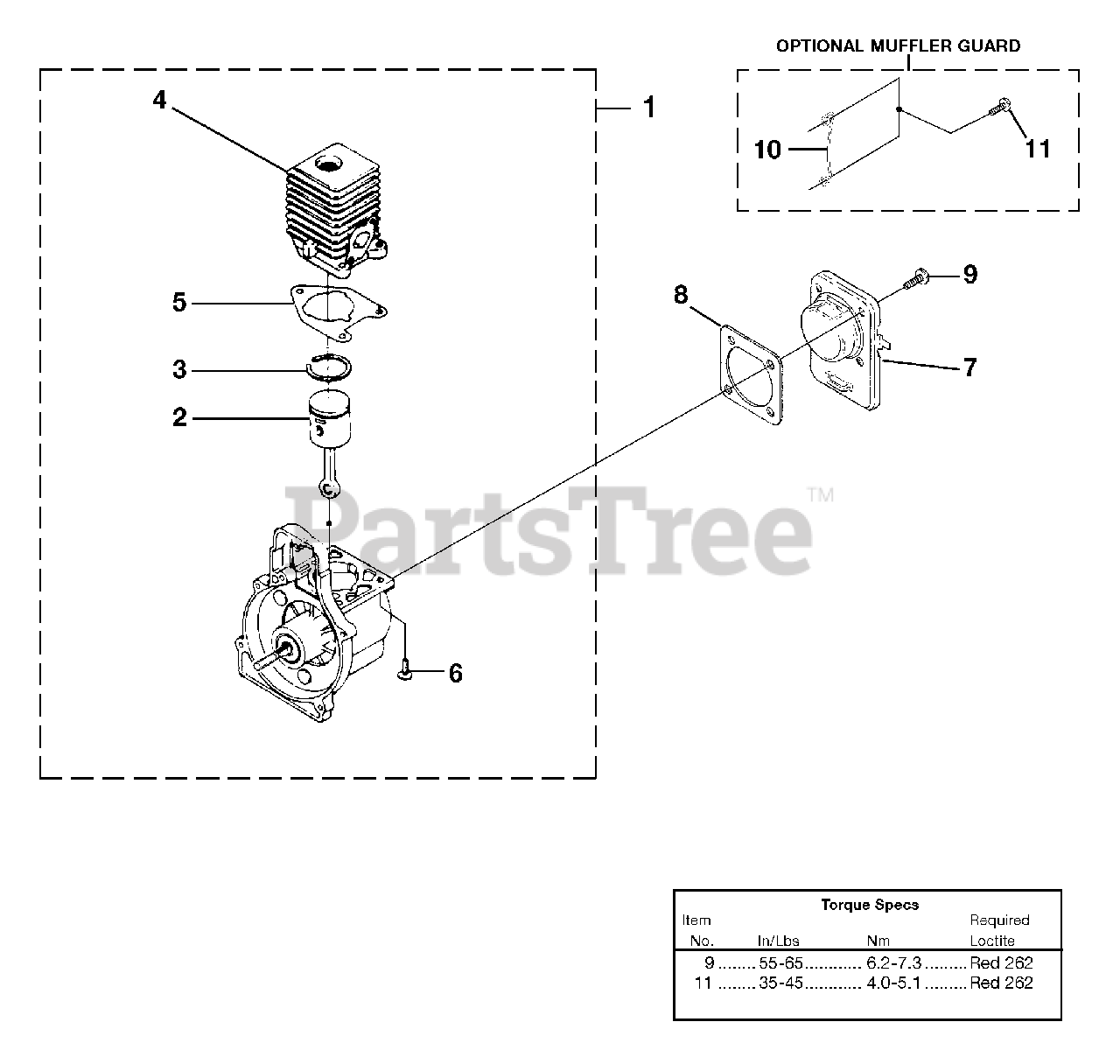

UT-20933 - Homelite Trim N' Edge String Trimmer Engine Internal Parts Diagram

Trim N' Edge String Trimmer

Engine Internal Parts Diagram

  • Title
1

Homelite 3074107

SHORT BLOCK ASSY.
(Superseded to 985394001)

$

$

Not available

2

Homelite 3081102

PISTON & ROD ASSY.

$

$

Not available

3

Homelite PS04468

RING-Piston
(Superseded to 678001003)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 6457005

CYLINDER

$

$

Not available

5

Homelite 985259001

GASKET-Cylinder
(Superseded to 900953001)

$

$

Not available

6

Homelite PS02807

SCREW-Sems (12-24 X 3/4")

$2.49

$

Usually ships in 3-7 days

0

7

Homelite PS02130

CRANKCASE COVER

$

$

Not available

8

Homelite 06443A

GASKET-Crankcase Cover
(Superseded to 900954001)

$

$

Not available

9

Homelite PS01565

SCREW-Sems (10-24 X 1/2")

$2.49

$

Usually ships in 3-7 days

0

10

Homelite UP04099

MUFFLER GUARD

$

$

Not available

11

Homelite UP03897

SCREW-Thread Forming (10-14 X 1/2")
(Superseded to 82541)

$1.99

$

In Stock, only 3 left!

0
