UT-20818 - Homelite Versa Tool String Trimmer Engine Internal Parts Diagram

Versa Tool String Trimmer

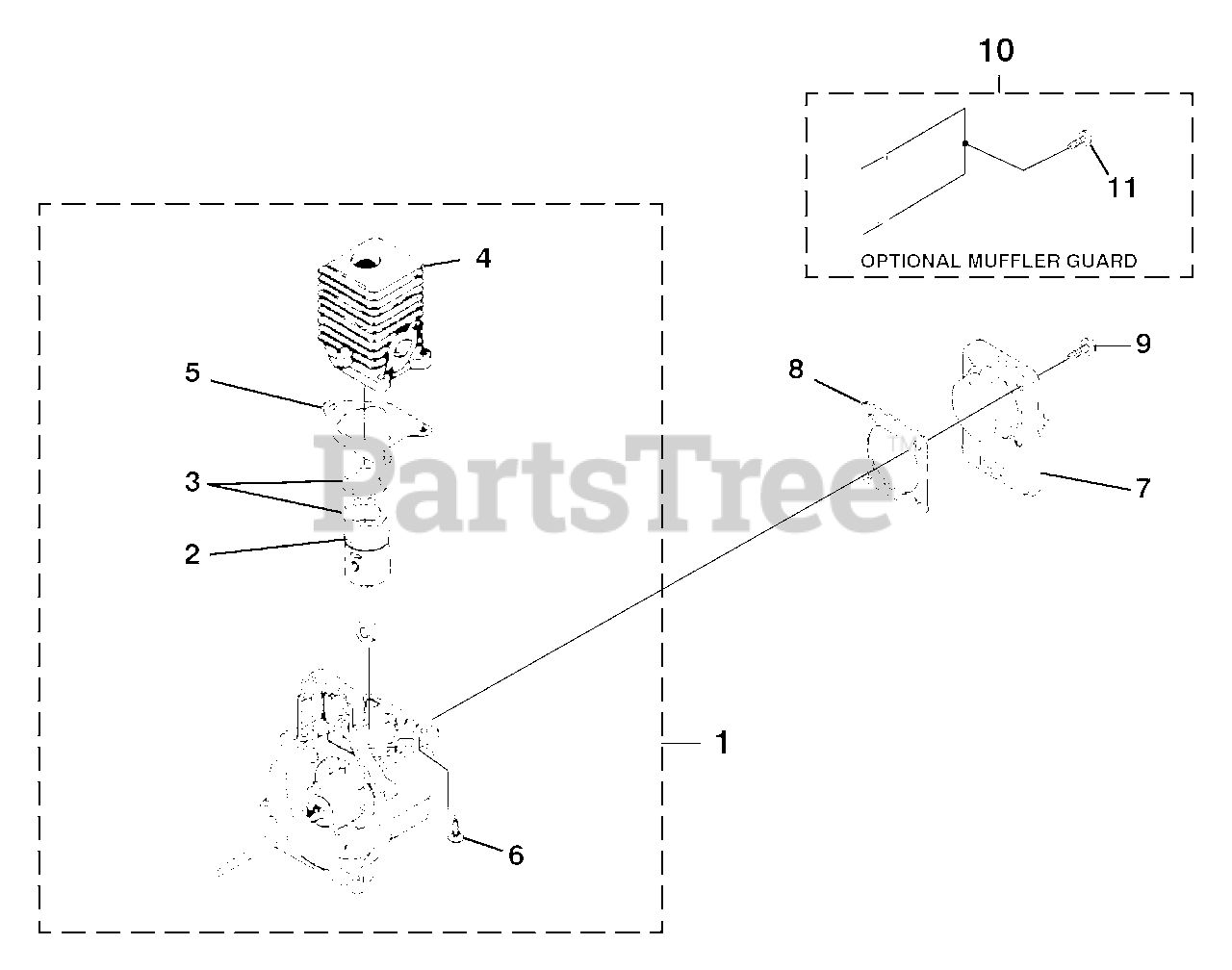

Engine Internal Parts Diagram

  • Title

1

Homelite 984867001

SHORT BLOCK SSY.

Note: INCLUDES ITEMS 1-6

$

$

Not available

2

Homelite 984543001

PISTON & ROD ASSY.
(Superseded to UP06937A)

Note: INCLUDES ITEMS 2-3

$26.99

$

Usually ships in 3-7 days

0

3

Homelite PS03498

RING- Piston
(Superseded to 985607001)

$8.49

$

In Stock, only 3 left!

0

4

Homelite 6457007

CYLINDER
(Superseded to 985524002)

$

$

Not available

5

Homelite 043888

GASKET Cylinder

$

$

Currently unavailable

6

Homelite PS02807

SCREW-Sems (12-24 X 3/4")

$2.49

$

Usually ships in 3-7 days

0

7

Homelite PS02130

CRANKCASE COVER

$

$

Not available

8

Homelite 06443A

GASKET Crankcase Cover
(Superseded to 900954001)

Note: (Also 1 included w/short block)

$

$

Not available

9

Homelite PS01565

SCREW- Sems (10-24 X 1/2")

$2.49

$

Usually ships in 3-7 days

0

10

Homelite UP00027

MUFFLER GUARD
(Superseded to UP04099)

$

$

Not available

11

Homelite U03897

SCREW- Plasite (10-14 X 1/2")

$

$

Currently unavailable
