UT-20811-D - Homelite Versa Tool String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

Versa Tool String Trimmer

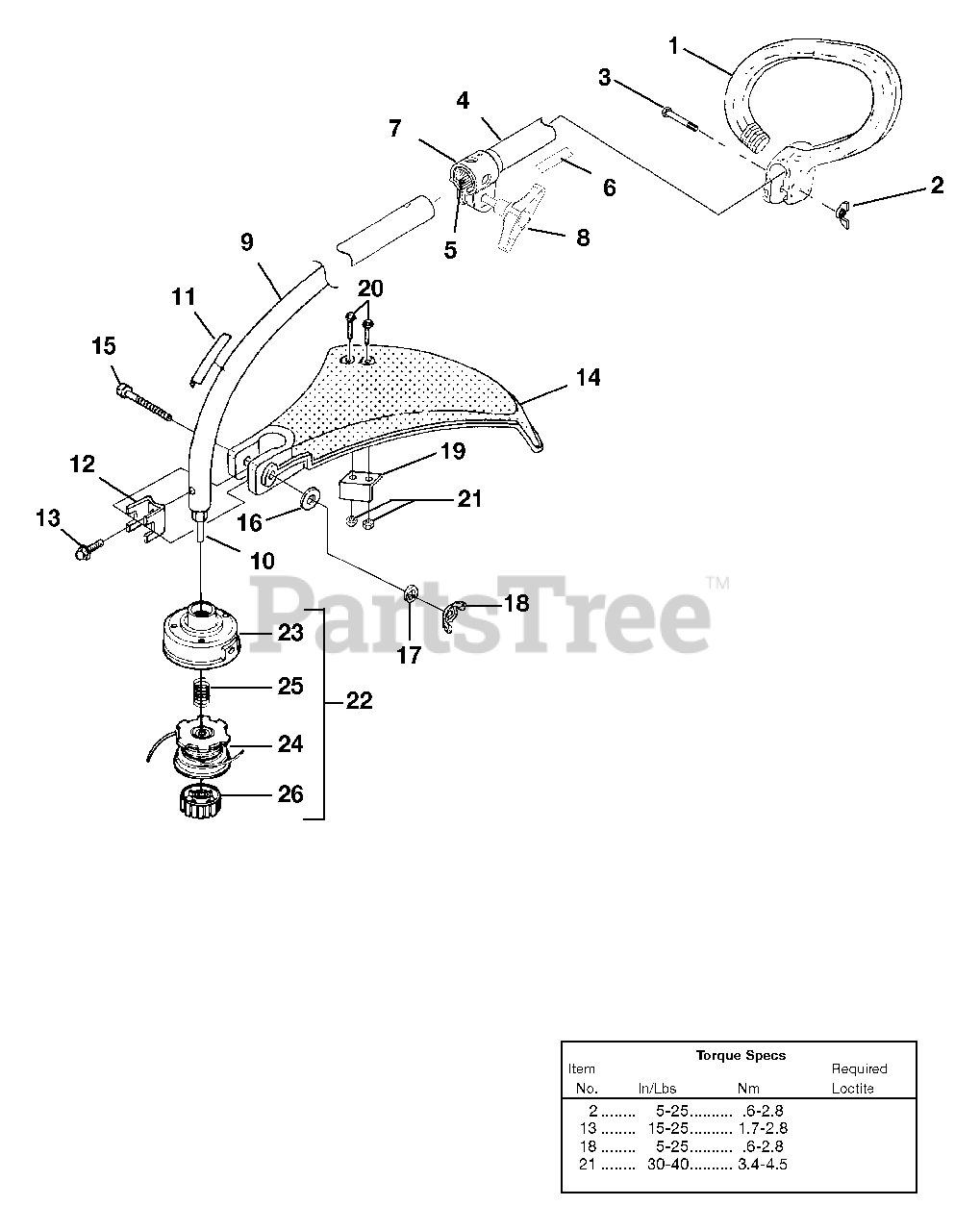

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title
1

Homelite UP06959A

HANDLE-Anti-Vibe
(Superseded to 308472001)

Note: Includes items 1-3

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 x 2")

$4.99

$

Usually ships in 3-7 days

0

4

Homelite UP03850A

DRIVESHAFT ASSY. (Upper)

Note: Includes items 4-5

$

$

Not available

5

Homelite PS02278

FLEXSHAFT w/Collar & Liner
(Superseded to UP03850A)

$

$

Not available

6

Homelite PS02750

DECAL-Warning

$

$

Not available

7

Homelite UP03839A

COUPLER ASSEMBLY

Note: Includes items 7-8

$

$

Not available

$

$

Not available

9

Homelite UP03851A

DRIVESHAFT HOUSING (Lower)
(Superseded to 308038001)

Note: Includes items 9-13

$19.99

$

In Stock, only 1 left!

0

10

Homelite 07674

SHAFT-Flex
(Superseded to A07673)

$61.99

$

Usually ships in 3-7 days

0

11

Homelite PS02750

DECAL-Warning

$

$

Not available

12

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

13

Homelite PS05243

SCREW-Sems Hex (10-24 X 3/8")

$

$

Not available

14

Homelite UP06710A

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to T308744001)

Note: Includes items 14-21

$

$

Not available

15

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 X 2")

$4.99

$

Usually ships in 3-7 days

0

16

Homelite 84006

WASHER-Flat (1/4")

$

$

Not available

17

Homelite 83009

WASHER-Lock (1/4")

$8.49

$

Usually ships in 3-7 days

0

18

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

$

$

Not available

19

Homelite 07129

BLADE-Cut-Off

$

$

Not available

20

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

21

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

22

Homelite UP04408A

STRINGHEAD-Complete (.080")
(Superseded to 000998230)

Note: Includes items 22-26

$

$

Not available

23

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

24

Homelite PA0387A

SPOOL & STRING (.080")
(Superseded to 308044002)

$

$

Not available

25

Homelite 06713

SPRING-Compression

$1.99

$

In Stock, only 3 left!

0

26

Homelite A98866A

RETAINER-Spool (RH Thread, Black)
(Superseded to 308042002)

$

$

Not available
