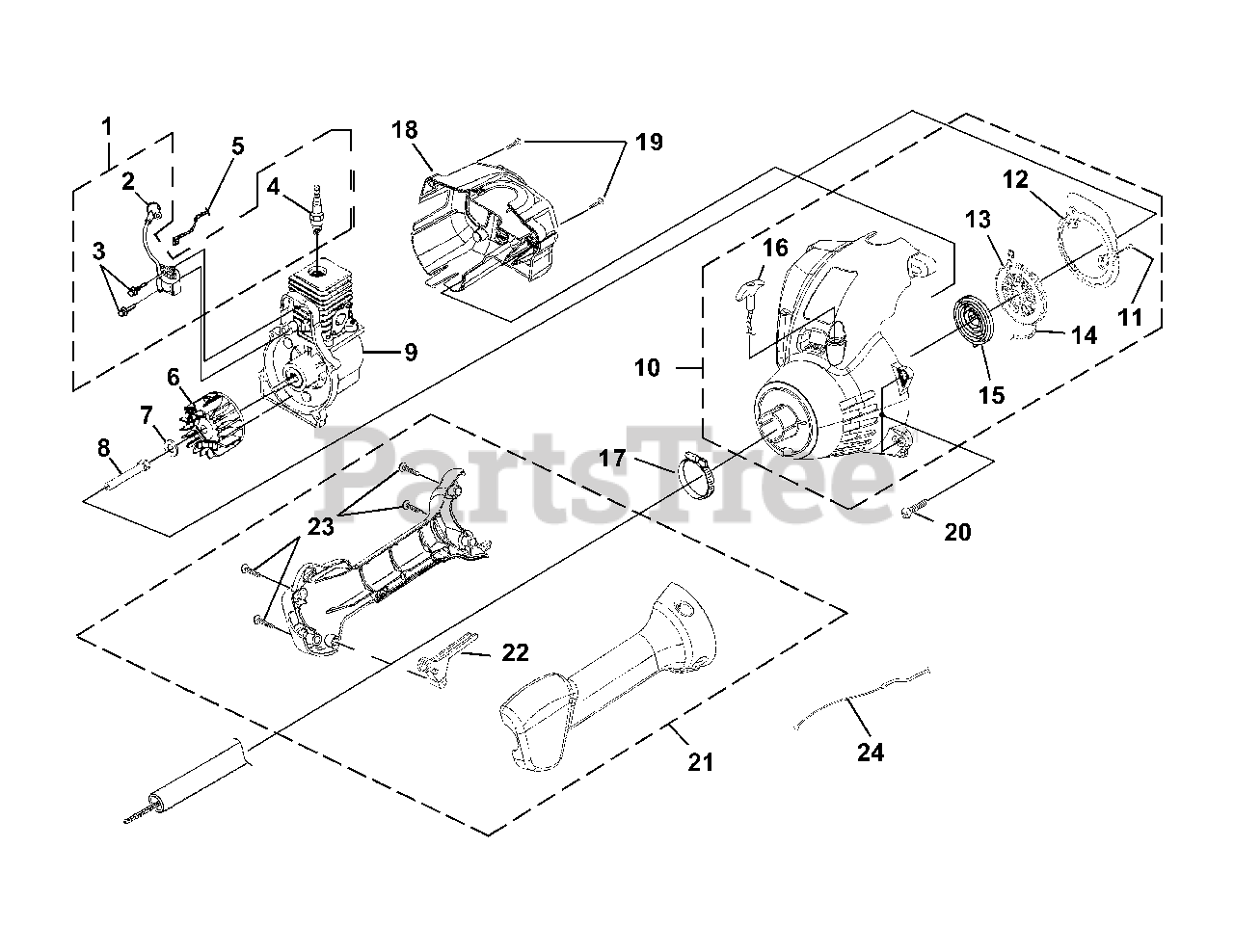

UT-20805 - Homelite Trim N' Edge String Trimmer Ignition - Rotor - Starter Parts Diagram

Trim N' Edge String Trimmer

Ignition - Rotor - Starter Parts Diagram

  • Title

1

Homelite UP06784

IGNITION KIT

Note: Includes items 2-4

$

$

Not available

2

Homelite UP03868

TERMINAL & COVER
(Superseded to A33055)

$

$

Not available

3

Homelite UP03896

SCREW-Taptite (8-32 X 1")
(Superseded to 82540)

Note: Torque Specs 30-40 In/Lbs; 3.4-4.5 Nm; Required Loctite Blue 242

$1.49

$

Usually ships in 3-7 days

0

4

Homelite UP03883

SPARK PLUG

Note: Torque Specs 120-180 In/Lbs; 13.6-20.3 Nm

$3.49

$

In Stock, only 4 left!

0

5

Homelite UP04690

LEAD-Electrical
(Superseded to A07238)

$

$

Not available

6

Homelite UP03009

ROTOR KIT

$

$

Currently unavailable

7

Homelite UP04241

WASHER-Flat
(Superseded to PS84065)

$

$

Not available

8

Homelite UP04271

CONNECTOR-Drive (.250)
(Superseded to 98795A)

Note: Torque Specs 100-150 In/Lbs; 11.3-16.9 Nm

$

$

Not available

9

Homelite UP06345

SHORT BLOCK

Note: (See "Engine Internal" illustration & parts list)

$

$

Not available

10

Homelite UP04743

COMPLETE STARTER ASSEMBLY
(Superseded to UP04743A)

Note: Includes items 11-16

$

$

Not available

11

Homelite UP06910

SCREW-Thread Form (8-16 X 1/2")
(Superseded to 82543)

Note: Torque Specs 10-20 In/Lbs; 1.1-2.3 Nm

$

$

Not available

12

Homelite UP04744

BAFFLE-Air
(Superseded to PS02040)

$

$

Not available

13

Homelite UP03012

PULLEY-Starter
(Superseded to PS01122)

$1.99

$

In Stock, only 2 left!

0

14

Homelite UP03912

ROPE-Starter (42")
(Superseded to 900849002)

$1.49

$

In Stock, only 3 left!

0

15

Homelite UP03917

SPRING & CONTAINER
(Superseded to A98773A)

$3.49

$

In Stock, only 4 left!

0

16

Homelite UP03026

GRIP-Starter (Yellow)
(Superseded to PS01200)

$1.49

$

In Stock, only 3 left!

0

17

Homelite UP03111

CLAMP
(Superseded to PS01611)

$2.99

$

Usually ships in 3-7 days

0

18

Homelite UP02965

HOUSING-Rear Kit

Note: Includes item 19

$

$

Not available

19

Homelite UP03895

SCREW-Truss (10-14 X 7/8")
(Superseded to 82537)

Note: Torque Specs 30-50 In/Lbs; 3.4-5.6 Nm

$1.99

$

Usually ships in 3-7 days

0

20

Homelite UP03406

SCREW-Taptite (10-24 X 3/4")
(Superseded to 82538)

Note: Torque Specs 30-40 In/Lbs; 3.4-4.5 Nm

$1.49

$

Usually ships in 3-7 days

0

21

Homelite UP03091

CONTROL HANDLE ASSY.
(Superseded to UP03091A)

Note: Includes items 22-23

$

$

Not available

22

Homelite UP04559

TRIGGER
(Superseded to 088331)

$

$

Not available

23

Homelite UP03895

SCREW-Truss Hd. (10-14 x 7/8")
(Superseded to 82537)

Note: Torque Specs 30-50 In/Lbs; 3.4-5.6 Nm

$1.99

$

Usually ships in 3-7 days

0

24

Homelite UP04557

CABLE-Throttle
(Superseded to 308055002)

$1.99

$

In Stock, Qty 5

0
