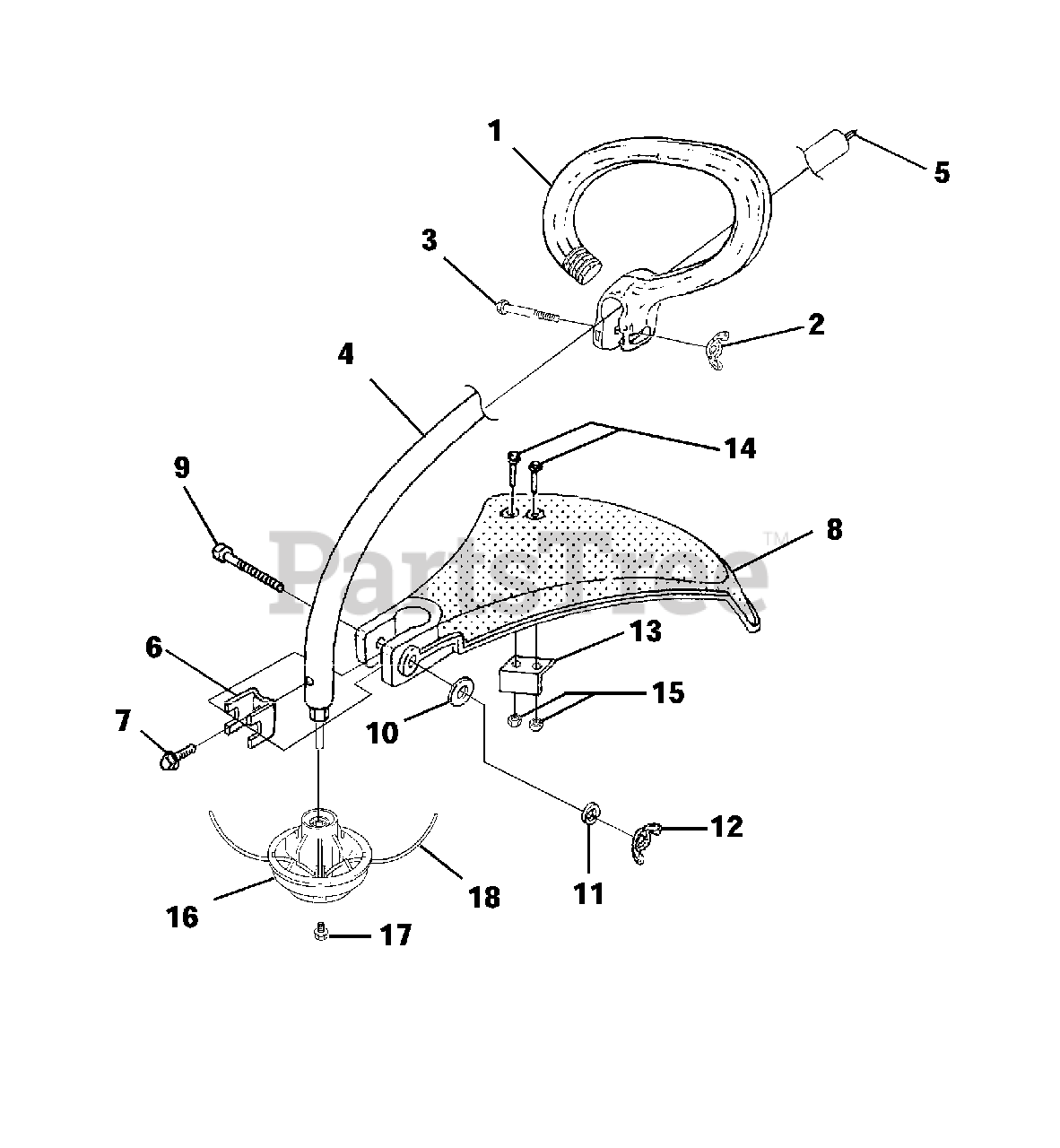

UT-20780 - Homelite EasyTrim String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

EasyTrim String Trimmer

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP06959

HANDLE ASSY.-Front
(Superseded to 308472001)

$

$

Not available

2

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Specs 5-25 In/Lbs; .6-2.8 Nm

$

$

Not available

3

Homelite UP06523

SCREW-Cap Hex Hd.
(Superseded to 80295)

$4.99

$

Usually ships in 3-7 days

0

4

Homelite UP00710

DRIVESHAFT HOUSING ASSY.
(Superseded to UP00710A)

$

$

Not available

5

Homelite UP03031

SHAFT-Flexible
(Superseded to PS01502)

$

$

Not available

6

Homelite UP04137

CLAMP
(Superseded to 07928)

$

$

Not available

7

Homelite UP04256

SCREW-Sems Hex Hd. (#10-24 X 3/8")
(Superseded to PS05243)

Note: Torque Specs 15-25 In/Lbs; 1.7-2.8 Nm

$

$

Not available

8

Homelite UP06710

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

$

$

Not available

9

Homelite UP06523

SCREW-Cap Hex Hd. (10-24 X 2")
(Superseded to 80295)

$4.99

$

Usually ships in 3-7 days

0

10

Homelite UP03415

WASHER-Flat (1/4")
(Superseded to 84006)

$

$

Not available

11

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

12

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Specs 5-25 In/Lbs; .6-2.8 Nm

$

$

Not available

13

Homelite UP04119

BLADE-Cut-Off

$

$

Not available

14

Homelite UP04159

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 82531)

$

$

Not available

15

Homelite UP03885

NUT-Hex (10-24)
(Superseded to 81208)

Note: Torque Specs 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

16

Homelite DA09364

STRINGHEAD-Pro-Cut w/line
(Superseded to DA09364A)

$

$

Not available

17

Homelite UP04102

SCREW (5/16-18 x 5/8")
(Superseded to PS00082)

Note: Torque Specs 40-60 In/Lbs; 4.5-6.8 Nm

$

$

Not available

18

Homelite D09365

LINE-Replacement
(Superseded to AC09365)

$

$

Not available
