UT-20778 - Homelite EZ Reach String Trimmer Carburetor - Fuel Tank Parts Diagram

EZ Reach String Trimmer

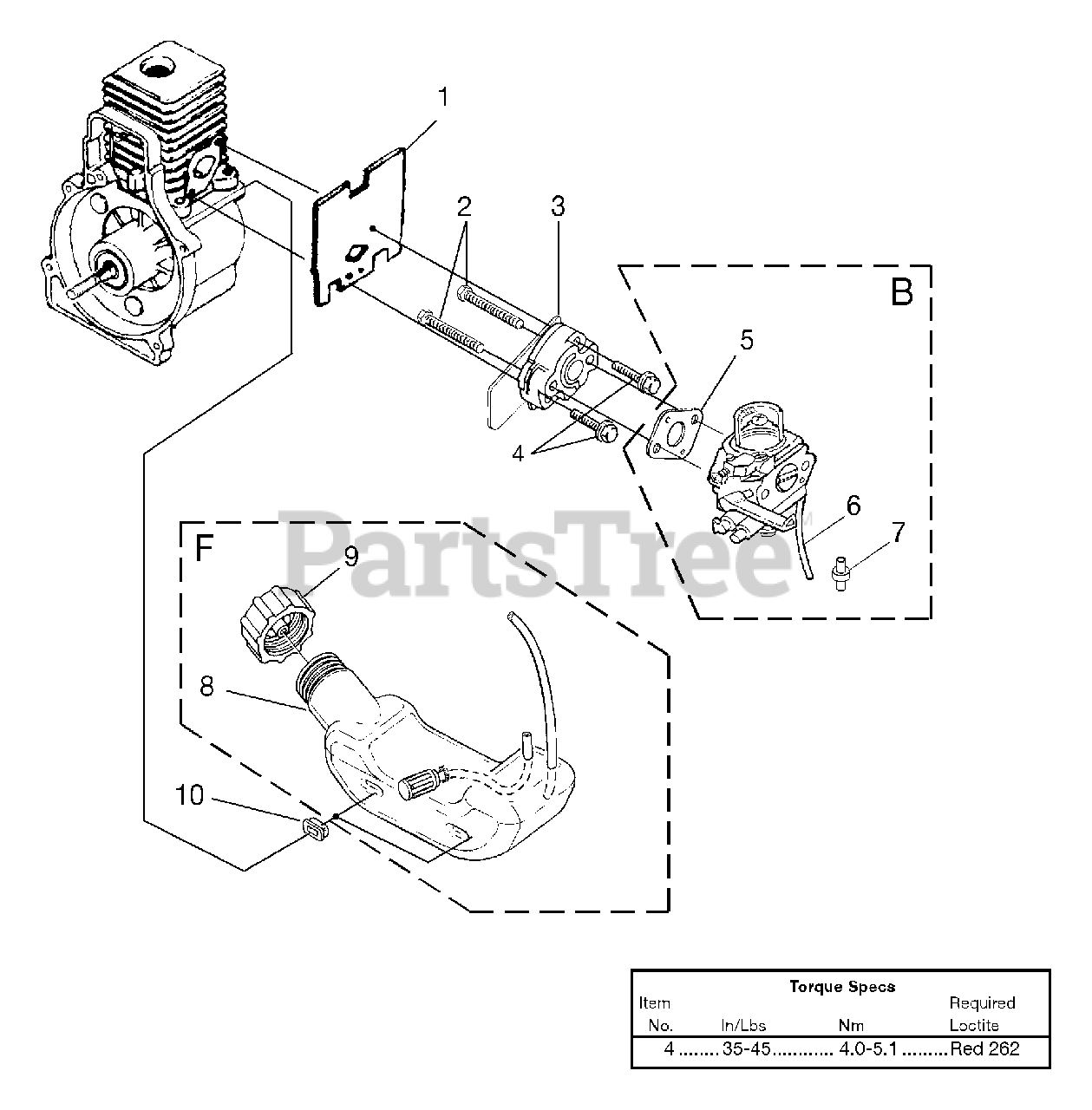

Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

2

Homelite 04474

SCREW-Machine (10-24 X 2 1/4")

$

$

Not available

3

Homelite 98768A

HEAT DAM
(Superseded to 518070001)

$

$

Not available

4

Homelite 093221

SCREW-Sems (10-24 X 1")
(Superseded to 660662001)

$

$

Not available

B

Homelite 984534001

CARBURETOR KIT

Note: Includes Items B-7

$191.99

$

Usually ships in 3-7 days

0

5

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$

$

Not available

6

Homelite 0143910

TUBING-Rubber

$1.99

$

In Stock, Qty 5

0

7

Homelite 07332

FITTING-Inline Fuel
(Superseded to 985304001)

$1.99

$

In Stock, Qty 7

0

F

Homelite PA01624

FUEL TANK ASSY.
(Superseded to 308181004)

Note: Includes Items F-9

$

$

Not available

8

Homelite PA00116

FUEL TANK
(Superseded to 308181004)

$

$

Not available

9

Homelite A09116

FUEL CAP
(Superseded to 300758006)

$

$

Not available

10

Homelite 98792

BUMPER-Rubber

$1.49

$

Usually ships in 3-7 days

0
