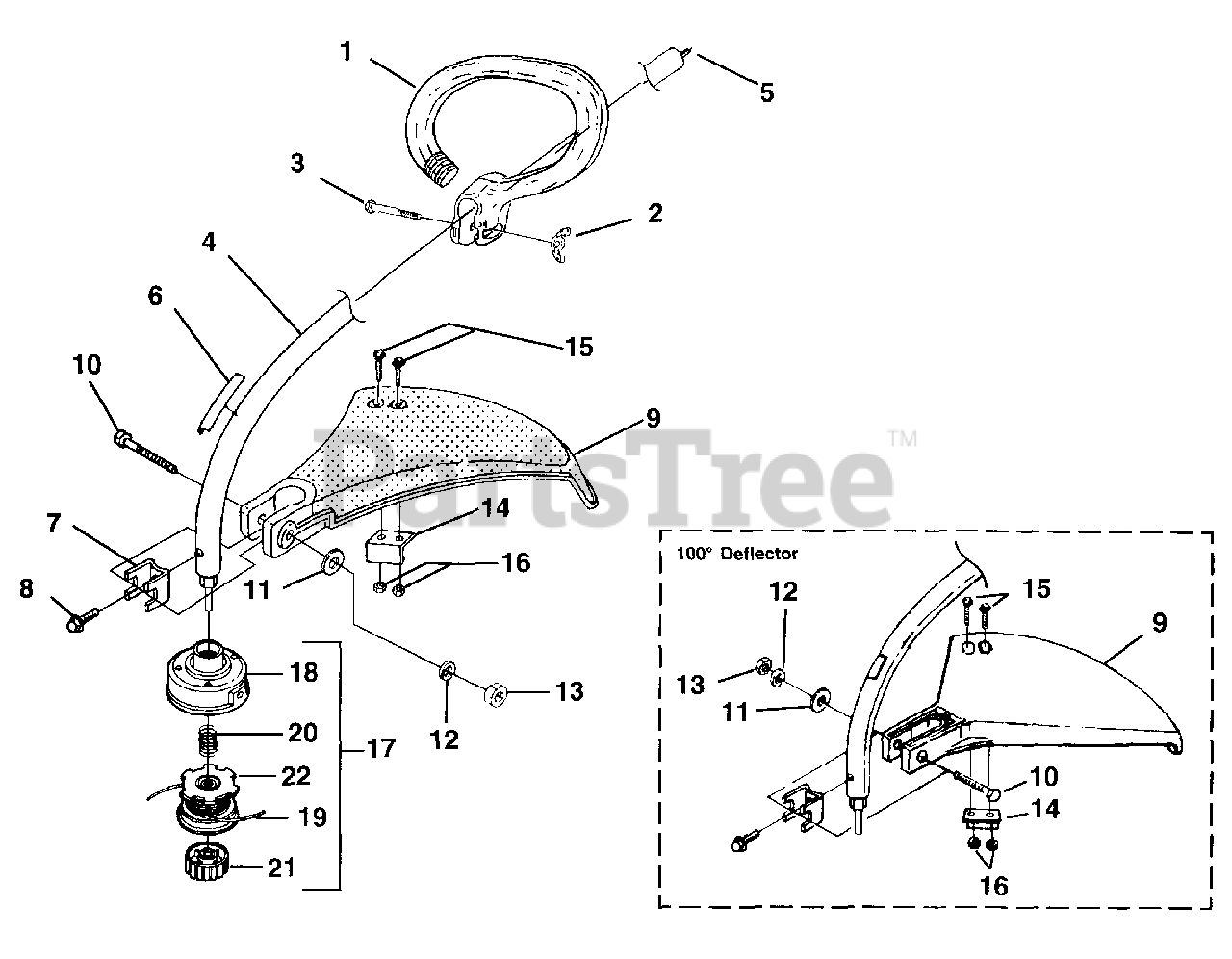

UT-20725 - Homelite String Trimmer, 25cc Shaft - Spool & String - Grass Deflector Parts Diagram

String Trimmer, 25cc

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP03010

HANDLE ASSY.-Front
(Superseded to UP03010A)

Note: (Incl. items 2 & 3)

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: (Torque Specs 5-25 In/Lbs [.6-2.8 Nm])

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd.

$4.99

$

Usually ships in 3-7 days

0

4

Homelite UP03178

DRIVESHAFT HOUSING ASSY.

Note: (Incl. items 5 - 8)

$

$

Currently unavailable

5

Homelite UP03031

SHAFT-Flexible
(Superseded to PS01502)

$

$

Not available

6

Homelite PS00038

DECAL-Warning
(Superseded to UP04352)

$

$

Not available

7

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

8

Homelite 88077

SCREW-Sems Hex Hd. (#10-24 X 3/8")
(Superseded to PS05243)

Note: (Torque Specs 15-25 In/Lbs [1.7-2.8 Nm])

$

$

Not available

9

Homelite A04705

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

Note: (Incl. items 10 - 16)

$

$

Not available

Homelite A04704

DEFLECTOR & BLADE KIT (100 Deg.)
(Superseded to UP06572)

Note: (Incl. items 10 - 16)

$

$

Not available

10

Homelite 80295

SCREW-Cap Hex Hd. (10-24 X 2")

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 84006

WASHER-Flat (1/4")

$

$

Not available

12

Homelite 83009

WASHER-Lock (1/4")

$8.49

$

Usually ships in 3-7 days

0

13

Homelite 81242

NUT-Hex

$1.99

$

Usually ships in 3-7 days

0

14

Homelite A03832

BLADE-Cut-Off
(Superseded to UP04119)

Note: (Incl. items 15 & 16)

$

$

Not available

15

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

Note: (Torque Specs 5-25 In/Lbs [.6-2.8 Nm])

$

$

Not available

16

Homelite 81208

NUT-Hex (10-24)

Note: (Torque Specs 30-40 In/Lbs [3.4-4.5 Nm])

$

$

Not available

17

Homelite DA04591A

STRINGHEAD-Complete
(Superseded to DA04591AA)

Note: (Incl. items 18 - 21)

$103.99

$

In Stock, only 1 left!

0

18

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

19

Homelite UP00147

SPOOL & STRING (.095" Line)
(Superseded to UP04661A)

Note: (Incl. item 20)

$103.99

$

In Stock, only 1 left!

0

20

Homelite 06713

SPRING-Compression

$1.99

$

In Stock, only 3 left!

0

21

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available

22

Homelite D06513

STRING - (.095) (113 ft.)

$

$

Not available
