UT-20724 - Homelite Easy Reach String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

Easy Reach String Trimmer

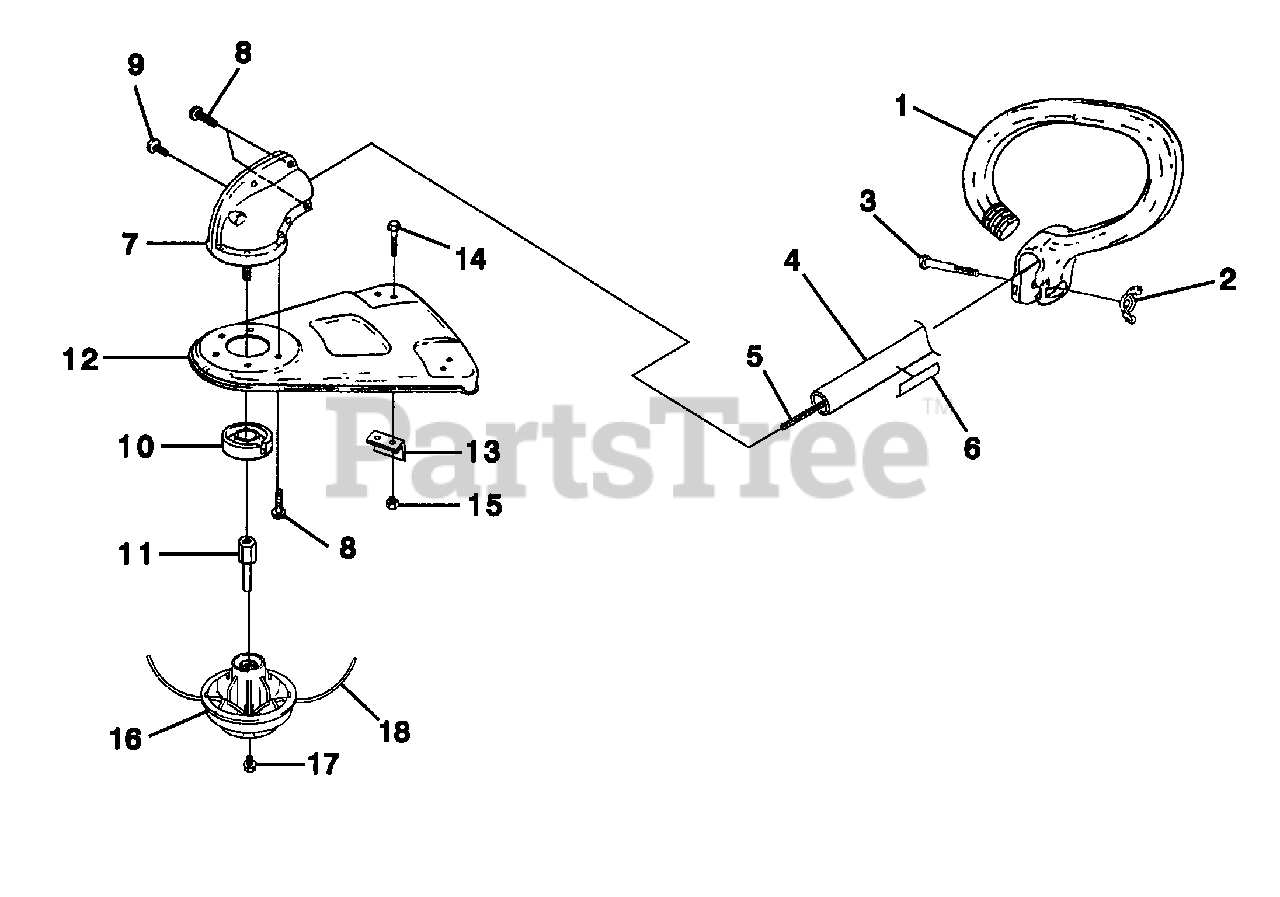

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite A07136

HANDLE-Anti-Vibe
(Superseded to UP06959A)

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Specs 5-25 In/Lbs .6-2.8 Nm

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 x 2")

$4.99

$

Usually ships in 3-7 days

0

4

Homelite UP00002

DRIVESHAFT HOUSING ASSY.

$

$

Currently unavailable

5

Homelite 98818

SHAFT-Flexible

$

$

Not available

6

Homelite 09353

DECAL

$4.49

$

Usually ships in 3-7 days

0

7

Homelite A04836D

GEARHEAD
(Superseded to UP06970)

$

$

Not available

8

Homelite 82459

Screw, Taptite Hex Hd. (10-24 x 1/2")

Note: Torque Specs 15-20 In/Lbs 1.7-2.3 Nm

$

$

Not available

9

Homelite 82298

Screw-Hex Hd. (10-24 x 5/8")
(Superseded to 82593)

Note: Torque Specs 40-50 In/Lbs 4.5-5.6 Nm

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 04168A

WASHER-Flanged
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

11

Homelite 04355

ADAPTER-Shaft

Note: Torque Specs 100-120 In/Lbs 11.3-13.6 Nm

$19.99

$

Usually ships in 3-7 days

0

12

Homelite A04683A

GRASS DEFLECTOR KIT

$

$

Not available

13

Homelite 07076

BLADE-Cut-off

$

$

Not available

14

Homelite 80869

SCREW-Mach.Hex Hd. (10-24 X 3/8")

$

$

Not available

15

Homelite 81208

NUT-Lock Hex (10-24)

Note: Torque Specs 30-40 In/Lbs 3.4-4.5 Nm

$

$

Not available

16

Homelite DA09364

STRINGHEAD-Pro-Cut w/line
(Superseded to DA09364A)

$

$

Not available

17

Homelite PS00082

SCREW-Stringhead Retainer

Note: Torque Specs 40-60 In/Lbs 4.5-6.8 Nm

$

$

Not available

18

Homelite D09365

LINE-Replacement
(Superseded to AC09365)

$

$

Not available
