UT-20706 - Homelite TrimLite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

TrimLite String Trimmer

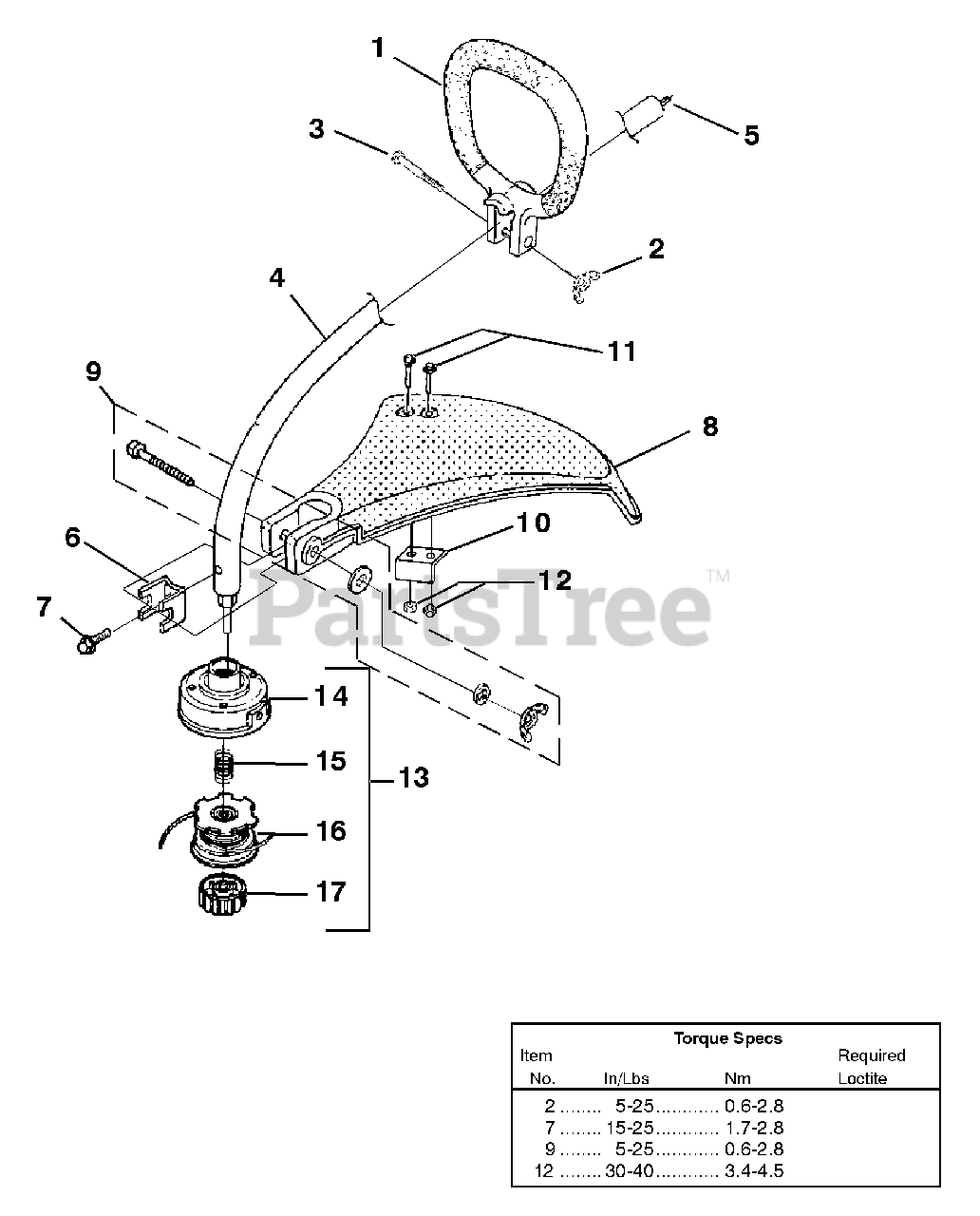

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP03010A

HANDLE ASSY.-Front

Note: Include Items 1-3

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd.

$4.99

$

Usually ships in 3-7 days

0

4

Homelite UP04555A

DRIVESHAFT HOUSING ASSY.

Note: Include Items 4-7

$

$

Not available

5

Homelite PS01502

SHAFT-Flexible
(Superseded to 986117001)

$

$

Not available

6

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

7

Homelite 983823001

SCREW-T.F. Hex Hd. (#10-24 X 3/8")
(Superseded to 660647001)

$1.99

$

In Stock, only 1 left!

0

8

Homelite UP06710A

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to T308744001)

Note: Include Items 8-12

$

$

Not available

9

Homelite PA00249

FASTENER Parts Kit

$

$

Not available

10

Homelite UP04119

BLADE-Cut-Off

$

$

Not available

11

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

12

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

13

Homelite UP04408

STRINGHEAD-Complete
(Superseded to UP04408A)

Note: Include Items 13-17

$

$

Not available

14

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

15

Homelite 06713

SPRING-Compression

$1.99

$

In Stock, only 3 left!

0

16

Homelite PA0387A

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

$

$

Not available

17

Homelite A98866A

RETAINER-Spool (RH Thread, Black)
(Superseded to 308042002)

$

$

Not available
