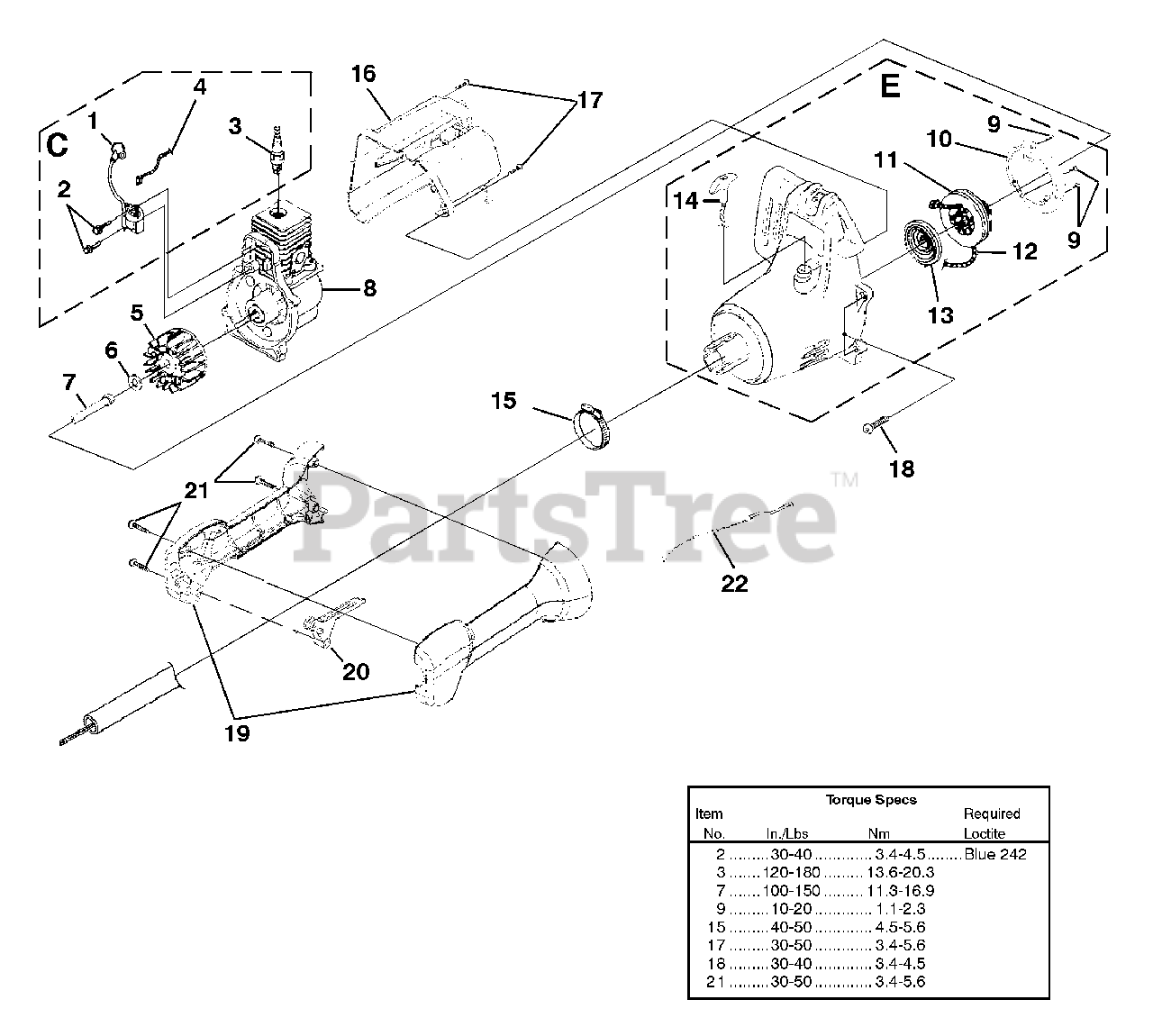

UT-20706 - Homelite TrimLite String Trimmer Ignition - Rotor - Starter Parts Diagram

TrimLite String Trimmer

Ignition - Rotor - Starter Parts Diagram

  • Title

C

Homelite 984873001

IGNITION KIT

Note: Includes Items 1-4

$

$

Not available

1

Homelite 94711C

IGNITION MODULE
(Superseded to 94711CS)

$

$

Not available

2

Homelite 82540

SCREW-Taptite (8-32 X 1")

$2.49

$

Usually ships in 3-7 days

0

3

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

4

Homelite A07238

LEAD-Electrical
(Superseded to 290218001)

$

$

Not available

5

Homelite UP03856A

ROTOR KIT

Note: Includes Items 5, 6

$

$

Not available

6

Homelite 95479A

WASHER-Flat

$

$

Not available

7

Homelite 98795A

CONNECTOR-Drive (.250)

$

$

Not available

8

Homelite UP00743A

SHORT BLOCK (See Engine Internal)

$

$

Not available

E

Homelite UP03092A

COMPLETE STARTER ASSEMBLY

Note: Includes Items E-14

$

$

Not available

9

Homelite 82543

SCREW-Taptite(8-16 X 1/2")

$

$

Not available

10

Homelite PS00326

BAFFLE-Air

$2.49

$

In Stock, only 1 left!

0

11

Homelite 98770A

PULLEY-Starter

$3.99

$

Usually ships in 3-7 days

0

12

Homelite 9789902

ROPE-Starter (42")
(Superseded to 900849002)

$1.99

$

In Stock, only 1 left!

0

13

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite PS00179

GRIP-Starter

$

$

Not available

15

Homelite PS01611

CLAMP
(Superseded to 638012002)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 09210

HOUSING-Rear Engine

$

$

Not available

17

Homelite 82537

SCREW-Taptite (10-14 X 7/8")

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 82538

SCREW-Taptite (10-24 X 3/4")

$1.99

$

Usually ships in 3-7 days

0

19

Homelite UP03091A

CONTROL HANDLE ASSY.

Note: Includes Items 19-21

$

$

Not available

20

Homelite 088331

TRIGGER-Throttle

$

$

Not available

21

Homelite 82537

SCREW-Taptite (10-14 X 7/8")

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 0883202

CABLE-Throttle
(Superseded to 308055002)

$2.99

$

In Stock, only 4 left!

0
