UT-20683 - Homelite Touchstart String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

Touchstart String Trimmer

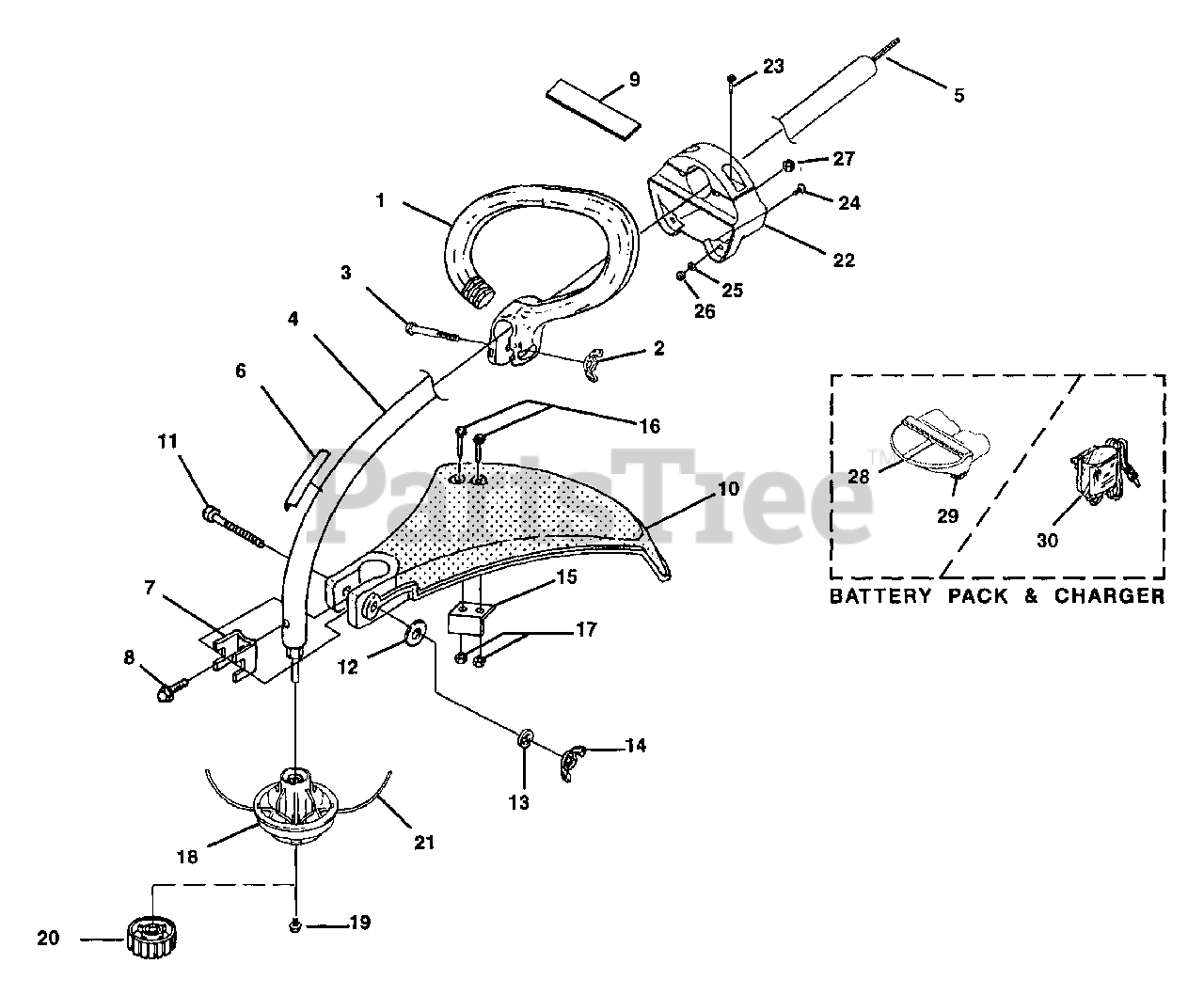

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite A07136

HANDLE - Anti-Vibe
(Superseded to UP06959A)

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Specs: 5-25 In/Lbs; .6-28 Nm

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd.

$4.99

$

Usually ships in 3-7 days

0

4

Homelite UP00415

DRIVESHAFT HOUSING ASSY.
(Superseded to UP03005A)

$

$

Not available

5

Homelite 07486

SHAFT-Flexible

$

$

Not available

6

Homelite PS00169

DECAL-Warning

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

8

Homelite 88077

SCREW-Sems Hex Hd. (#10-24 X 3/8")
(Superseded to PS05243)

Note: Torque Specs: 15-25 In/Lbs; 1.7-2.8 Nm

$

$

Not available

9

Homelite PS00174

GROMMET, Isolator

$

$

Not available

10

Homelite A04705

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

$

$

Not available

11

Homelite 80295

SCREW-Cap Hex Hd. (10-24 X 2")

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 84006

WASHER-Flat (1/4")

$

$

Not available

13

Homelite 83009

WASHER-Lock (1/4")

$8.49

$

Usually ships in 3-7 days

0

14

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Specs: 5-25 In/Lbs; .6-2.8 Nm

$

$

Not available

15

Homelite A03832

BLADE-Cut-Off
(Superseded to UP04119)

$

$

Not available

16

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

Note: Torque Specs: 15-20 In/Lbs; 1.7-2.3 Nm

$

$

Not available

17

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

18

Homelite DA09364

STRINGHEAD-Pro-Cut w/line
(Superseded to DA09364A)

$

$

Not available

19

Homelite PS00082

SCREW-Stringhead Retainer

Note: Torque Specs: 40-60 In/Lbs; 4.5-6.8 Nm

$

$

Not available

20

Homelite DA98866A

RETAINER-Spool (RH Thread, Black)
(Superseded to UP04273A)

Note: (Optional)

$

$

Not available

21

Homelite D09365

LINE-Replacement
(Superseded to AC09365)

$

$

Not available

22

Homelite UP00402

BATTERY ENCLOSURE

$

$

Not available

23

Homelite PS00210

SCREW

Note: Torque Specs: 35-45 In/Lbs; 4.0-5.1 Nm

$

$

Not available

24

Homelite 06973

SCREW

Note: Torque Specs: 35-45 In/Lbs; 4.0-5.1 Nm

$7.49

$

Usually ships in 3-7 days

0

25

Homelite 841031

WASHER

$

$

Not available

26

Homelite 06974

NUT-Spanner

$

$

Not available

27

Homelite 81208

NUT

$

$

Not available

28

Homelite DA06965A

BATTERY PACK

$

$

Not available

29

Homelite A06971

KNOB-Battery Pack

Note: Torque Specs: 10-15 In/Lbs; 1.1-1.7 Nm

$

$

Not available

30

Homelite D06550

BATTERY CHARGER

$55.99

$

Usually ships in 3-7 days

0
