UT-20683 - Homelite Touchstart String Trimmer Ignition - Rotor - Starter - Clutch Parts Diagram

Touchstart String Trimmer

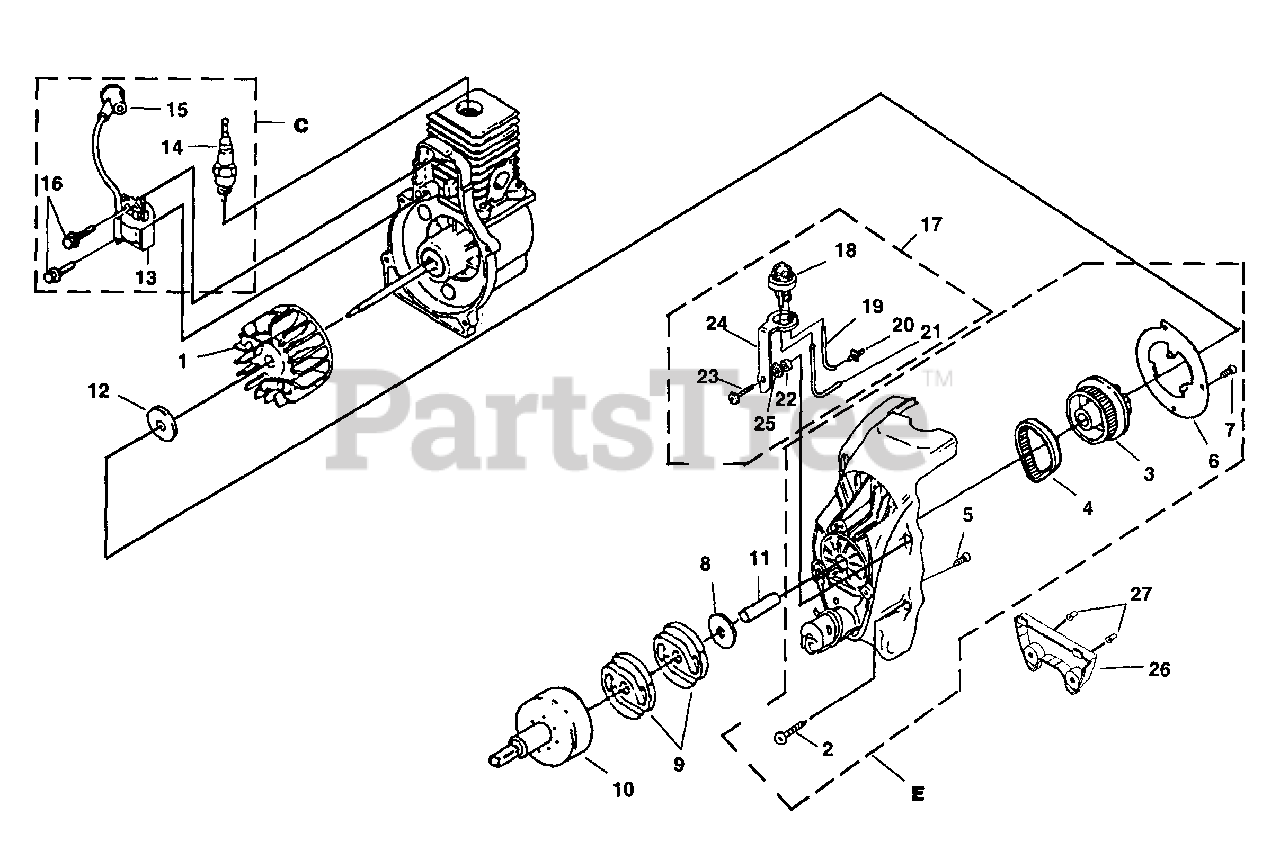

Ignition - Rotor - Starter - Clutch Parts Diagram

  • Title

1

Homelite A04158S

ROTOR w/Starter Pawls
(Superseded to UP03856A)

$

$

Not available

E

Homelite A07168B

COMPLETE STARTER ASSEMBLY

$

$

Currently unavailable

2

Homelite 82538

SCREW-Thread Form. (10-24 X 3/4")

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 06533

PULLEY-Starter

$4.99

$

Usually ships in 3-7 days

0

4

Homelite 06534

BELT-Starter

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 82540

SCREW-Thread Forming (8-32 X 1")

Note: Torque Specs: 10-20 In/Lbs; 1.1-2.3 Nm

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 06723A

BAFFLE

$4.49

$

Usually ships in 3-7 days

0

7

Homelite 82543

SCREW-Plastite (8-16 X 1/2")

Note: Torque Specs: 15-25 In/Lbs; 1.7-2.8 Nm

$

$

Not available

8

Homelite 98929A

WASHER-Flat
(Superseded to 638090001)

$1.99

$

In Stock, only 4 left!

0

9

Homelite 00242

CLUTCH

Note: Torque Specs: 90-110 In/Lbs; 10.2-12.4 Nm

$

$

Not available

10

Homelite A02727

CONNECTOR & DRUM
(Superseded to UP04104)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

11

Homelite 035662A

SPACER
(Superseded to PS04300)

$

$

Not available

12

Homelite 95479A

WASHER

$

$

Not available

C

Homelite A07174

IGNITION KIT
(Superseded to A07174A)

$

$

Not available

13

Homelite 06504A

MODULE-Ignition
(Superseded to UP05516)

$

$

Not available

14

Homelite 96169S

SPARK PLUG
(Superseded to UP03883)

Note: Torque Specs: 120-180 In/Lbs; 13.6-20.3 Nm

$3.49

$

In Stock, only 3 left!

0

15

Homelite A33055

TERMINAL & COVER

$

$

Not available

16

Homelite 82540

SCREW-Taptite (8-32 x 1")

Note: Torque Specs: 30-40 In/Lbs; 3.4-4.5 Nm

$2.49

$

Usually ships in 3-7 days

0

17

Homelite A07927A

START ASSIST KIT

$

$

Not available

18

Homelite 07916

BULB-Primer
(Superseded to A07927A)

$

$

Not available

19

Homelite 0143908

LINE-Fuel (2.0") (5,0 cm)

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 02067

FITTING-Fuel Line

$

$

Not available

21

Homelite 0143910

LINE-Fuel (2.5") (6,5 cm)

$1.99

$

In Stock, Qty 5

0

22

Homelite 07915

SPACER
(Superseded to A07927A)

$

$

Not available

23

Homelite 825491

SCREW - (10-24 x 1.00")
(Superseded to UP05542)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

24

Homelite 07913

BRACKET
(Superseded to A07927A)

$

$

Not available

25

Homelite 08218

WASHER-External Lock

$

$

Not available

26

Homelite UP00401

COVER ASSEMBLY

$

$

Not available

27

Homelite A06971

KNOB

Note: Torque Specs: 10 15 In/Lbs; 1.1-1.7 Nm

$

$

Not available
