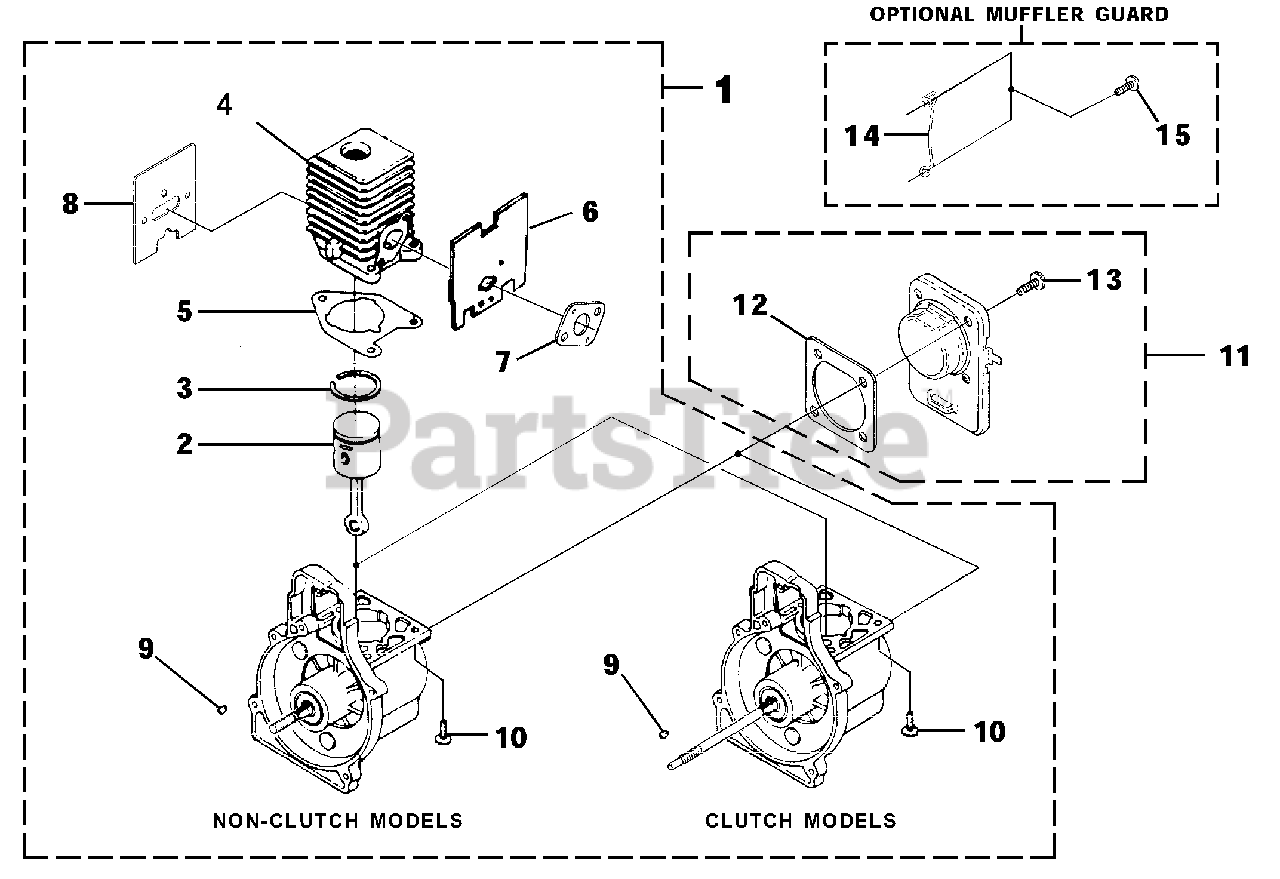

UT-20681 - Homelite Expand-it String Trimmer Engine Internal Parts Diagram

Expand-it String Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite UP00743

SHORT BLOCK (Non-Clutch)
(Superseded to UP00743A)

Note: (Includes items 2 - 10)

$

$

Not available

1

Homelite UP00017

SHORT BLOCK (Clutch)
(Superseded to UP03123)

Note: (Includes items 2 - 10)

$

$

Not available

2

Homelite UP00016

PISTON & ROD ASSY.
(Superseded to UP00768)

Note: (Includes item 3)

$

$

Not available

3

Homelite PS01359

RING-Piston
(Superseded to 678001002)

$

$

Not available

4

Homelite UP07145

CYLINDER ASSY.
(Superseded to UP07145A)

Note: (Includes items 5 - 8)

$74.99

$

In Stock, only 1 left!

0

5

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

6

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

7

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$

$

Not available

8

Homelite 09343

GASKET-Muffler

$

$

Not available

9

Homelite 69250

KEY-Woodruff

$

$

Not available

10

Homelite 880841

SCREW-Sems (12-24 X 3/4")
(Superseded to UP04345)

Note: Torque Spec 55 - 65 in/lbs (6.2 - 7.3 Nm)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite UP00019

CRANKCASE COVER ASSEMBLY
(Superseded to UP00019A)

Note: (Includes items 12 and 13)

$

$

Not available

12

Homelite 08661

GASKET-Crankcase Cover

Note: (Also included w/short block)

$

$

Not available

13

Homelite 880851

SCREW-Sems (10-24 X 1/2")
(Superseded to PS01565)

Note: Torque Spec 35 - 45 in/lbs (4.0 - 5.1 Nm)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite UP00027

MUFFLER GUARD
(Superseded to UP04099)

Note: (Includes item 15)

$

$

Not available

15

Homelite 82541

SCREW-Thread Forming (10-14 X 1/2")

Note: Torque Spec 5 - 20 in/lbs (.6 - 2.3 Nm)

$1.99

$

In Stock, only 3 left!

0
