UT-20681-A - Homelite Expand-it String Trimmer Edger Attachment Parts Diagram

Expand-it String Trimmer

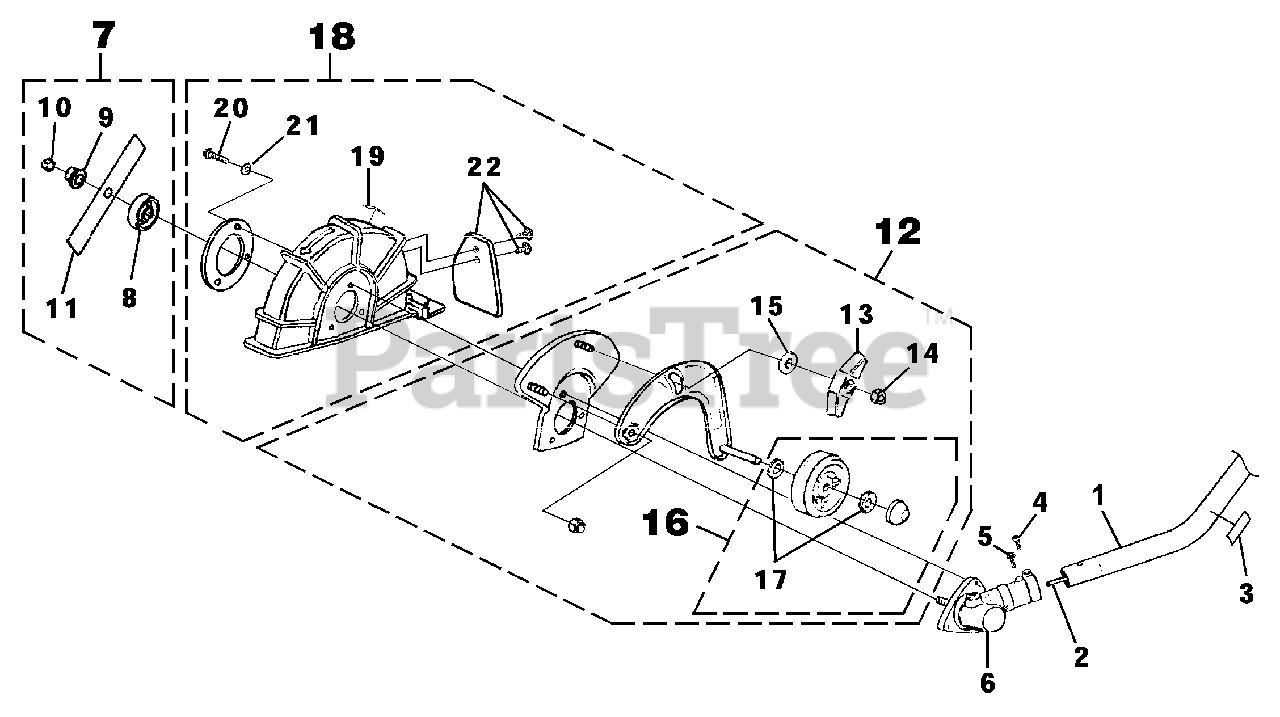

Edger Attachment Parts Diagram

  • Title

1

Homelite A07931

DRIVESHAFT HOUSING
(Superseded to A07931A)

Note: (Includes items 2 and 3)

$

$

Not available

2

Homelite A07679

SHAFT-Flexible

$12.99

$

Usually ships in 3-7 days

0

3

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

4

Homelite 82586

SCREW-Cap Socket Hd. (1/4-20 X 7/8")

Note: Torque Spec 40 - 50 in/lbs (4.5 - 5.6 Nm)

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 88049

SCREW-Sems Hex Hd. (10-24 X 1/2")

Note: Torque Spec 40 - 50 in/lbs (4.5 - 5.6 Nm)

$

$

Not available

6

Homelite A04151

GEAR HEAD
(Superseded to UP06866A)

$111.99

$

Usually ships in 3-7 days

0

7

Homelite A06281

BLADE KIT
(Superseded to UP06879)

Note: (Includes items 8 - 11)

$24.99

$

Usually ships in 3-7 days

0

8

Homelite 04168A

WASHER-Flanged
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 04409

WASHER-Flanged (Lower)

$3.99

$

In Stock, only 1 left!

0

10

Homelite 04277

NUT-Lock
(Superseded to 678018001)

Note: Torque Spec 100 - 120 in/lbs (11.3 - 13.6 Nm)

$

$

Not available

11

Homelite D04359A

BLADE (2" X 9") (Qty.-2)

$

$

Not available

12

Homelite A06280

SUPPORT ARM ASSEMBLY
(Superseded to UP06881)

Note: (Includes items 13 - 17)

$64.99

$

Usually ships in 3-7 days

0

13

Homelite 06364

KNOB-Adjusting
(Superseded to UP04132)

$

$

Not available

14

Homelite 81162

NUT-Hex

$

$

Not available

15

Homelite 84010

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

16

Homelite A06279

WHEEL KIT
(Superseded to UP06882)

Note: (Includes item 17)

$

$

Not available

17

Homelite 84010

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

18

Homelite A06277A

GUARD KIT
(Superseded to UP06738A)

Note: (Includes items 19 - 22)

$

$

Not available

19

Homelite 03871A

DECAL-Warning

$

$

Not available

20

Homelite 82298

SCREW-Hex Hd. (10-24 X 5/8")
(Superseded to 82593)

Note: Torque Spec 40 - 50 in/lbs (4.5 - 5.6 Nm)

$4.99

$

Usually ships in 3-7 days

0

21

Homelite 83046

WASHER-Lock (#10)

$

$

Not available

22

Homelite A06296

FLAP KIT
(Superseded to UP06883)

$

$

Not available
