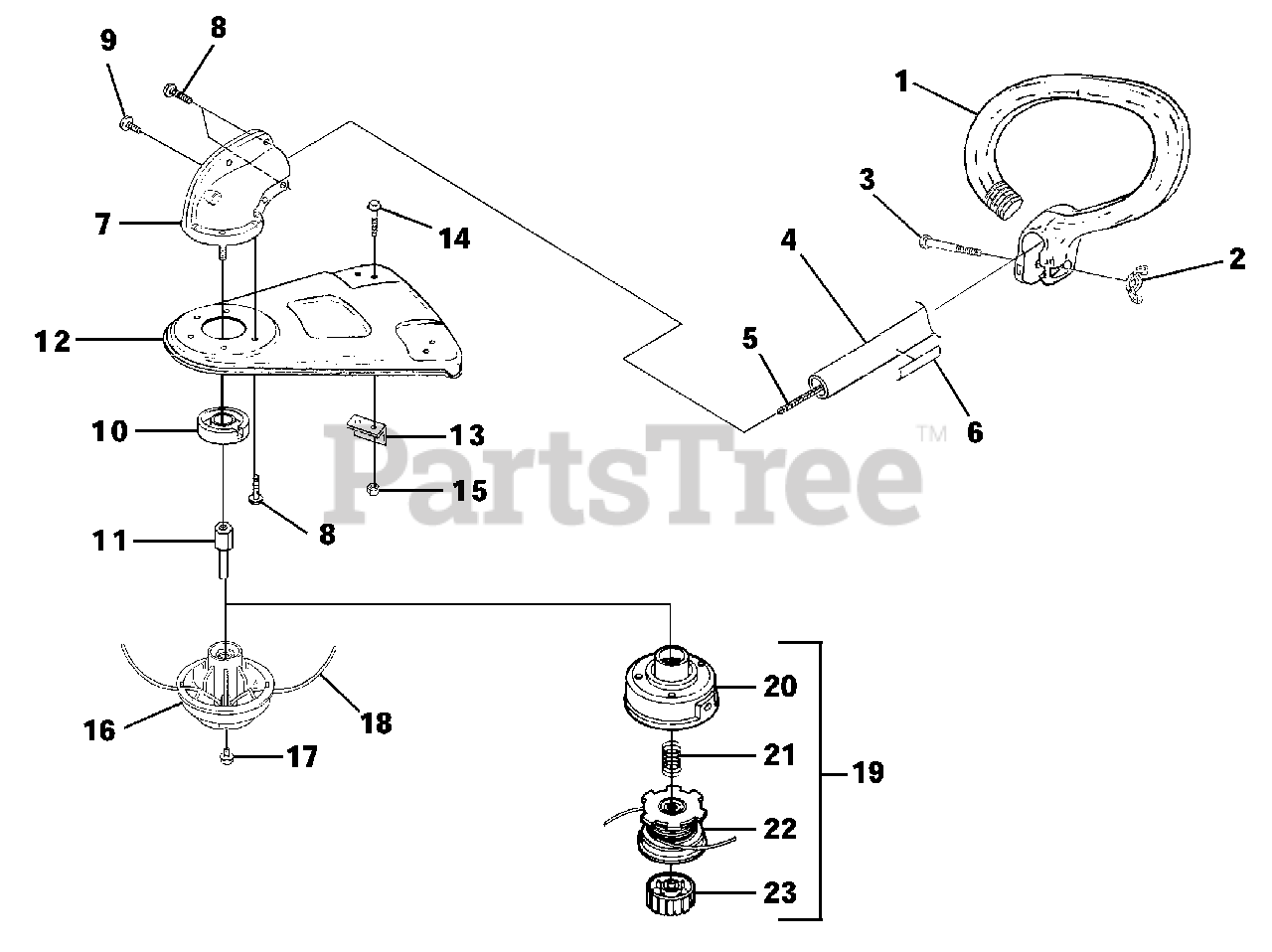

UT-20680-A - Homelite Easy Reach String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

Easy Reach String Trimmer

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite A07136

HANDLE-Anti-Vibe
(Superseded to UP06959A)

Note: (Includes items 2 and 3)

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Spec 5 - 25 in/lbs (.6 - 2.8 Nm)

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 x 2")

$4.99

$

Usually ships in 3-7 days

0

4

Homelite UP02968

DRIVESHAFT HOUSING ASSY.
(Superseded to UP03198A)

Note: (Includes items 5 and 6)

$

$

Not available

5

Homelite 98818

SHAFT-Flexible

$

$

Not available

6

Homelite PS00038

DECAL
(Superseded to UP04352)

$

$

Not available

7

Homelite A04836D

GEARHEAD
(Superseded to UP06970)

Note: (Includes items 8 and 9)

$

$

Not available

8

Homelite 82459

Screw, Taptite Hex Hd. (10-24 x 1/2")

Note: Torque Spec 15 - 20 in/lbs (1.7 - 2.3 Nm)

$

$

Not available

9

Homelite 82298

Screw-Hex Hd. (10-24 x 5/8")
(Superseded to 82593)

Note: Torque Spec 40 - 50 in/lbs (4.5 - 5.6 Nm)

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 04168A

WASHER-Flanged
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

11

Homelite 04355

ADAPTER-Shaft

Note: Torque Spec 100 - 120 in/lbs (11.3 - 13.6 Nm)

$19.99

$

Usually ships in 3-7 days

0

12

Homelite A04683A

GRASS DEFLECTOR KIT

Note: (Includes items 13 - 15)

$

$

Not available

13

Homelite 07076

BLADE-Cut-off

$

$

Not available

14

Homelite 80869

SCREW-Mach.Hex Hd. (10-24 X 3/8")

$

$

Not available

15

Homelite 81208

NUT-Lock Hex (10-24)

Note: Torque Spec 30 - 40 in/lbs (3.4 - 4.5 Nm)

$

$

Not available

16

Homelite DA09364

STRINGHEAD-Pro-Cut w/line
(Superseded to DA09364A)

Note: (Includes item 17)

$

$

Not available

17

Homelite PS00082

SCREW-Stringhead Retainer

Note: Torque Spec 40 - 60 in/lbs (4.5 - 6.8 Nm)

$

$

Not available

18

Homelite D09365

LINE-Replacement
(Superseded to AC09365)

$

$

Not available

19

Homelite DA04591A

STRINGHEAD COMPLETE
(Superseded to DA04591AA)

Note: (Includes items 20 - 23); Phantom SS

$103.99

$

In Stock, only 1 left!

0

20

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

Note: Phantom SS

$

$

Not available

21

Homelite B06713

SPRING-Compression
(Superseded to 06713)

Note: Phantom SS

$1.99

$

In Stock, only 3 left!

0

22

Homelite UP00147

SPOOL & STRING (.095 Line)
(Superseded to UP04661A)

Note: Phantom SS

$103.99

$

In Stock, only 1 left!

0

23

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

Note: Phantom SS

$

$

Not available
