UT-20677-A - Homelite TrimLite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

TrimLite String Trimmer

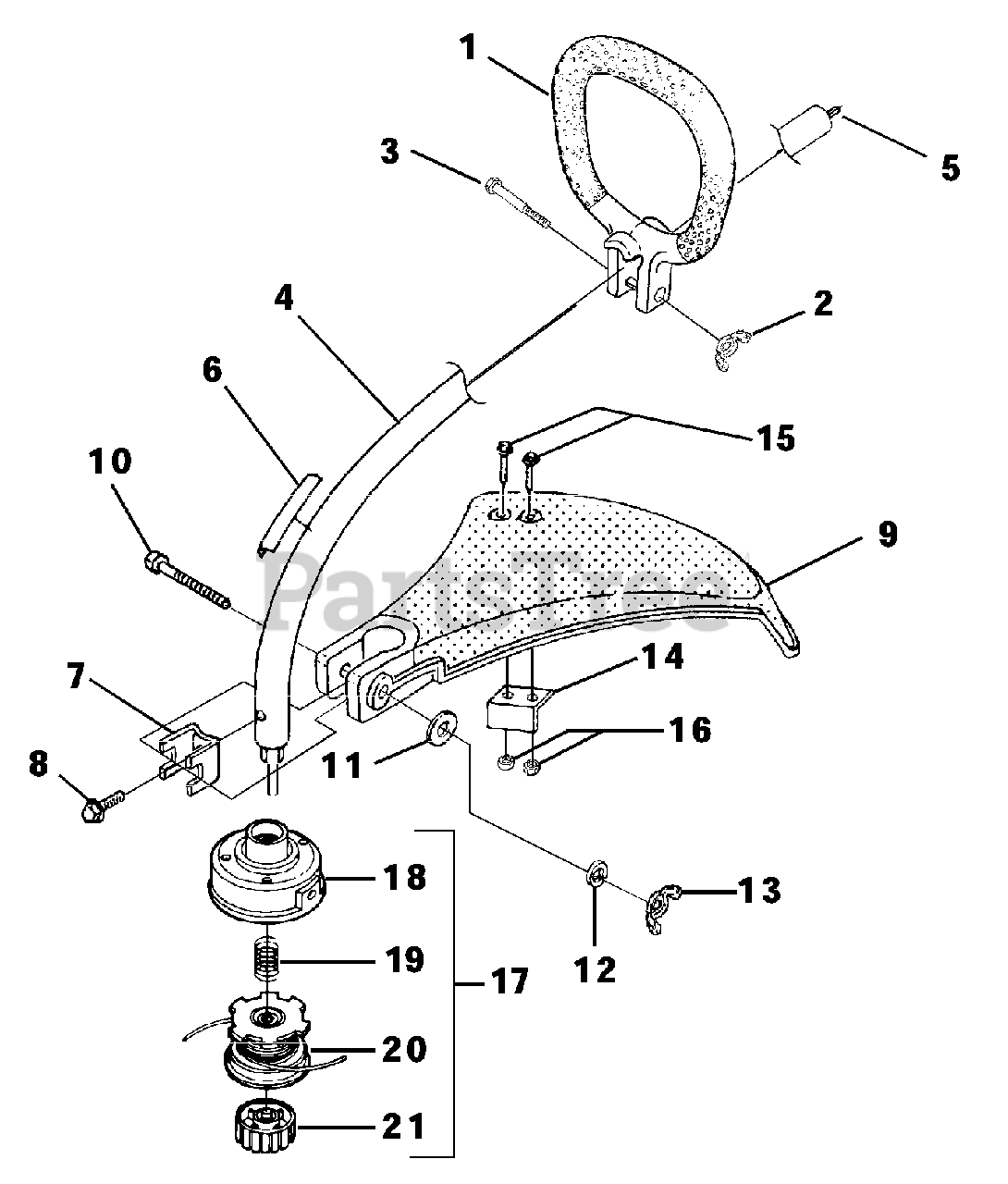

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title
1

Homelite UP03010

HANDLE ASSY.-Front
(Superseded to UP03010A)

Note: (Includes items 2 and 3)

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Spec 5 - 25 in/lbs (.6 - 2.8 Nm)

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd.

$4.99

$

Usually ships in 3-7 days

0

4

Homelite UP00710

DRIVESHAFT HOUSING ASSY.
(Superseded to UP00710A)

Note: (Includes items 5 - 8)

$

$

Not available

5

Homelite 0919401

SHAFT-Flexible
(Superseded to UP00710)

Note: (UT20677)

$

$

Not available

Homelite UP03031

SHAFT-Flexible
(Superseded to PS01502)

$

$

Not available

6

Homelite PS00038

DECAL-Warning
(Superseded to UP04352)

$

$

Not available

7

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

8

Homelite 88077

SCREW-Sems Hex Hd. (#10-24 X 3/8")
(Superseded to PS05243)

Note: Torque Spec 15 - 25 in/lbs (1.7 - 2.8 Nm)

$

$

Not available

9

Homelite A04705

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

Note: (Includes items 10 - 16)

$

$

Not available

10

Homelite 80295

SCREW-Cap Hex Hd. (10-24 X 2")

$4.99

$

Usually ships in 3-7 days

0

11

Homelite 84006

WASHER-Flat (1/4")

$

$

Not available

12

Homelite 83009

WASHER-Lock (1/4")

$8.49

$

Usually ships in 3-7 days

0

13

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Spec 5 - 25 in/lbs (.6 - 2.8 Nm)

$

$

Not available

14

Homelite A03832

BLADE-Cut-Off
(Superseded to UP04119)

Note: (Includes items 15 and 16)

$

$

Not available

15

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

16

Homelite 81208

NUT-Hex (10-24)

Note: Torque Spec 30 - 40 in/lbs (3.4 - 4.5 Nm)

$

$

Not available

17

Homelite DA03001A

STRINGHEAD-Complete
(Superseded to UP04408A)

Note: (Includes items 18 - 21)

$

$

Not available

18

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

19

Homelite B06713

SPRING-Compression
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

20

Homelite UP00145

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

$

$

Not available

21

Homelite DA98866A

RETAINER-Spool (R.H.Thread, Black)
(Superseded to UP04273A)

$

$

Not available
