UT-20043-A - Homelite EZ Reach String Trimmer, 25cc String Trimmer -Figure B Parts Diagram

EZ Reach String Trimmer, 25cc

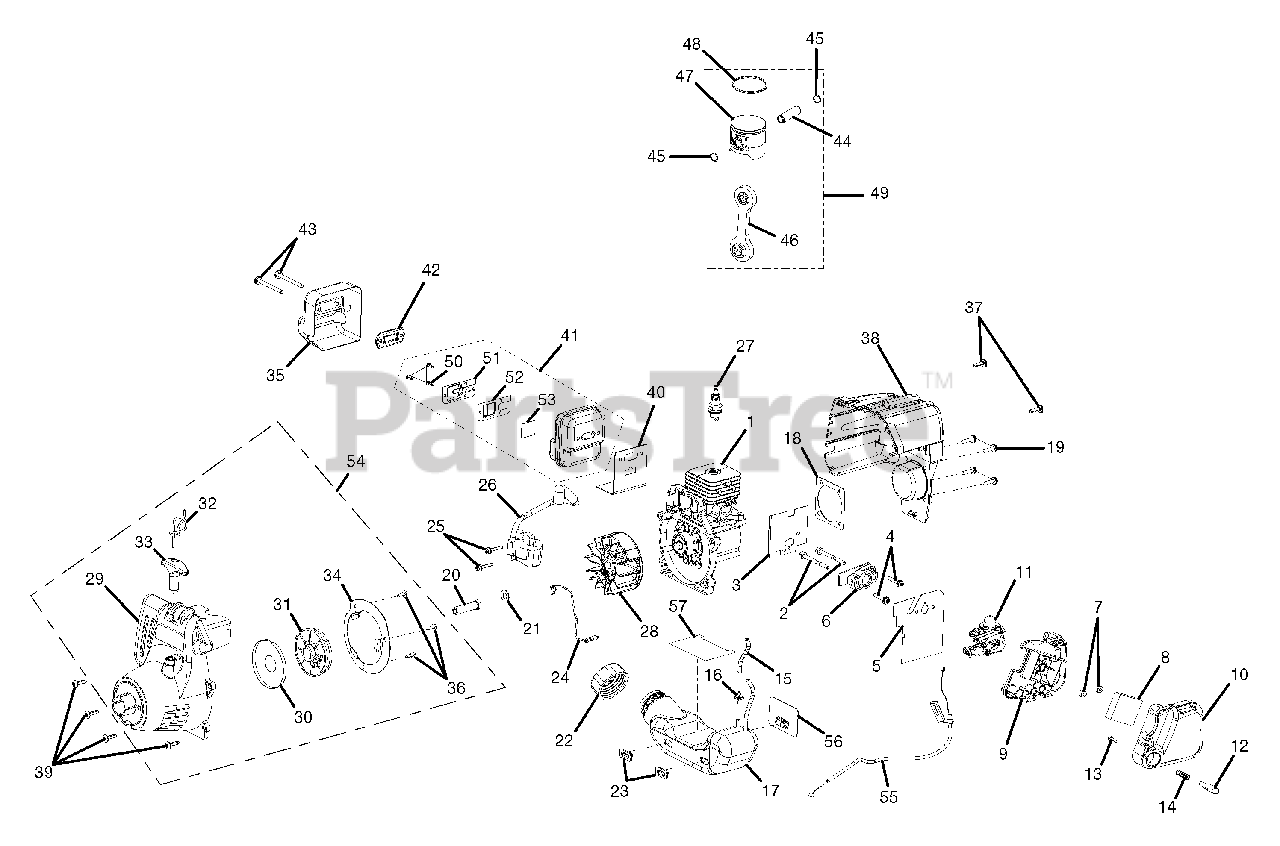

String Trimmer -Figure B Parts Diagram

  • Title

1

Homelite 985394001

SHORT BLOCK ASSEMBLY (984772001)

$

$

Not available

Homelite 984773001

SHORT BLOCK ASSEMBLY (984772003 & 004)

$

$

Not available

2

Homelite 04474

CARBURETOR BOLTS

$

$

Not available

3

Homelite 984762001

INTAKE GASKET

$1.49

$

In Stock, only 3 left!

0

4

Homelite 093221

SCREW (10-24 X 1-1/16 in. PAN HD.)
(Superseded to 660662001)

Note: Purchase Locally

$

$

Not available

5

Homelite 9074001

CARBURETOR GASKET

$

$

Not available

6

Homelite 98768A

HEAT DAM
(Superseded to 518070001)

$

$

Not available

7

Homelite 81208

LOCK NUT (10-24)

Note: Purchase Locally

$

$

Not available

8

Homelite 98760

AIR FILTER

$

$

Not available

9

Homelite PS02113

AIR FILTER BOX
(Superseded to 518094001)

$

$

Not available

10

Homelite PS02156

AIR BOX COVER
(Superseded to 518096002)

$

$

Not available

11

Homelite 985624001

CABURETOR ASSEMBLY
(Superseded to 308054003)

$

$

Not available

12

Homelite 06618A

BUTTON SWITCH

$

$

Not available

13

Homelite 82513

SCREW, (6-19 x 1/2 in. T.F.)

$2.49

$

In Stock, Qty 5

0

14

Homelite 95020A

COMPRESSION SPRING

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 0143910

RUBBER TUBING

$1.99

$

In Stock, Qty 5

0

16

Homelite 985304001

INLINE FUEL FITTING

$1.99

$

In Stock, Qty 7

0

17

Homelite PA00116

FUEL TANK
(Superseded to 308181004)

$

$

Not available

18

Homelite 06443A

CRANK CASE COVER GASKET
(Superseded to 900954001)

$

$

Not available

19

Homelite 984812001

SCREW (10-24 X 3/4 in. PAN HD. TORX W/LW)

Note: Purchase Locally

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 98795A

DRIVE CONNECTOR

$

$

Not available

21

Homelite PS84065

FLAT WASHER

$

$

Not available

22

Homelite 985210001

FUEL CAP ASSEMBLY
(Superseded to 300758006)

$

$

Not available

23

Homelite 98792

BUMPER (POWER HEAD 984772001)(POWER HEAD 984772003 & 004 QTY 2)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite A07238

LEAD W/TERMINALS
(Superseded to 290218001)

$

$

Not available

25

Homelite 82540

SCREW (8-32 X 1 in. THREAD FORMING)

Note: Purchase Locally

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 94711C

IGNITION MODULE
(Superseded to 94711CS)

Note: (USED WITH 984772001 POWER HEAD)

$

$

Not available

Homelite 4306401

IGNITION MODULE
(Superseded to 850080001)

Note: (USED WITH 984772003 & 004, POWER HEAD)

$

$

Not available

27

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

28

Homelite 984531001

ROTOR AND PAWL ASSEMBLY
(Superseded to 986153001)

$13.99

$

In Stock, only 1 left!

0

29

Homelite 3075303

STARTER HOUSING ASSEMBLY
(Superseded to PA00673)

$26.99

$

Usually ships in 3-7 days

0

30

Homelite A98773A

SPRING AND CONTAINER
(Superseded to 638033001)

$5.49

$

Usually ships in 3-7 days

0

31

Homelite 98770A

STARTER PULLEY

$3.99

$

Usually ships in 3-7 days

0

32

Homelite 9789902

STARTER ROPE
(Superseded to 900849002)

$1.99

$

In Stock, only 1 left!

0

33

Homelite PS06114

STARTER GRIP

$

$

Not available

34

Homelite PS00326

BAFFLE

$2.49

$

In Stock, only 1 left!

0

35

Homelite 984743001

HEAT SHIELD (CARB. UNIT)

$

$

Not available

36

Homelite 82543

SCREW (8-16 X 1/2 in. THREAD FORMING)

Note: Purchase Locally

$

$

Not available

37

Homelite 82563

SCREW (10-14 X 3/4 in.THREAD FORMING)

Note: Purchase Locally

$1.99

$

In Stock, Qty 6

0

38

Homelite 984740001

REAR HOUSING
(Superseded to 518106001)

$7.99

$

Usually ships in 3-7 days

0

39

Homelite 82538

SCREW (10-24 X 3/4 in.TRUSS HD)

Note: Purchase Locally

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 984760001

MUFFLER GASKET
(Superseded to 900994006)

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 985612001

NON-CATALYTIC MUFFLER ASSEMBLY

Note: (INCL KEY NO. 50 THRU 53) 984772001 & 003

$12.99

$

Usually ships in 3-7 days

0

Homelite 985611001

CATALYTIC MUFFLER ASSEMBLY

Note: (INCL KEY NO. 50 THRU 53) 984772004

$

$

Not available

42

Homelite 07185

REINFORCEMENT PLATE (EPA UNIT)

$

$

Not available

43

Homelite 88083

SCREW (10-24 X 2-3/16 in. TORX HD. )
(Superseded to PS03999)

Note: Purchase Locally

$

$

Not available

44

Homelite 00238A

PIN, PISTON

$

$

Not available

45

Homelite 6969102

CLIP RING

$

$

Not available

46

Homelite PA00190

CONNECTING ROD ASSEMBLY

$

$

Not available

47

Homelite 984228001

PISTON, 25cc
(Superseded to 308156002)

$

$

Not available

48

Homelite PS04468

PISTON RING
(Superseded to 678001003)

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 3081102

PISTON ASSEMBLY

Note: (INCLUDES KEY NO. 44-48)

$

$

Not available

50

Homelite 984759001

SCREW (6-20 x 1/4 in. PAN HD.)

Note: Purchase Locally

$

$

Not available

51

Homelite 984757001

OUTLET TUBE

$

$

Not available

52

Homelite 984755001

SCREEN PLATE

$

$

Not available

53

Homelite 984753001

SCREEN

$2.99

$

In Stock, only 1 left!

0

54

Homelite 985543001

COMPLETE STARTER ASSEMBLY
(Superseded to 300753005)

$

$

Not available

55

Homelite 0883202

THROTTLE CABLE W/HANGER
(Superseded to 308055002)

$2.99

$

In Stock, only 4 left!

0

56

Homelite 985767001

BUMPER
(Superseded to 570549001)

Note: (USED WITH 984772003 & 004, POWER HEAD)

$1.49

$

In Stock, only 1 left!

0

57

Homelite 900999002

GASKET

Note: (USED WITH 984772004, POWER HEAD)

$1.49

$

In Stock, only 2 left!

0
