UT-20026 - Homelite String Trimmer Figure A Parts Diagram

String Trimmer

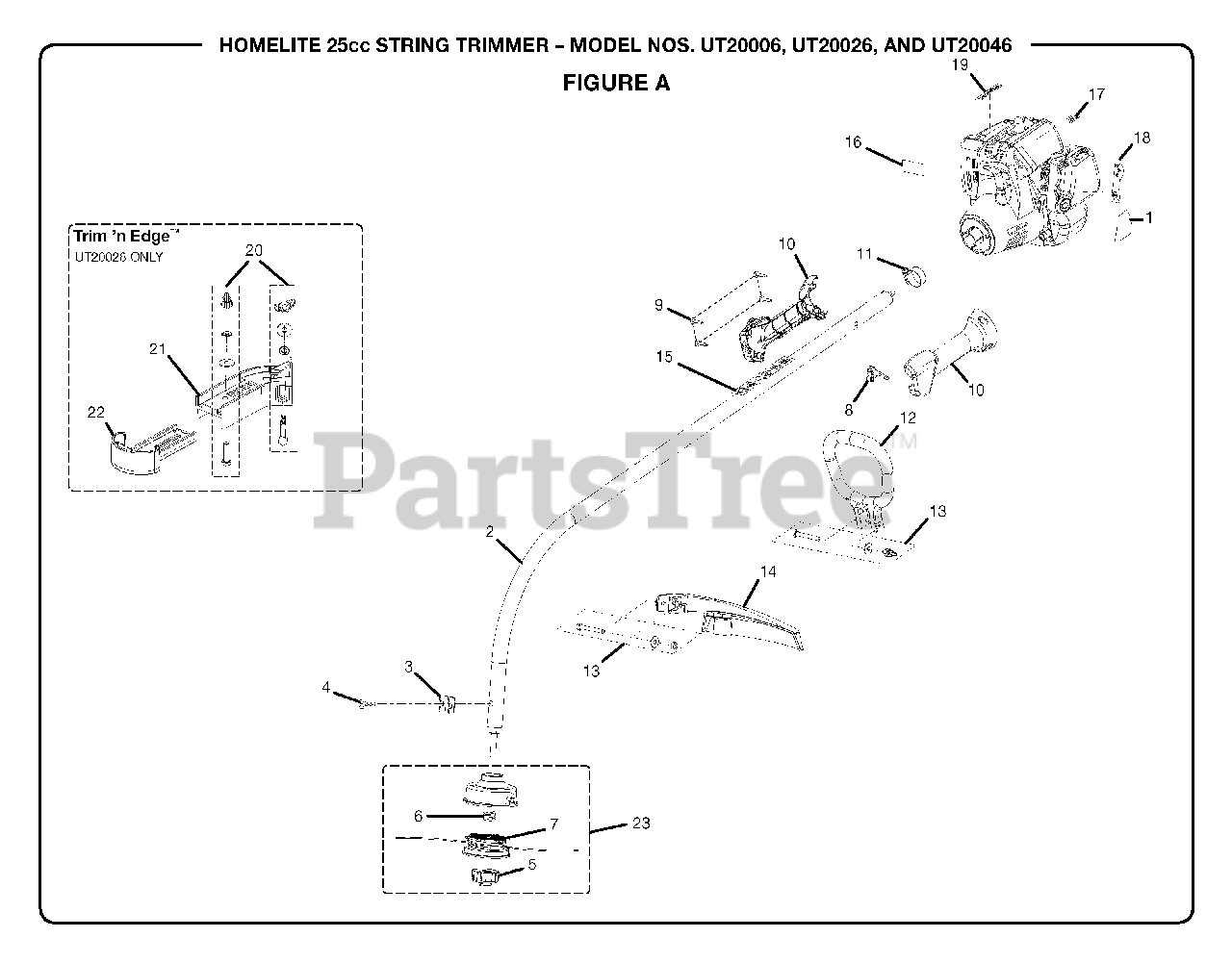

Figure A Parts Diagram

  • Title
1

Homelite 940299605

STARTING INSTRUCTION DECAL
(Superseded to 985184001)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 000998229

CURVED SHAFT ASSEMBLY

Note: (Trimlite(TM) & Trim 'n Edge(TM)ONLY); (INC. KEY NO. 16)

$49.99

$

Usually ships in 3-7 days

0

3

Homelite 638001001

CLAMP

Note: (Trimlite(TM) & Trim 'n Edge (TM)ONLY)

$1.99

$

In Stock, Qty 5

0

4

Homelite 660647001

SCREW (10-32 x 3/8 in.)

Note: May Be Purchased Locally; (Trimlite(TM) & Trim 'n Edge(TM)ONLY)

$1.99

$

In Stock, only 1 left!

0

5

Homelite 308042002

SPOOL RETAINER (RH)

Note: (Trimlite (TM) & Trim 'n Edge (TM) ONLY)

$

$

Not available

6

Homelite 678022001

COMPRESSION SPRING
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

7

Homelite 308044002

SPOOL W/LINE

$

$

Not available

8

$

$

Not available

9

Homelite 660674001

SCREW (10-14 x 7/8 in. TRUSS HD.)
(Superseded to 82537)

Note: May Be Purchased Locally

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 000998227

HANDLE GRIP ASSEMBLY

$

$

Not available

11

Homelite 638012002

BOOM CLAMP

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 518030001

FRONT HANDLE
(Superseded to 98822A)

$

$

Not available

13

Homelite 120650001

FASTENER PARTS KIT
(Superseded to PA00249)

$

$

Not available

14

Homelite 308052001

GRASS DEFLECTOR ASSEMBLY
(Superseded to T308744001)

Note: (UT20006 AND UT20026)

$

$

Not available

Homelite 308454001

GRASS SHIELD ASSEMBLY

Note: (UT20046)

$5.49

$

Usually ships in 3-7 days

0

15

Homelite 940230129

DECAL, WARNING/STARTING BOOM
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 940054123

DECAL, TRIMLITE LOGO
(Superseded to 983837001)

$

$

Not available

Homelite 940054122

DECAL, TRIM 'N EDGE
(Superseded to 983838001)

$

$

Not available

Homelite 940054121

DECAL, EASY REACH

$

$

Not available

17

Homelite 940299602

DECAL, PRIMER
(Superseded to 985595001)

$

$

Not available

18

Homelite 940299606

DECAL, CHOKE
(Superseded to 985589001)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 940299603

DECAL, HOMELITE

$

$

Not available

20

Homelite 120642001

FASTENER PARTS KIT
(Superseded to A09361)

Note: (Trim 'n Edge (TM) ONLY)

$1.49

$

In Stock, only 2 left!

0

21

Homelite 518014001

EDGER BASE
(Superseded to 09310)

Note: (Trim 'n Edge (TM) ONLY)

$6.99

$

In Stock, only 1 left!

0

22

Homelite 518015001

EDGER GUIDE
(Superseded to 09311)

Note: (Trim 'n Edge (TM) ONLY)

$4.49

$

In Stock, only 2 left!

0

23

Homelite 000998230

COMPLETE STRING HEAD (.080 in.)

Note: (INC. KEY NOS. 5, 6, AND 7)

$

$

Not available
