UT-20002 - Homelite TrimLite String Trimmer, 25cc String Trimmer - Figure A Parts Diagram

TrimLite String Trimmer, 25cc

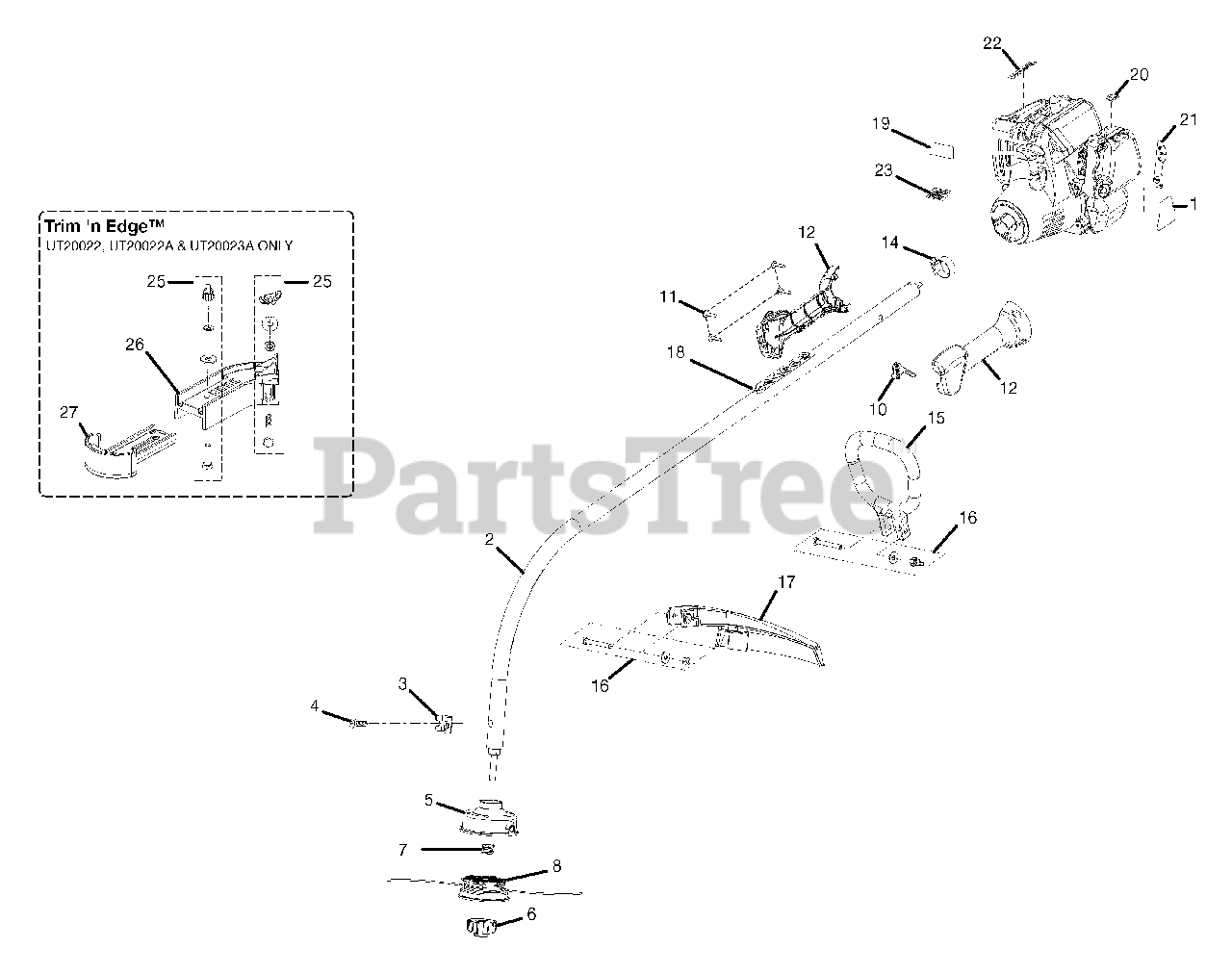

String Trimmer - Figure A Parts Diagram

  • Title

Homelite 984772001

POWER HEAD, UT20002, UT20022, UT20042

$

$

Not available

Homelite 984772003

UT20002A, UT20022A, UT20042A
(Superseded to 985882001)

$

$

Not available

Homelite 984772004

UT20003A, UT20023A, UT20043A

$

$

Not available

1

Homelite 985591001

STARTING INSTRUCTION DECAL

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 985380001

CURVED SHAFT ASSEMBLY
(Superseded to 000998229)

$49.99

$

Usually ships in 3-7 days

0

3

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

4

Homelite 983823001

SCREW (10-32 x 3/8 in.)
(Superseded to 660647001)

Note: Purchase Locally

$1.99

$

In Stock, only 1 left!

0

5

Homelite A98231A

HOUSING AND EYELET
(Superseded to 099068001005)

$

$

Not available

6

Homelite A98866A

SPOOL RETAINER (RH)
(Superseded to 308042002)

$

$

Not available

7

Homelite 06713

COMPRESSION SPRING

$1.99

$

In Stock, only 3 left!

0

8

Homelite PA0387A

SPOOL W/LINE
(Superseded to 308044002)

$

$

Not available

10

Homelite 983815001

TRIGGER
(Superseded to 518327001)

$

$

Not available

11

Homelite 82537

SCREW (10-14 x 7/8 in. TRUSS HD.)

Note: Purchase Locally

$1.99

$

Usually ships in 3-7 days

0

12

Homelite UP03091A

HANDLE GRIP ASSEMBLY

$

$

Not available

14

Homelite PS01611

BOOM CLAMP
(Superseded to 638012002)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 98822A

FRONT HANDLE

$

$

Not available

16

Homelite PA00249

FASTENER PARTS KIT

$

$

Not available

17

Homelite 985623002

GRASS DEFLECTOR ASSEMBLY
(Superseded to T308744001)

$

$

Not available

18

Homelite 984032001

DECAL, WARNING/STARTING BOOM

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 983837001

DECAL, TRIMLITE LOGO .

$

$

Not available

Homelite 983838001

DECAL, TRIM-N-EDGE

$

$

Not available

Homelite 983839001

DECAL, EASY REACH
(Superseded to 940054121)

$

$

Not available

20

Homelite 985595001

DECAL, PRIMER

$

$

Not available

21

Homelite 985589001

DECAL, CHOKE

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 07184

DECAL, HOMELITE
(Superseded to 940299603)

$

$

Not available

23

Homelite 983840001

LABEL, ZIP START

Note: (Trim 'n Edge(TM) & EZ Reach(TM) ONLY)

$

$

Not available

25

Homelite A09361

FASTENER PARTS KIT

$1.49

$

In Stock, only 2 left!

0

26

Homelite 09310

EDGER BASE

$6.99

$

In Stock, only 1 left!

0

27

Homelite 09311

EDGER GUIDE

$4.49

$

In Stock, only 2 left!

0
