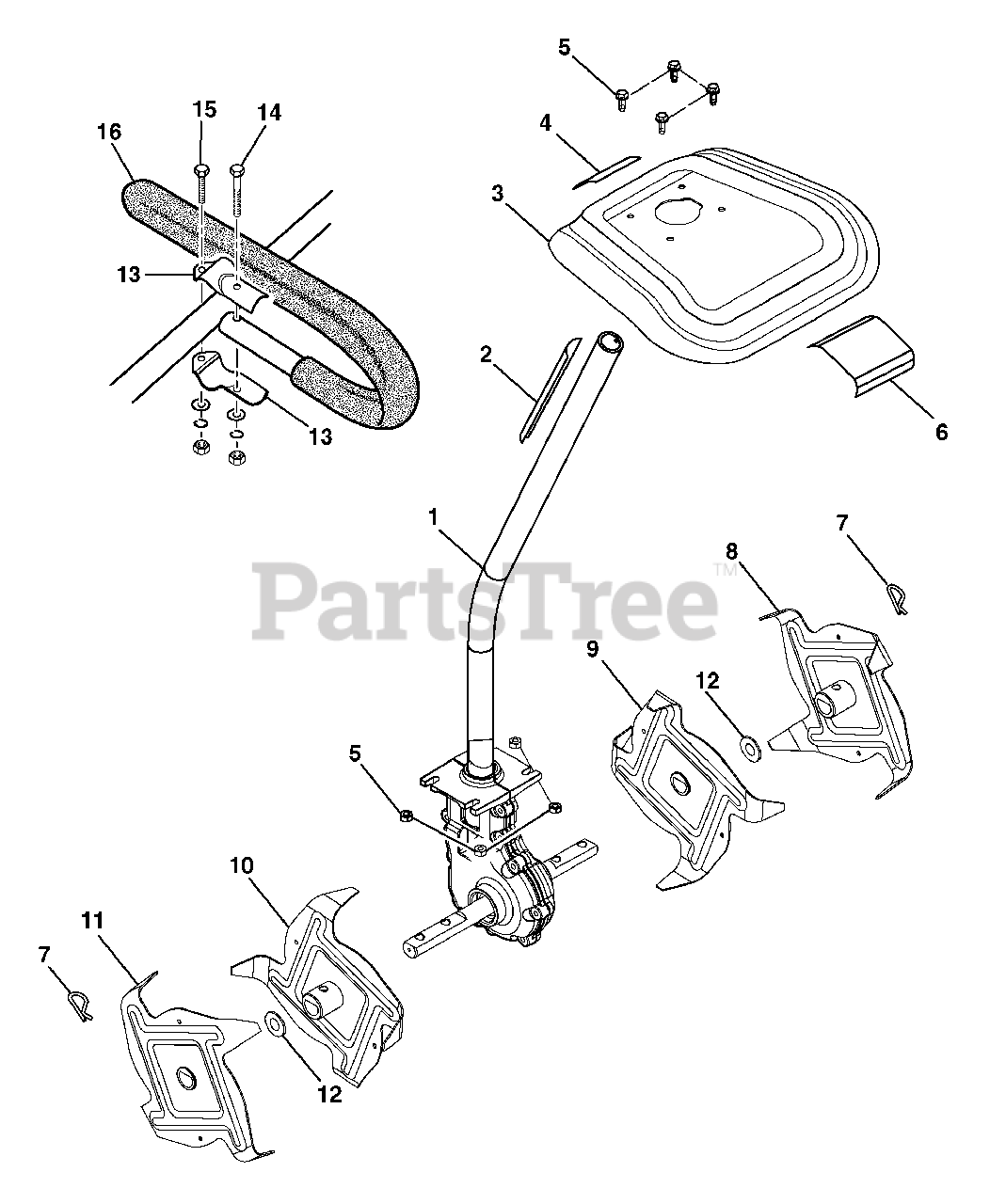

UT-15550-A - Homelite Expand-It Tiller Attachment Tiller Parts Diagram

Expand-It Tiller Attachment

Tiller Parts Diagram

  • Title
1

Homelite 090008001001

GEAR CASE AND BOOM ASSEMBLY
(Superseded to UT15550A-31)

$

$

Not available

2

Homelite 090008001002

WARNING LABEL
(Superseded to UT15550A-03)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 090008001003

TILLER SHIELD
(Superseded to UT15550A-07)

$

$

Not available

4

Homelite 090008001004

EXPAND-IT TILLER DECAL
(Superseded to UT15550A-32)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 090008001005

SCREW AND LOCK NUT
(Superseded to UT15550A-33)

$

$

Not available

6

Homelite 090008001006

WARNING LABEL
(Superseded to UT15550A-34)

$

$

Not available

7

Homelite 090008001007

CLIP PIN
(Superseded to UT15550A-35)

$1.99

$

In Stock, Qty 5

0

8

Homelite 090008001008

TINE D ASSEMBLY
(Superseded to UT15550A-28)

$23.99

$

Usually ships in 3-7 days

0

9

Homelite 090008001009

TINE C ASSEMBLY
(Superseded to UT15550A-27)

$23.99

$

Usually ships in 3-7 days

0

10

Homelite 090008001010

TINE B ASSEMBLY
(Superseded to UT15550A-26)

$

$

Not available

11

Homelite 090008001011

TINE A ASSEMBLY
(Superseded to UT15550A-25)

$23.99

$

Usually ships in 3-7 days

0

12

Homelite 090008001012

FELT WASHER
(Superseded to UT15550A-36)

$1.99

$

In Stock, Qty 8

0

13

Homelite 099075001007

HANDLE BAR CLAMP

$1.49

$

In Stock, only 1 left!

0

14

Homelite 099075001008

BOLT ASSEMBLY (LONG)

$

$

Not available

15

Homelite 099075001009

BOLT ASSEMBLY (SHORT)

$

$

Not available

16

Homelite 099075001010

J-HANDLE AND GRIP
(Superseded to A08130)

$27.99

$

In Stock, only 1 left!

0

Homelite 983000253

OPERATOR'S MANUAL(090008001013)

$

$

Not available

Homelite NLA

REPAIR SHEET (REV:00)

$

$

Currently unavailable
