UT-15518-B - Homelite Expand-It Edger Attachment Parts List Rev B Parts Diagram

Expand-It Edger Attachment

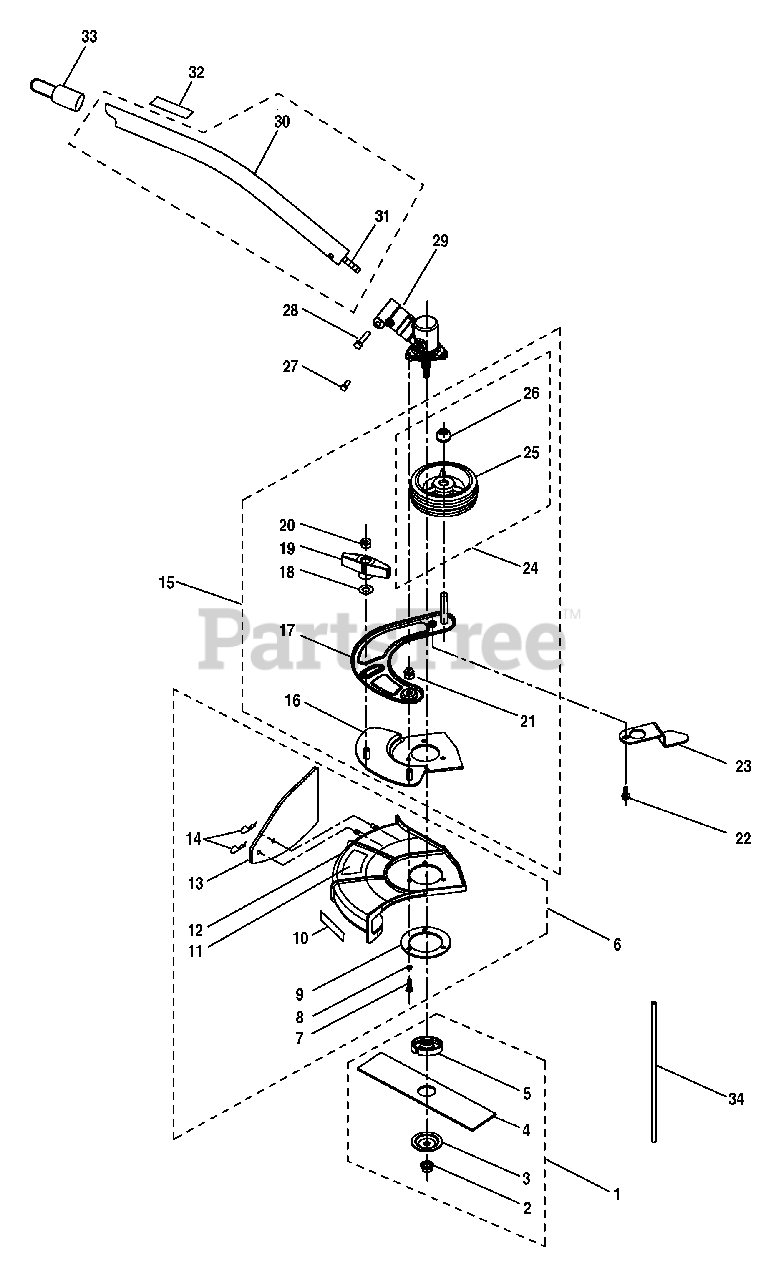

Parts List Rev B Parts Diagram

  • Title

1

Homelite UT15518D-01

BLADE ASSEMBLY
(Superseded to 099078001001)

Note: (INCLUDES KEY NOS. 2-5)

$36.99

$

Usually ships in 3-7 days

0

2

Homelite UT15518D-02

LOCK NUT (M8)
(Superseded to 662450001)

$1.99

$

In Stock, only 4 left!

0

3

Homelite UT15518D-03

CUPPED WASHER
(Superseded to 099078001003)

$

$

Not available

4

Homelite UT15518D-04

BLADE
(Superseded to 638006005)

$

$

Not available

5

Homelite UT15522D-08

FLANGED WASHER
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

6

Homelite UT15518D-05

BLADE GUARD ASSEMBLY

Note: (INCLUDES KEY NOS. 7-15)

$45.99

$

Usually ships in 3-7 days

0

7

Homelite UT15518D-06

HEX SCREW (M5)
(Superseded to 099078001007)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite UT15518D-07

HELICAL LOCK WASHER (5 mm)
(Superseded to 099078001008)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite UT15518D-08

RING

$

$

Not available

10

Homelite UT15518D-09

WARNING DECAL
(Superseded to 099078001010)

$

$

Not available

11

Homelite UT15518D-10

EXPAND-IT LOGO LABEL
(Superseded to 099078001011)

$

$

Not available

12

Homelite 07061

BLADE GUARD
(Superseded to UP06738A)

$

$

Not available

13

Homelite 04990A

DRAG FLAP

$

$

Not available

14

Homelite 03873A

PUSH CLIP

$

$

Not available

15

Homelite UT15518D-15

SUPPORT ARM ASSEMBLY (UT15518B)
(Superseded to 099078001016)

Note: (INCLUDES KEY NOS.16-21 AND 25-26)

$

$

Not available

16

Homelite A04745A

PLATE WITH STUD
(Superseded to 099078001017)

$

$

Not available

17

Homelite PA01359

SUPPORT ARM
(Superseded to UP06881A)

$64.99

$

Usually ships in 3-7 days

0

18

Homelite PS84010

WASHER (10 mm)

$

$

Not available

19

Homelite PS06364

ADJUSTING KNOB

$

$

Not available

20

Homelite 81162

HEX NUT

$

$

Not available

21

Homelite 81288

HEX NUT W/NYLON CAP

$

$

Not available

22

Homelite 88049

SCREW (10-24 x 1/2 in. HEX HD.)

$

$

Not available

23

Homelite UT15518D-24

CURB GUIDE
(Superseded to 099078001024)

$

$

Not available

24

Homelite UP06882

WHEEL ASSEMBLY

Note: (INCLUDES KEY NOS. 25-26)

$

$

Not available

25

Homelite UT15518D-27

WHEEL
(Superseded to 099078001027)

$

$

Not available

26

Homelite 04823

PUSH NUT (10 mm)

$

$

Not available

27

Homelite PSO4673

HEX SCREW (10-24 x 5/8 in. PAN HD.)

$

$

Currently unavailable

28

Homelite PSO4680

SCREW (1/4-20 x 1-1/4 in. PAN HD.)

$

$

Currently unavailable

29

Homelite UT15522D-10

GEAR HEAD ASSEMBLY
(Superseded to 099078001029)

$125.99

$

Usually ships in 3-7 days

0

30

Homelite UT15518D-29

DRIVE SHAFT ASSEMBLY
(Superseded to 099078001034)

Note: (INCLUDES KEY NO. 31)

$

$

Not available

31

Homelite UT15518D-30

FLEX SHAFT
(Superseded to 099078001035)

$

$

Not available

32

Homelite UT15519D-02

WARNING DECAL
(Superseded to 099078001038)

$

$

Not available

33

Homelite UT15519D-19

HANGER CAP
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

34

Homelite UT15518D-32

HOLDING PIN
(Superseded to 099078001040)

$2.49

$

In Stock, only 4 left!

0

Homelite 983000215

OPERATOR'S MANUAL (UT15518B)

$

$

Not available

Homelite NLA

REPAIR SHEET (UT15518D)

$

$

Currently unavailable
