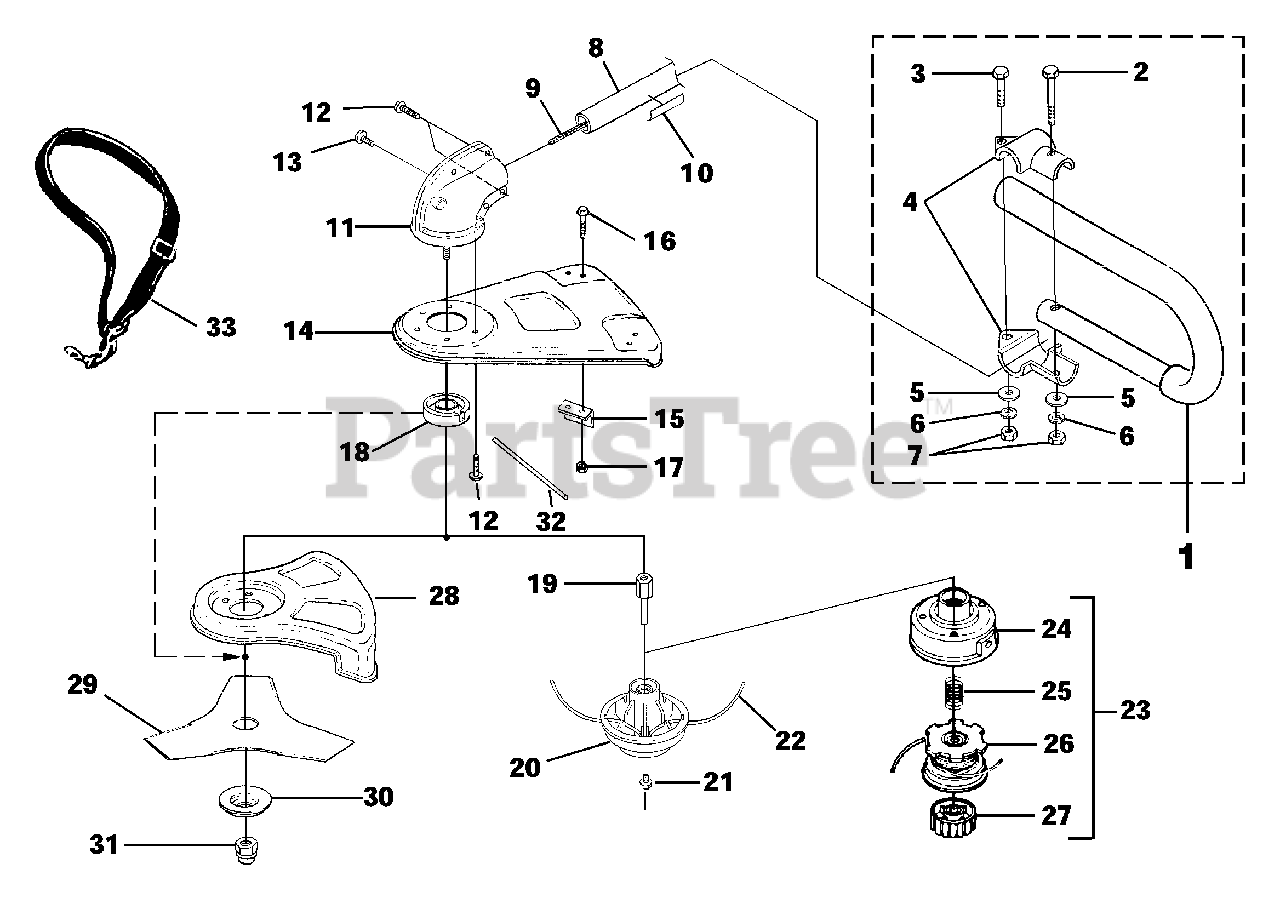

UT-15151 - Homelite Versa Tool Plus String Trimmer Shaft - Spool & String - Grass Deflector - Blade Guard - Blade Parts Diagram

Versa Tool Plus String Trimmer

Shaft - Spool & String - Grass Deflector - Blade Guard - Blade Parts Diagram

  • Title

1

Homelite UP06534

HANDLE ("J")

Note: Includes items 2-7

$

$

Not available

2

Homelite UP04154

SCREW-Hex Hd. (1/4-20 X 1 1/2")
(Superseded to 82278)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite UP04158

SCREW-Hex Hd. (1/4-20 X 1")
(Superseded to 82496)

$

$

Not available

4

Homelite UP04105

CLAMP-Handle Bar
(Superseded to 00422)

$1.49

$

In Stock, only 1 left!

0

5

Homelite UP04251

WASHER-Flat (1/4")
(Superseded to 84004)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

7

Homelite UP03399

NUT-Hex (1/4-20)
(Superseded to 81242)

Note: Torque Specs 90-100 In/Lbs, 10.2-11.3 Nm.

$1.99

$

Usually ships in 3-7 days

0

8

Homelite UP02969

DRIVESHAFT HOUSING
(Superseded to UP02969A)

Note: Includes items 9-10

$

$

Not available

9

Homelite UP04717

DRIVESHAFT-Flexible
(Superseded to 98818)

$

$

Not available

10

Homelite UP04352

DECAL-Warning
(Superseded to PS02750)

$

$

Not available

11

Homelite UP06970

GEAR HEAD
(Superseded to UP06970A)

Note: Includes items 12-13

$

$

Not available

12

Homelite UP04157

Screw, Taptite Hex Hd. (10-24 x 1/2")
(Superseded to 82459)

Note: Torque Specs 15-20 In/Lbs, 1.7-2.3 Nm.

$

$

Not available

13

Homelite UP04155

Screw-Hex Hd. (10-24 x 5/8")
(Superseded to PS01605)

Note: Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm.

$

$

Not available

14

Homelite A04683A

GRASS DEFLECTOR KIT

Note: Includes items 15-17

$

$

Not available

15

Homelite UP04538

BLADE-Cut-Off
(Superseded to 07076)

$

$

Not available

16

Homelite UP04149

SCREW-Mach. Hex Hd. (10-24 X 3/8")
(Superseded to 80869)

$

$

Not available

17

Homelite UP03885

NUT-Hex (10-24)
(Superseded to 81208)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$

$

Not available

18

Homelite UP04126

WASHER-Flanged
(Superseded to 04168A)

$10.99

$

Usually ships in 3-7 days

0

19

Homelite UP04128

ADAPTER-Shaft
(Superseded to 04355)

Note: Torque Specs 100-120 In/Lbs, 11.3-13.6 Nm.

$19.99

$

Usually ships in 3-7 days

0

20

Homelite DA09364

STRINGHEAD-Pro-Cut w/line (UT15151, UT15154, UT20722, UT20723, UT15157)
(Superseded to DA09364A)

Note: Includes items 21-22

$

$

Not available

21

Homelite UP04102

SCREW-(5/16-18 x 5/8")
(Superseded to PS00082)

Note: Torque Specs 40-60 In/Lbs, 4.5-6.8 Nm.

$

$

Not available

22

Homelite D09365

LINE-Replacement
(Superseded to AC09365)

$

$

Not available

23

Homelite DA04591A

STRINGHEAD-Complete (.095") (UT15152, UT15160, UT15159R, UT15204)
(Superseded to DA04591AA)

Note: Includes items 24-27

$103.99

$

In Stock, only 1 left!

0

24

Homelite UP06567

HOUSING & EYELET (Dual Line)
(Superseded to A98231A)

$

$

Not available

25

Homelite UP06526

SPRING-Compression
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

26

Homelite UP00147

SPOOL & STRING (.095")
(Superseded to UP04661A)

$103.99

$

In Stock, only 1 left!

0

27

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available

28

Homelite UP04535

BLADE GUARD
(Superseded to 044101)

$52.99

$

Usually ships in 3-7 days

0

29

Homelite UP06729

BLADE-Tri-Arc(TM)
(Superseded to 638006004)

$21.99

$

In Stock, only 1 left!

0

30

Homelite UP04129

WASHER-Cupped (Lower)
(Superseded to 04409)

$3.99

$

In Stock, only 1 left!

0

31

Homelite UP03492

NUT-Hex (5/16-18) (R.H.)

Note: Torque Specs 100-120 In/Lbs, 11.3-13.6 Nm.

$4.99

$

Usually ships in 3-7 days

0

32

Homelite UP04100

TOOL-Holding Pin
(Superseded to 099078001040)

$2.49

$

In Stock, only 4 left!

0

33

Homelite UP00108

HARNESS
(Superseded to 944701)

$11.99

$

In Stock, only 1 left!

0
