UT-10947-E - Homelite 16" Chainsaw, 33cc Engine Housing - Fuel Tank - Oil Tank Parts Diagram

16" Chainsaw, 33cc

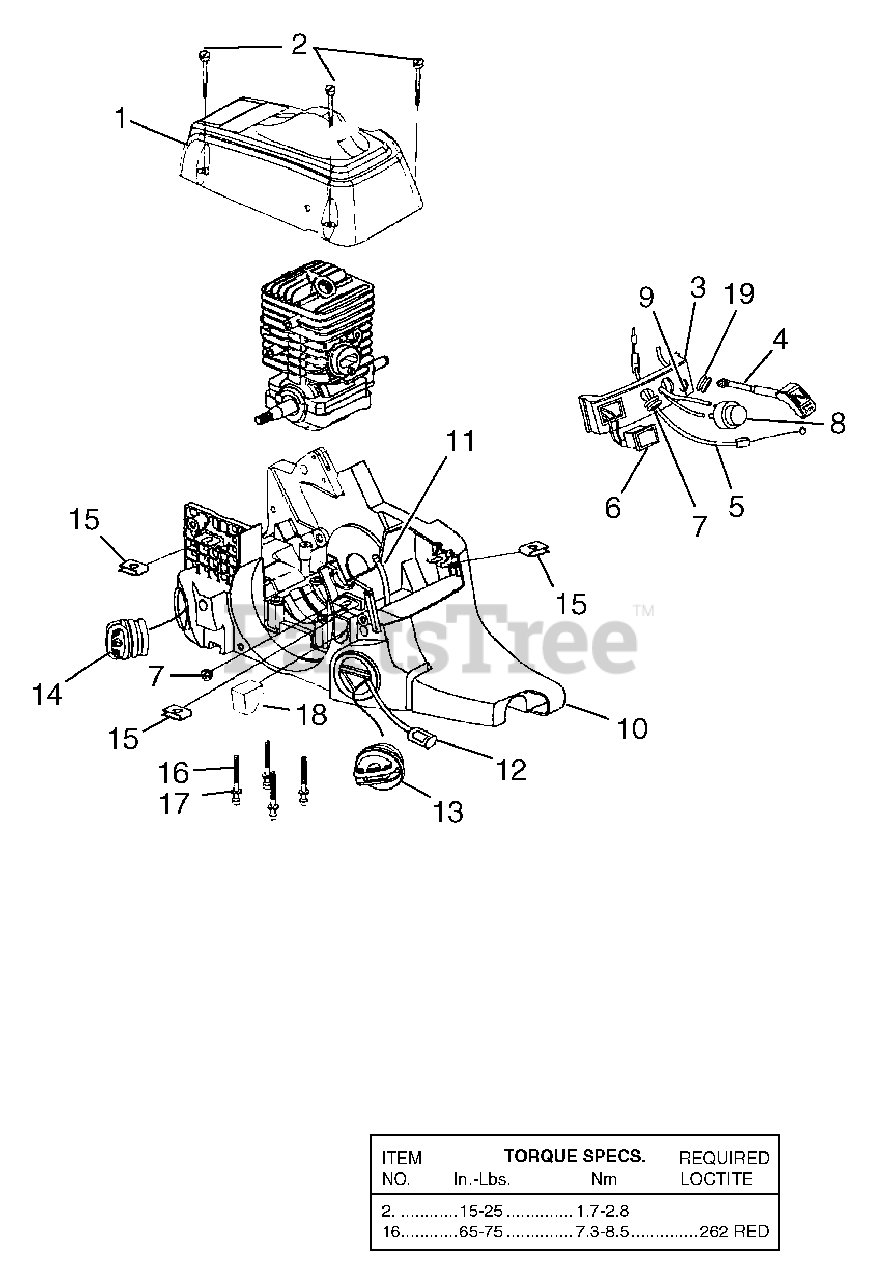

Engine Housing - Fuel Tank - Oil Tank Parts Diagram

  • Title

1

Homelite 06875

CYLINDER COVER

$

$

Not available

2

Homelite 07597

SCREW-SLOTTED PAN HEAD
(Superseded to 660636001)

$

$

Not available

3

Homelite PS03503

CONTROL PANEL

$

$

Not available

4

Homelite PS06280

CHOKE ROD

$

$

Not available

5

Homelite A07596B

THROTTLE CABLE
(Superseded to 900845001)

$

$

Not available

6

Homelite 07385

ROCKER SWITCH
(Superseded to 760661001)

$

$

Not available

7

Homelite 07587

SPLIT GROMMET
(Superseded to 570227001)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 01183

PRIMER BULB
(Superseded to 300780002)

$

$

Not available

9

Homelite 0745434

RUBBER TUBING (5-1/2 in.)

Note: Come standard 8 1/2 inches in Length. Should be cut to 5-1/2 in.

$

$

Not available

10

Homelite 985029001

CHASSIS

$88.99

$

Usually ships in 3-7 days

0

11

Homelite 0745434

RUBBER TUBING (8-1/2 in.)

Note: Come standard 8 1/2 inches in Length.

$

$

Not available

12

Homelite PS03380

FUEL FILTER
(Superseded to 300759003)

$

$

Not available

13

Homelite PA01645

FUEL CAP, W/RETAINER
(Superseded to 300948001)

$

$

Not available

14

Homelite PA01646

OIL CAP, W/RETAINER
(Superseded to 300949001)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 07598

SPEED NUT (U-TYPE)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 82527

SCREW, (10-24 x 2 in.)
(Superseded to 660622001)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 84008

WASHER
(Superseded to 671080001)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite PS05070

PRE FILTER

$

$

Not available

19

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

Homelite PS00340

CHAIN BRAKE DECAL
(Superseded to 985271001)

$1.49

$

Usually ships in 3-7 days

0

Homelite PS06324

SAFETY DECAL
(Superseded to 940299425)

$

$

Not available

Homelite PS06321

D/C COVER DECAL

$2.49

$

Usually ships in 3-7 days

0

Homelite PS06322

STARTER HOUSING DECAL

$2.49

$

Usually ships in 3-7 days

0

Homelite PS06323

KICK BACK DECAL

$

$

Not available

Homelite PS06341

HELP / START DECAL

$

$

Not available
