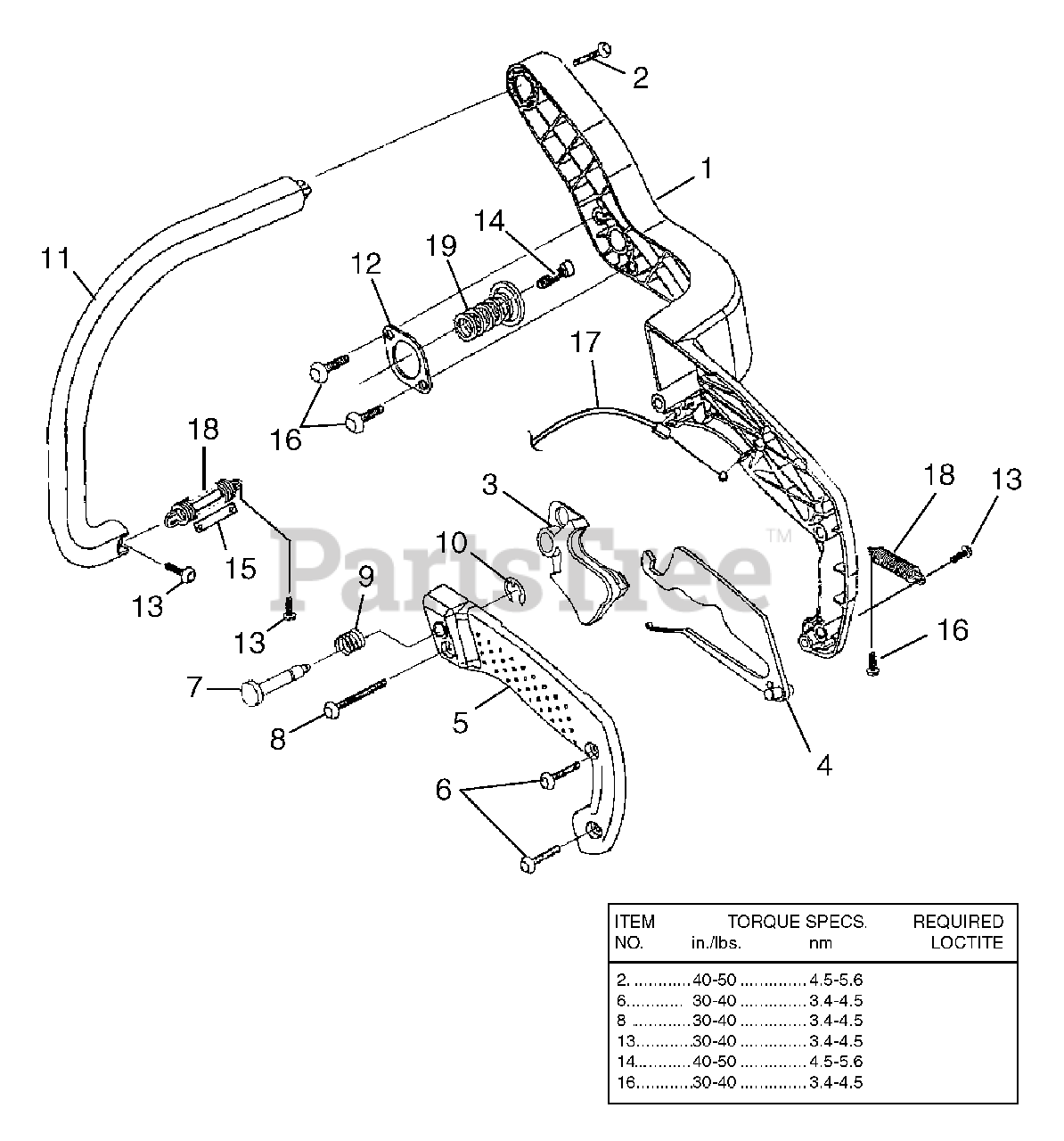

UT-10947-D - Homelite 16" Chainsaw, 33cc Handles Parts Diagram

16" Chainsaw, 33cc

Handles Parts Diagram

  • Title
1

Homelite 06870

REAR HANDLE
(Superseded to 511721004)

$11.99

$

Usually ships in 3-7 days

0

2

Homelite 82615

SCREW (12-14 x 1-1/2 in.)

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 984354002

THROTTLE TRIGGER

$2.49

$

Usually ships in 3-7 days

0

4

Homelite PS06283

THROTTLE LOCK OUT

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 06871

HANDLE COVER

$3.49

$

Usually ships in 3-7 days

0

6

Homelite 82563

SCREW (10-14 x 314 in.)

$1.99

$

In Stock, Qty 6

0

7

Homelite PS06281

THROTTLE PIN LOCK

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 82622

SCREW (10-14 x 1- 318 in.)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 08898

SPRING
(Superseded to 671073001)

$1.99

$

Usually ships in 3-7 days

0

10

$4.49

$

Usually ships in 3-7 days

0

11

Homelite PS03985

FRONT HANDLE
(Superseded to UP07862A)

$

$

Not available

12

Homelite 07384

ISOLATOR PLATE

$

$

Not available

13

Homelite 82621

SCREW (10-14 x 5/8 in.)

$

$

Not available

14

Homelite 82597

SCREW (10-24 x 5/8 in.)
(Superseded to 660630001)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 01812A

LIMITER, ISOLATOR
(Superseded to 631050001)

$

$

Not available

16

Homelite 82541

SCREW (10-14 x 1/2 in.)

$1.99

$

In Stock, only 3 left!

0

17

Homelite A07596B

THROTTLE CABLE
(Superseded to 900845001)

$

$

Not available

18

Homelite PS05217

EXTENSION SPRING
(Superseded to 671101001)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite PS05199

UPPER ISOLATION SPRING

$1.49

$

Usually ships in 3-7 days

0

Homelite PS05239

INSTRUCTION SHEET

$

$

Not available
