UT-10947-D - Homelite 16" Chainsaw, 33cc Clutch-Chain Brake-Drive Case Cover Parts Diagram

16" Chainsaw, 33cc

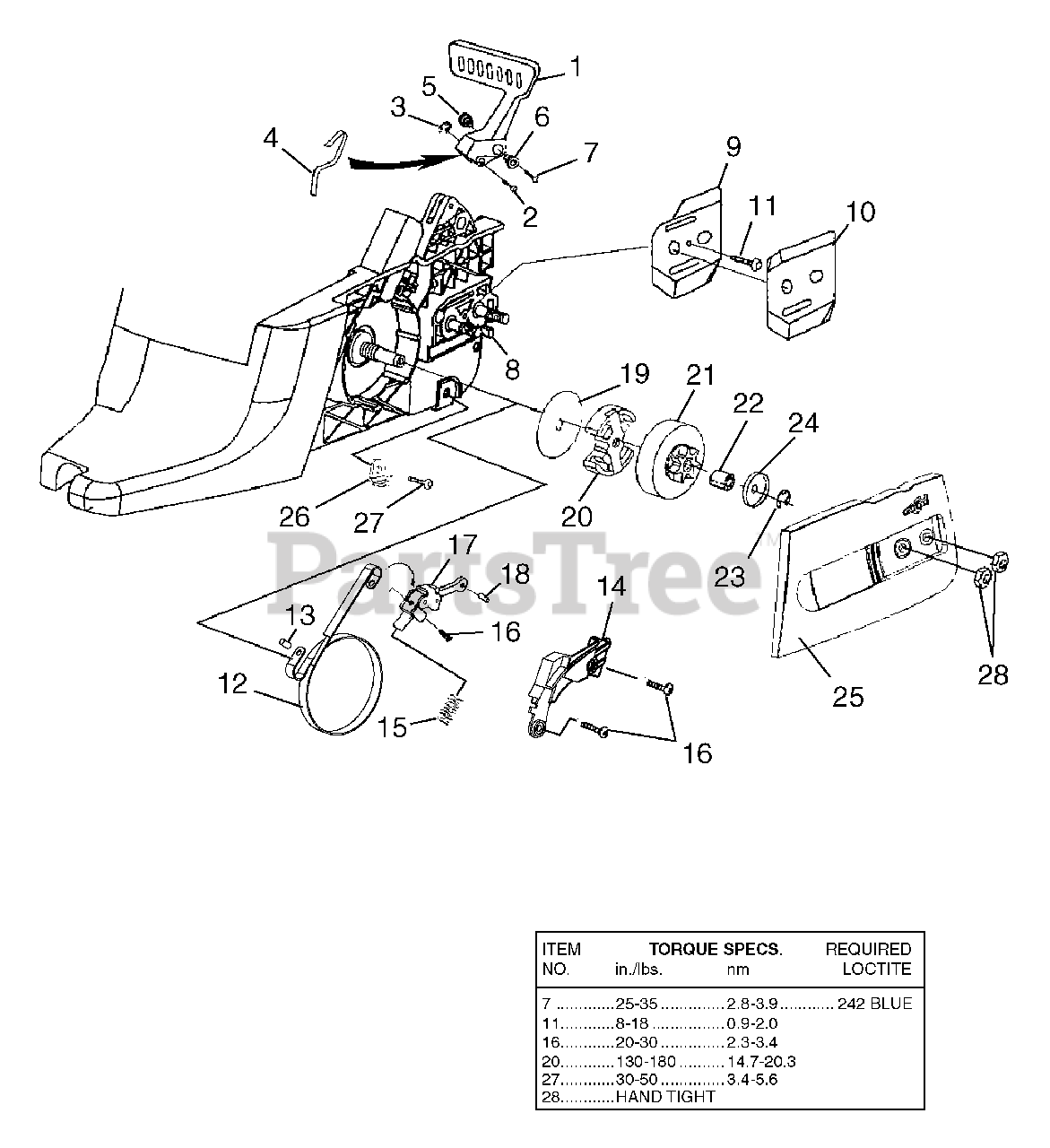

Clutch-Chain Brake-Drive Case Cover Parts Diagram

  • Title

1

Homelite 07386B

HAND GUARD

$10.99

$

In Stock, only 1 left!

0

2

Homelite 07580

HAND GUARD ACTUATING PIN
(Superseded to 620282001)

$1.99

$

In Stock, Qty 20+

0

3

Homelite 69599

RETAINING RING

$

$

Not available

4

Homelite 07613

HANDGUARD SPRING
(Superseded to 631052001)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 07393

PIVOT, L.H.
(Superseded to 671097001)

$1.99

$

In Stock, Qty 5

0

6

Homelite 07392

PIVOT, R.H.
(Superseded to 671096001)

$1.99

$

In Stock, Qty 5

0

7

Homelite 82624

SCREW (8-32 x 5/8 in.)
(Superseded to 660635001)

$1.99

$

In Stock, only 2 left!

0

8

Homelite 984901001

ADJUSTING PIN
(Superseded to 308116001)

$

$

Not available

9

Homelite 07404A

GUIDE BAR PLATE
(Superseded to 631036001)

$

$

Not available

10

Homelite 07405A

GUIDE BAR PLATE
(Superseded to 631038001)

$

$

Not available

11

Homelite 82513

SCREW (6-19 x 1/2 in.)

$2.49

$

In Stock, Qty 5

0

12

Homelite 985030001

BRAKE BAND

$

$

Not available

13

Homelite 06672

ROLL PIN
(Superseded to 671095001)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 985021001

CHAIN BRAKE COVER

$2.49

$

In Stock, Qty 5

0

15

Homelite 985240001

COMPRESSION SPRING
(Superseded to 678107001)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 82623

SCREW (8-16 x.320)
(Superseded to 660634001)

$1.99

$

In Stock, Qty 20+

0

17

Homelite 984897001

CHAIN BRAKE LINK

$

$

Not available

18

Homelite 95395A

ROLL PIN
(Superseded to 671099001)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 04940

THRUST WASHER
(Superseded to 631061001)

$1.49

$

In Stock, only 2 left!

0

20

Homelite 984898001

CLUTCH & HARDWARE
(Superseded to 120950007)

$

$

Not available

21

Homelite 984350001

DRUM SPROCKET (.375 PITCH)
(Superseded to 300958001)

$

$

Not available

22

Homelite PS04669

NEEDLE BEARING

$6.49

$

Usually ships in 3-7 days

0

23

Homelite 08981

RETAINING RING

$4.99

$

In Stock, only 1 left!

0

24

Homelite 04939A

CUPPED WASHER
(Superseded to 631060001)

$

$

Not available

25

Homelite PA01106

DRIVE CASE COVER ASSEMBLY
(Superseded to 300957001)

$

$

Not available

26

Homelite PS02928

CHAIN CATCHER
(Superseded to 631035002)

$4.99

$

Usually ships in 3-7 days

0

27

Homelite 82541

I SCREW (10-24x 1/2 in.)

$1.99

$

In Stock, only 3 left!

0

28

Homelite 81196

HEX NUT
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0
