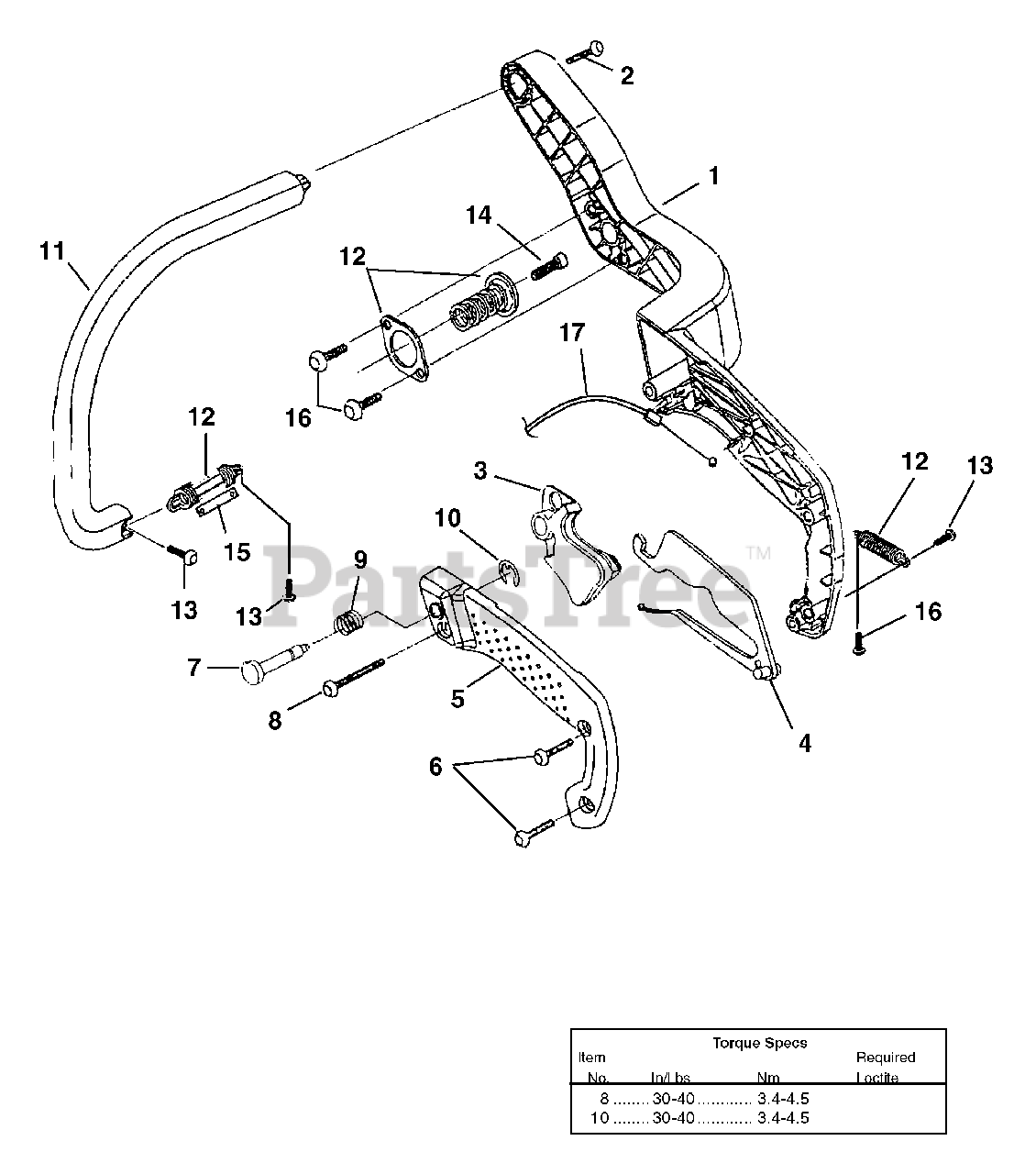

UT-10947-A - Homelite 16" Chainsaw, 33cc Handles Parts Diagram

16" Chainsaw, 33cc

Handles Parts Diagram

  • Title

1

Homelite UP08733

Rear Handle Kit

Note: Include items 1-10

$

$

Not available

2

Homelite 82615

Screw-Pan Hd. (12-14 x 1 1/2")

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 984354-002

Trigger, Throttle

$2.49

$

Usually ships in 3-7 days

0

4

Homelite PS06283

Throttle Lock Out

$2.49

$

Usually ships in 3-7 days

0

5

Homelite UP08731

Handle Cover Kit

Note: Include items 5-10

$

$

Not available

6

Homelite 82563

Screw, Thread Form (10-14 x 3/4")

$1.99

$

In Stock, Qty 6

0

7

Homelite PS06281

Throttle Lock Pin

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 82622

Screw, Thread Form (10-14 x 11

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 08898

Spring
(Superseded to 671073001)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 58409

E-Ring

$4.49

$

Usually ships in 3-7 days

0

11

Homelite UP07862A

Front Handle Kit
(Superseded to 511724011)

Note: Include items 11-2

$

$

Not available

2

Homelite 82615

Screw-Pan Hd. (12-14 x 1 1/2")1

$4.99

$

Usually ships in 3-7 days

0

12

Homelite UP08007A

Isolator Kit

Note: Include items 12-15

$

$

Not available

13

Homelite 82621

Screw, Truss Hd. (10-14 x 5/8")

$

$

Not available

14

Homelite 82597

Screw, Truss Hd. (10-24 x 5/8")
(Superseded to 660630001)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 01812A

Limiter, Isolator
(Superseded to 631050001)

$

$

Not available

16

Homelite 82541

Screw, Thread Form (10-14 x 1/2")

$1.99

$

In Stock, only 3 left!

0

17

Homelite A07596B

Throttle Cable
(Superseded to 900845001)

$

$

Not available
