UT-10946 - Homelite Chainsaw, 45cc Carburetor - Air Filter Parts Diagram

Chainsaw, 45cc

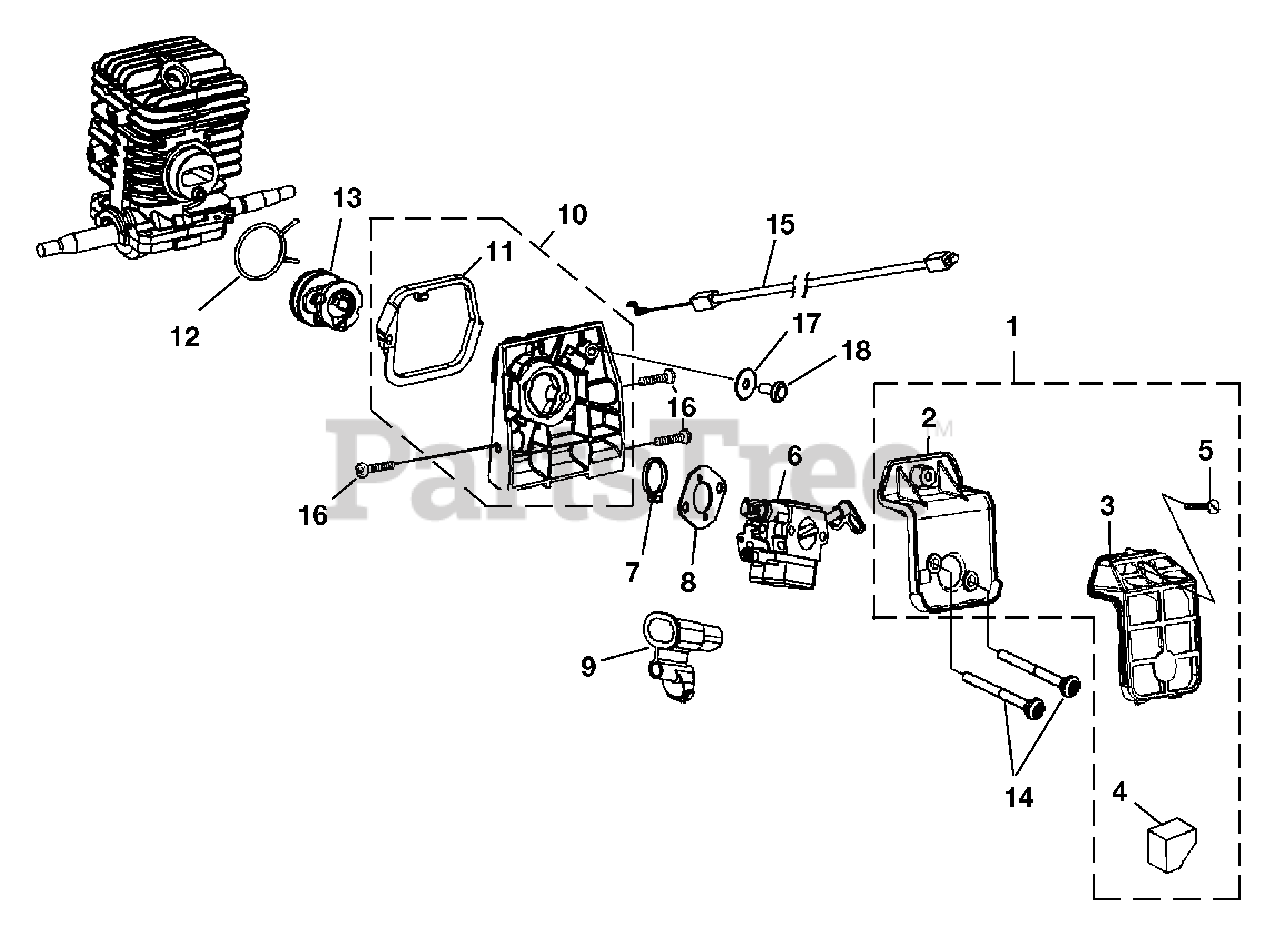

Carburetor - Air Filter Parts Diagram

  • Title

1

Homelite UP08095A

Air Filter Kit

Note: Includes items 1-5

$

$

Not available

2

Homelite PA01284

Air Filter Base

$

$

Not available

3

Homelite PS02798

Air Filter Cover
(Superseded to 518049002)

$

$

Not available

4

Homelite PS05070

Pre Filter

Note: (Position shown in engine housing)

$

$

Not available

5

Homelite 82617

Screw-Slotted Pan Hd.(8-16 x 5/8")

$1.99

$

In Stock, only 2 left!

0

6

Homelite UP08662A

Carburetor Assembly

Note: Includes items 6-8

$

$

Not available

7

Homelite PS04375

Plate-Carburetor

$

$

Not available

8

Homelite PS05105

Gasket-Carburetor

$2.49

$

Usually ships in 3-7 days

0

9

Homelite PS04371

Grommet-Carburetor
(Superseded to 570242001)

$

$

Not available

10

Homelite UP07896A

Adaptor-Carburetor

Note: Includes items 10-11

$

$

Not available

11

Homelite PS04374

Seal-Carb Adaptor

$2.49

$

Usually ships in 3-7 days

0

12

Homelite PS04309

Clamp-Wire

$2.49

$

Usually ships in 3-7 days

0

13

Homelite PS02794

Intake Boot

$13.99

$

Usually ships in 3-7 days

0

14

Homelite PS04446

Screw 10-32 x 1.75

$

$

Not available

15

Homelite UP07868A

Throttle Cable
(Superseded to 900885001)

$

$

Not available

16

Homelite 82563

Screw-Torx

$1.99

$

In Stock, Qty 6

0

17

Homelite 12789

Washer, Retaining

$

$

Not available

18

Homelite 82623

Screw
(Superseded to 660634001)

$1.99

$

In Stock, Qty 20+

0
