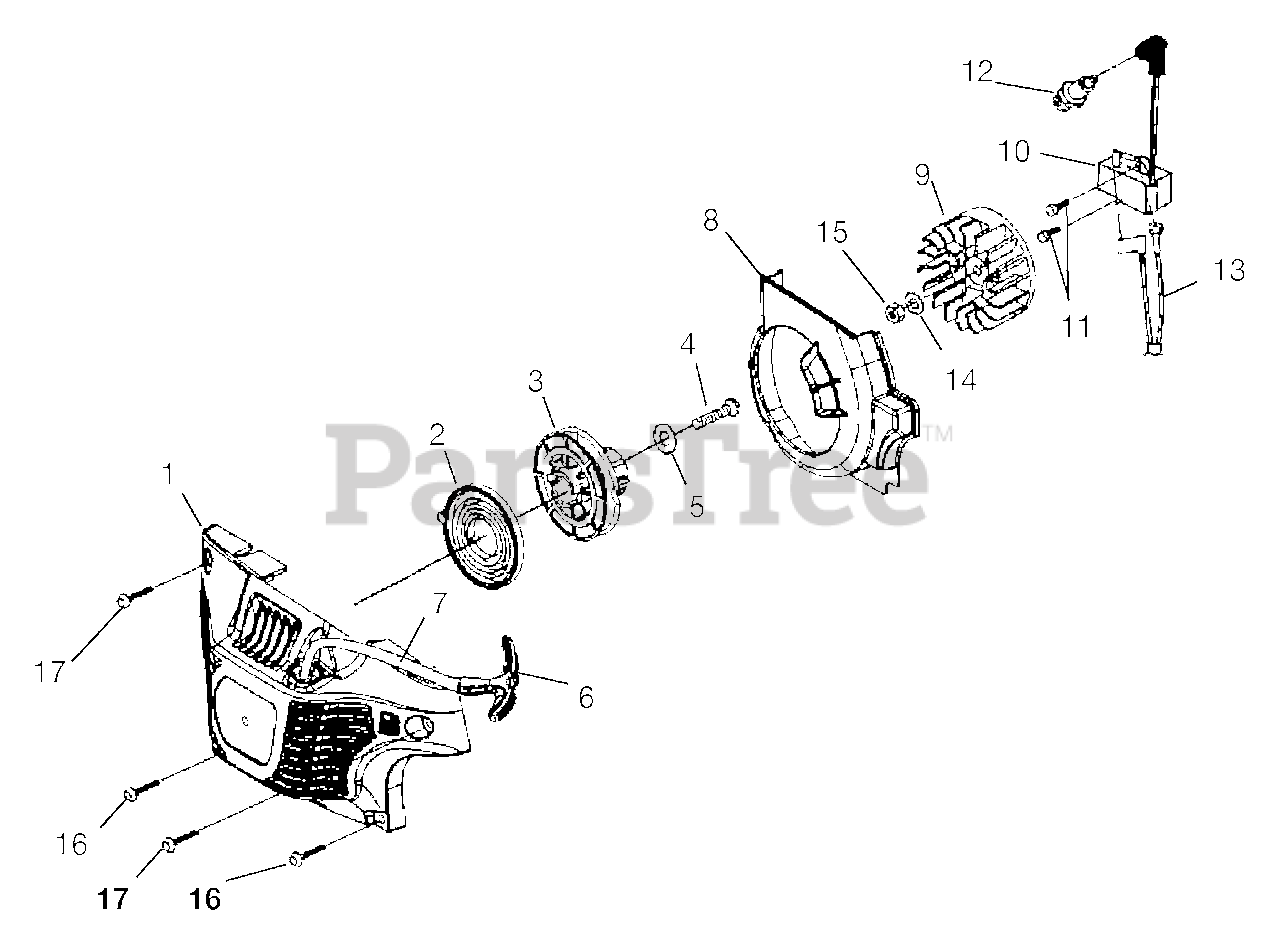

UT-10946-A - Homelite Chainsaw, 45cc Starter - Ignition Parts Diagram

Chainsaw, 45cc

Starter - Ignition Parts Diagram

  • Title

1

Homelite 984687-001

Starter Kit

Note: Includes items 1-7

$

$

Not available

2

Homelite PA01330

Spring & Container
(Superseded to 308066001)

$4.49

$

In Stock, only 1 left!

0

3

Homelite PS03882

Pulley, Starter

$

$

Not available

4

Homelite 82621

Screw, Thread Form (10-14 x 5/8")

$

$

Not available

5

Homelite 94062

Washer, Retaining

$

$

Not available

6

Homelite PS06114

Grip, Starter

$

$

Not available

7

Homelite 9789901

Rope, Starter 46"
(Superseded to 900849001)

$1.99

$

In Stock, only 3 left!

0

8

Homelite PS03984

Baffle, Fan Housing
(Superseded to 518055001)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite UP05850A

Rotor w/ Starter Pawl
(Superseded to 986154001)

$13.99

$

In Stock, only 1 left!

0

10

Homelite U08653A

Ignition Kit

Note: Includes items 10-11

$

$

Currently unavailable

11

Homelite 82575

Screw, Thread Form (8-32 x 5/8")
(Superseded to 660639001)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite PS06216

Spark Plug
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

13

Homelite PA01311

Ignition Switc Harness
(Superseded to 290195002)

Note: (UT10927, UT10927A, UT10942, UT10942A)

$9.49

$

Usually ships in 3-7 days

0

Homelite PA01664

Ignition Switch Harness
(Superseded to 290195003)

Note: (UT10946, UT10946A)

$3.99

$

Usually ships in 3-7 days

0

14

Homelite PS84065

Washer, Flat

$

$

Not available

15

Homelite 985730001

Nut, Jam
(Superseded to 678123001)

$1.49

$

In Stock, only 1 left!

0

16

Homelite 82620

Screw, Truss Hd. (10-14 x 7/8")

$1.99

$

In Stock, Qty 6

0

17

Homelite 82621

Screw, Truss Hd. (10-14 x 5/8")

$

$

Not available
