UT-10942 - Homelite Chainsaw, 45cc Clutch - Chain Brake - Drive Case Cover Parts Diagram

Chainsaw, 45cc

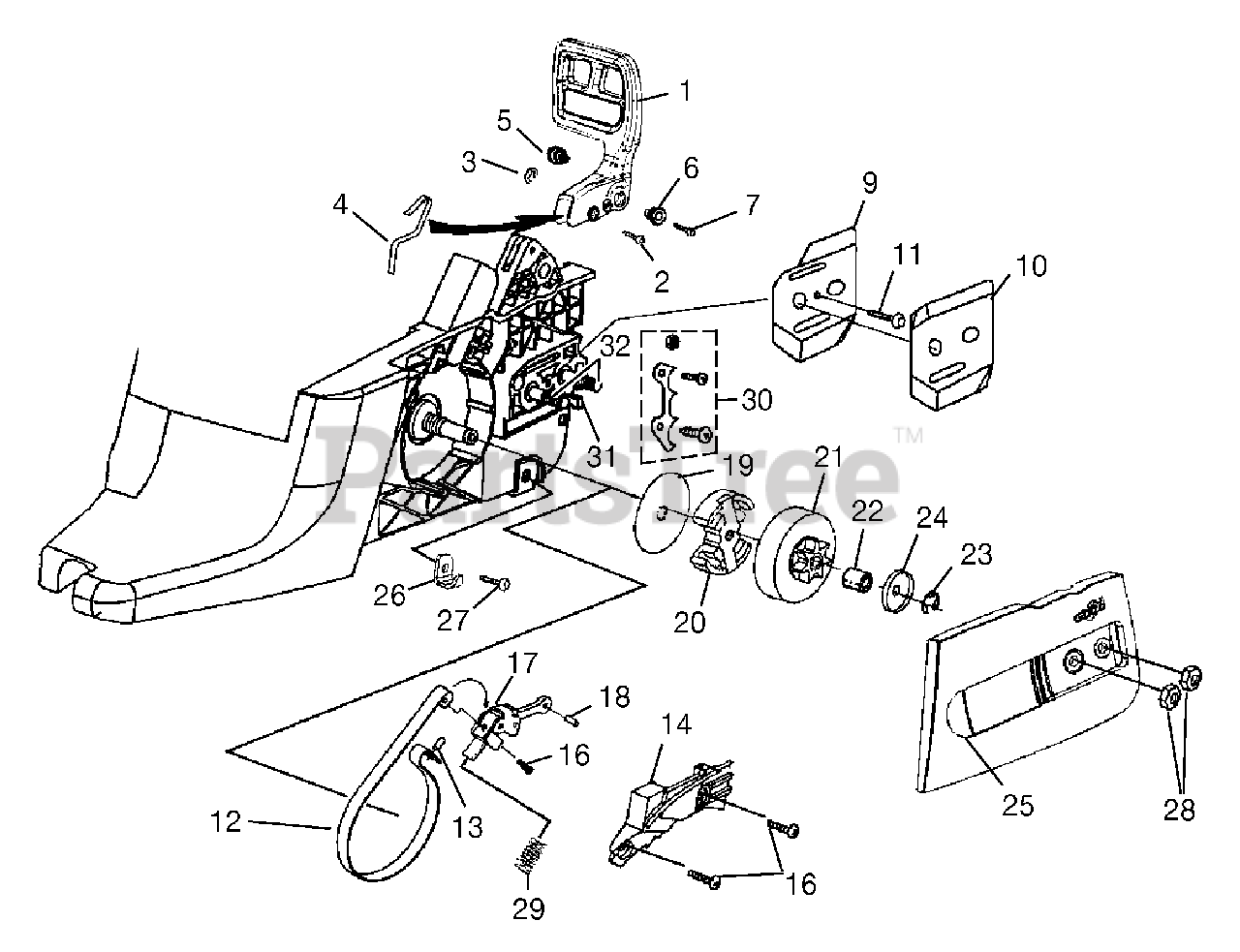

Clutch - Chain Brake - Drive Case Cover Parts Diagram

  • Title

1

Homelite PS04726

Hand Guard
(Superseded to 511723001)

Note: Includes items 2-4

$10.99

$

In Stock, only 1 left!

0

2

Homelite 07580

Hand Guard Actuating Pin
(Superseded to 620282001)

$1.99

$

In Stock, Qty 20+

0

3

Homelite 69599

Retaining Ring

$

$

Not available

4

Homelite PS04955

Spring, Handguard
(Superseded to 638024001)

$1.99

$

In Stock, only 4 left!

0

5

Homelite 07393

Pivot, L.H.
(Superseded to 671097001)

$1.99

$

In Stock, Qty 5

0

6

Homelite 07392

Pivot, R.H.
(Superseded to 671096001)

$1.99

$

In Stock, Qty 5

0

7

Homelite 82624

Screw, Hex Socket Hd. (8-32 x 5/8")
(Superseded to 660635001)

$1.99

$

In Stock, only 2 left!

0

9

Homelite 07404A

Plate, Guide Bar
(Superseded to 631036001)

$

$

Not available

10

Homelite 07405A

Plate, Guide Bar
(Superseded to 631038001)

$

$

Not available

11

Homelite 82513

Screw, Thread Form (6-19 x 1/2")

$2.49

$

In Stock, Qty 5

0

12

Homelite 985030001

Chain Brake Band

Note: Includes items 13-14,16

$

$

Not available

13

Homelite 06672

Pin, Roll
(Superseded to 671095001)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 985021001

Cover, Chain Brake

$2.49

$

In Stock, Qty 5

0

16

Homelite 82623

Screw, Pan Hd. (8-16 x .320)
(Superseded to 660634001)

$1.99

$

In Stock, Qty 20+

0

17

Homelite 984897001

Chain Brake Link

$

$

Not available

18

Homelite 95395A

Pin, Roll
(Superseded to 671099001)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 04940

Thrust Washer
(Superseded to 631061001)

$1.49

$

In Stock, only 2 left!

0

20

Homelite 984894001

Clutch & Hardware
(Superseded to 120950007)

$

$

Not available

21

Homelite 984640001

Sprocket, Drum (.325 Pitch)

Note: Includes items 22-23

$

$

Not available

22

Homelite PS04669

Bearing, Needle

$6.49

$

Usually ships in 3-7 days

0

23

Homelite 08981

Ring, Retaining

$4.99

$

In Stock, only 1 left!

0

24

Homelite 04939A

Washer, Cupped
(Superseded to 631060001)

$

$

Not available

25

Homelite PA01106

Drive Case Cover
(Superseded to 300957001)

$

$

Not available

26

Homelite PS02928

Chain Catcher
(Superseded to 631035002)

Note: Includes item 27

$4.99

$

Usually ships in 3-7 days

0

27

Homelite 82541

Screw, Thread Form (10-24 x 1/2")

$1.99

$

In Stock, only 3 left!

0

28

Homelite 81196

Nut, Hex
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0

29

Homelite 985240001

Spring, Compression
(Superseded to 678107001)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite UP08685A

Bumper Spike Kit

$

$

Not available

31

Homelite UP08000A

Adjusting Pin (UT10927 and UT10946)
(Superseded to 308116001)

Note: Do not use with UT10942

$

$

Not available

Homelite 985250001

Chassis Kit
(Superseded to 120950003)

Note: Includes items 31

$41.99

$

Usually ships in 3-7 days

0

Homelite 985030001

Brake Band

$

$

Not available

Homelite 985021001

Cover, Chain Brake

$2.49

$

In Stock, Qty 5

0

Homelite 82623

Screw
(Superseded to 660634001)

$1.99

$

In Stock, Qty 20+

0

Homelite 985240001

Spring
(Superseded to 678107001)

$1.49

$

Usually ships in 3-7 days

0

Homelite 985028001

Chassis
(Superseded to 985250001)

$41.99

$

Usually ships in 3-7 days

0

32

Homelite PS04881

Bar Guide Bolt

$

$

Not available
