UT-10927 - Homelite 16" Chainsaw, 38cc Engine Internal - Oil Pump Parts Diagram

16" Chainsaw, 38cc

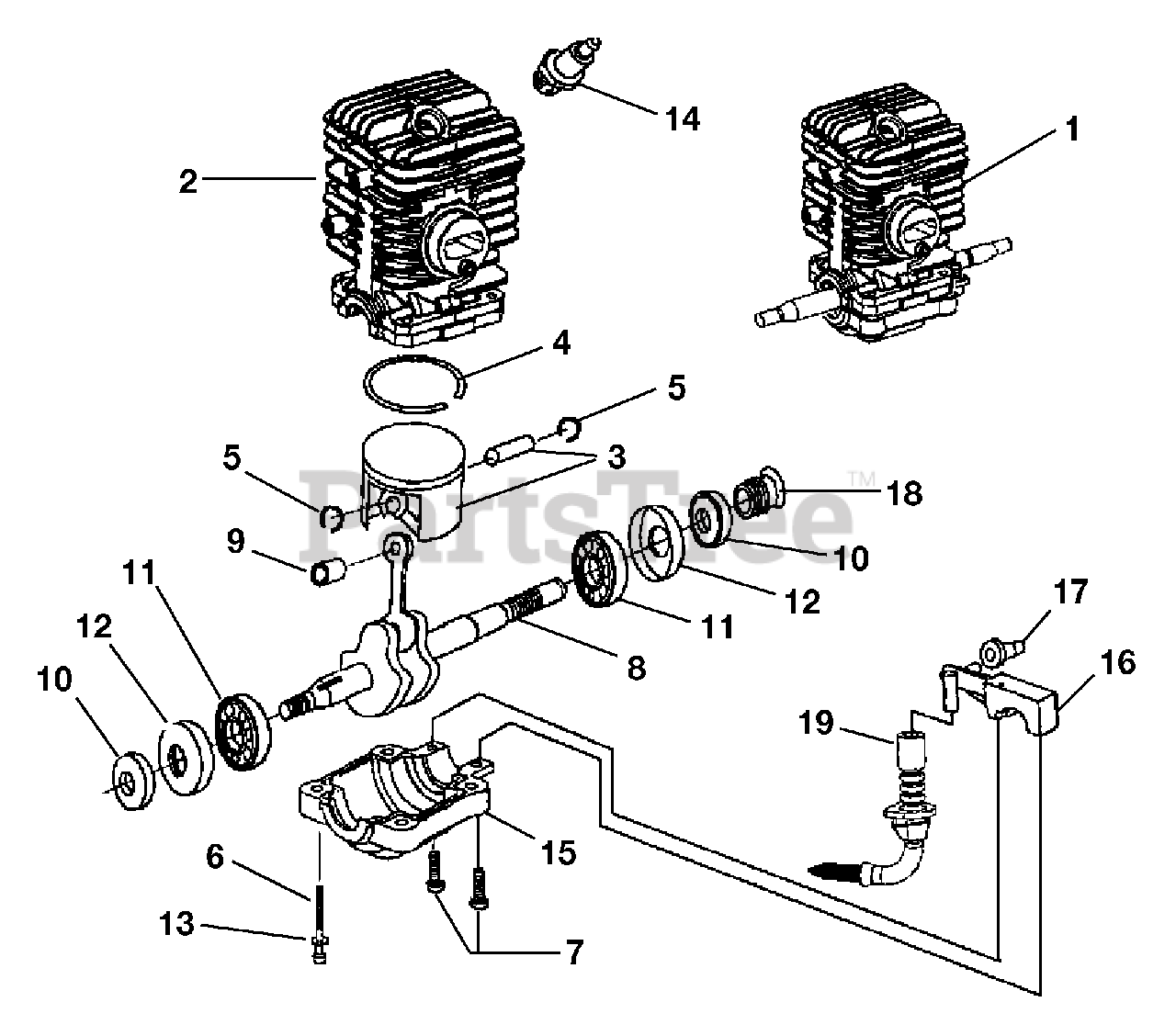

Engine Internal - Oil Pump Parts Diagram

  • Title

1

Homelite UP08656A

Short Block, Complete (45cc)

Note: Includes items 1-13

$

$

Not available

2

Homelite UP08657A

Cylinder Kit (45cc)

Note: Includes item 2

$

$

Not available

Homelite 06839

Gasket, Muffler
(Superseded to 900848001)

Note: (Not Shown)

$2.49

$

In Stock, only 4 left!

0

3

Homelite UP00130A

Piston & Pin (45cc)

Note: Includes items 3-5

$

$

Not available

4

Homelite 09082

Piston Ring

$

$

Not available

5

Homelite 64813

Ring, Retaining

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 82527

Screw, Cap-Socket Hd. (10-24 x 2")
(Superseded to 660622001)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite PS04989

Screw, Pan Hd, Plastite (8-32 x 5/8")
(Superseded to 660627001)

$2.49

$

Usually ships in 3-7 days

0

8

Homelite UP04165A

Crankshaft & Rod Assy

Note: Includes items 8-9

$189.99

$

Usually ships in 3-7 days

0

9

Homelite PS04921

Bearing, Needle

$

$

Not available

10

Homelite 04920

Shaft Seal
(Superseded to 570220001)

$

$

Not available

11

Homelite A04931A

Bearing & Rubber Case
(Superseded to UP04176A)

Note: Includes items 11-12

$

$

Not available

12

Homelite 04919

Bearing Case
(Superseded to 570221001)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 84008

Washer
(Superseded to 671080001)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite PS06216

Spark Plug
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

15

Homelite 09097

Lower Crankcase

$

$

Not available

16

Homelite UP06602

Oil Pump Kit

Note: Includes items 16-7

$

$

Not available

17

Homelite 06841

Grommet, Oil Outlet
(Superseded to 570226001)

Note: (Also included in PA01629 Chassis)

$1.99

$

In Stock, only 4 left!

0

18

Homelite 06847

Left Hand Worm
(Superseded to T610389001)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite PA01037

Oil Intake Tube w/Filter

Note: (Also included in PA01629, Chassis)

$

$

Not available

7

Homelite PS04989

Screw, Pan Hd, Plastite (8-32 x 5/8")
(Superseded to 660627001)

$2.49

$

Usually ships in 3-7 days

0
