UT-10927-D - Homelite 16" Chainsaw, 38cc Starter - Ignition Parts Diagram

16" Chainsaw, 38cc

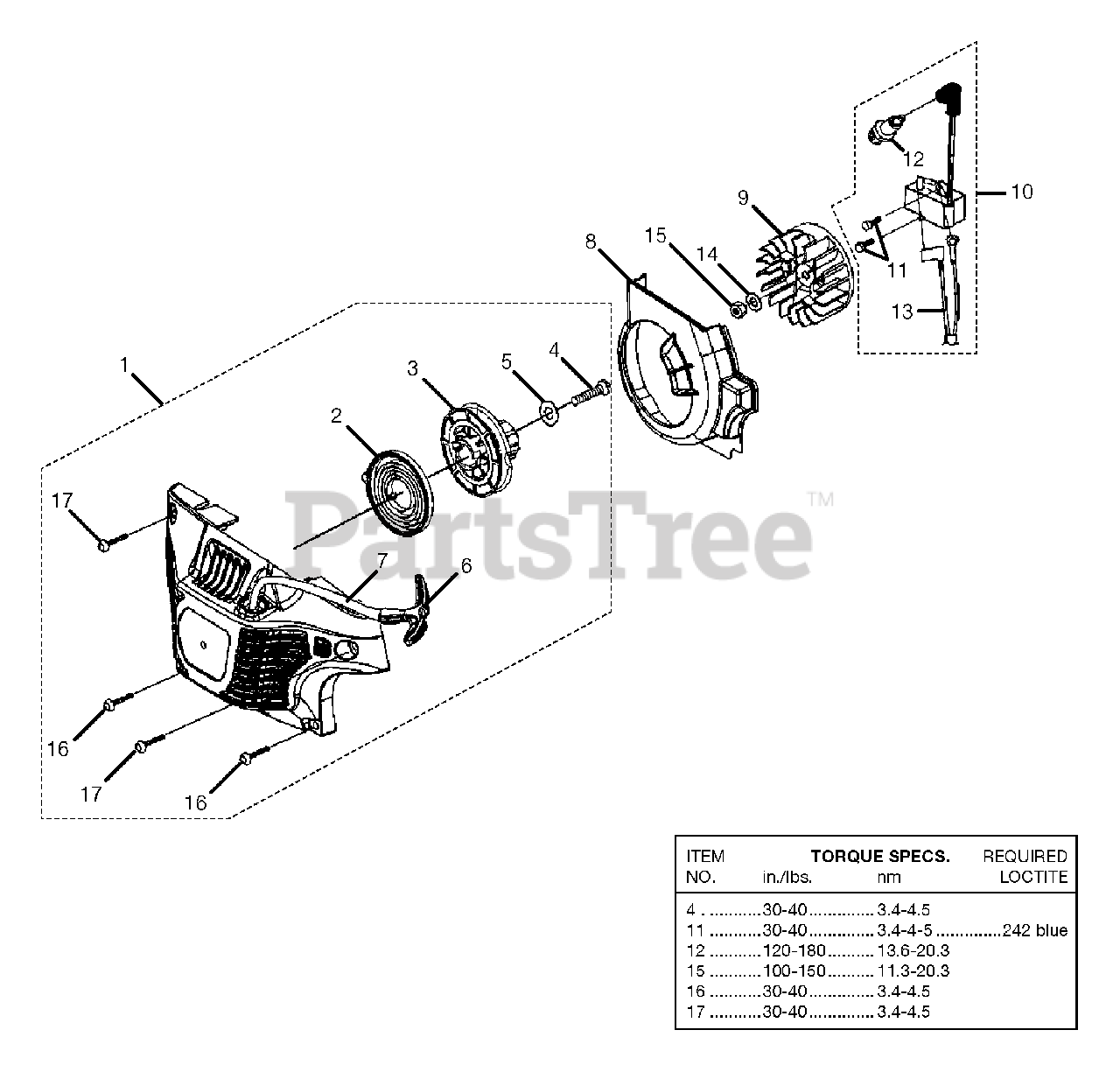

Starter - Ignition Parts Diagram

  • Title

1

Homelite 984687001

STARTER COVER ASSY., W/EYELET
(Superseded to 120900019)

$

$

Not available

2

Homelite PA01330

SPRING & CONTAINER
(Superseded to 308066001)

$4.49

$

In Stock, only 1 left!

0

3

Homelite PS03882

PULLEY, STARTER

$

$

Not available

4

Homelite 82621

SCREW (10-14 x 5/8 in.)

$

$

Not available

5

Homelite 94062

WASHER

$

$

Not available

6

Homelite PS06114

GRIP, STARTER

$

$

Not available

7

Homelite 9789901

ROPE, STARTER (46 in.)
(Superseded to 900849001)

$1.99

$

In Stock, only 3 left!

0

8

Homelite PS03984

BAFFLE
(Superseded to 518055001)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite UP05850A

ROTOR W/STARTER PAWL
(Superseded to 986154001)

$13.99

$

In Stock, only 1 left!

0

10

Homelite 984883001

IGNITION KIT

$81.99

$

In Stock, only 1 left!

0

11

Homelite 82575

SCREW (8-32 x 5/8 in.)
(Superseded to 660639001)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite PS06216

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

13

Homelite PA01311

IGNITION SWITCH HARNESS
(Superseded to 290195002)

$9.49

$

Usually ships in 3-7 days

0

14

Homelite PS84065

WASHER

$

$

Not available

15

Homelite 985730001

NUT
(Superseded to 678123001)

$1.49

$

In Stock, only 1 left!

0

16

Homelite 82620

SCREW (10-14 x 7/8 in.)

$1.99

$

In Stock, Qty 6

0

17

Homelite 82621

SCREW (10-14 x 5/8 in.)

$

$

Not available
