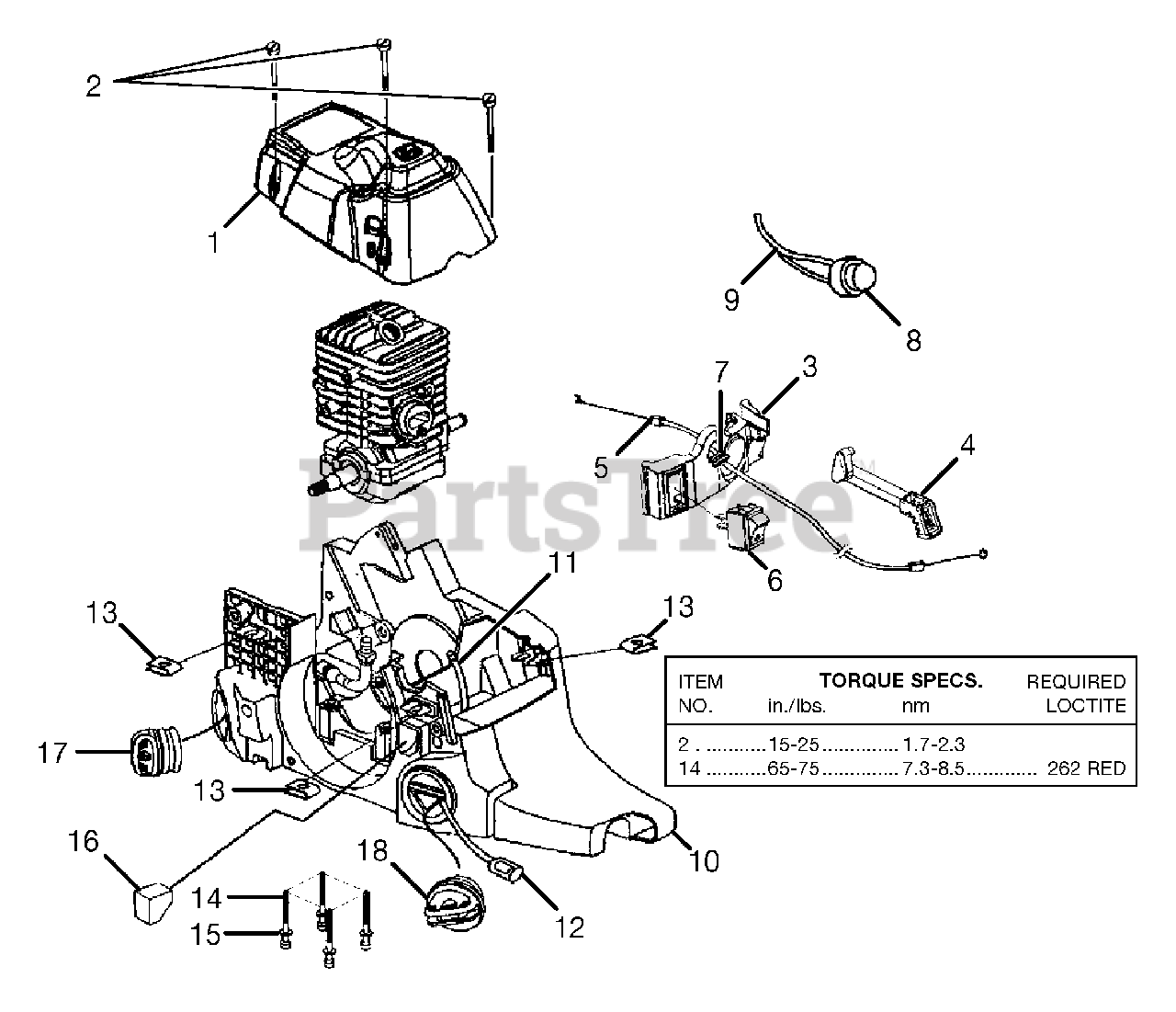

UT-10927-D - Homelite 16" Chainsaw, 38cc Engine Housing - Fuel Tank - Oil Tank Parts Diagram

16" Chainsaw, 38cc

Engine Housing - Fuel Tank - Oil Tank Parts Diagram

  • Title
1

Homelite 984363001

CYLINDER COVER
(Superseded to 518042001)

$

$

Not available

2

Homelite 07597

SCREW (10-16 X 1.5 PAN HD.)
(Superseded to 660636001)

$

$

Not available

3

Homelite PS06119

CONTROL PANEL

$

$

Not available

4

Homelite PA01644

ROD, CHOKE

$

$

Not available

5

Homelite PS04377

THROTTLE CABLE
(Superseded to 900885001)

$

$

Not available

6

Homelite PS06163

SWITCH, ROCKER

$3.99

$

Usually ships in 3-7 days

0

7

Homelite 07587

GROMMET - SPLIT
(Superseded to 570227001)

$1.99

$

In Stock, only 1 left!

0

8

Homelite PS06164

PRIMER BULB
(Superseded to 308088001)

$

$

Not available

9

Homelite 0745434

RUBBER TUBING (5-1/2 in.)

Note: Item comes standard 8 1/2" in length. Item #9 should be cut to 5 1/2".

$

$

Not available

10

Homelite 985028001

CHASSIS ASSEMBLY (45CC)
(Superseded to 985250001)

$41.99

$

Usually ships in 3-7 days

0

11

Homelite 0745434

RUBBER TUBING (8-1/2 in.)

Note: Item comes standard 8 1/2" in length.

$

$

Not available

12

Homelite PS03380

FUEL FILTER
(Superseded to 300759003)

$

$

Not available

13

Homelite 07598

SPEED NUT

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 82527

SCREW (10-24 x 2 in.)
(Superseded to 660622001)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 84008

WASHER
(Superseded to 671080001)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite PS05070

PRE FILTER

$

$

Not available

17

Homelite PA01646

OIL CAP
(Superseded to 300949001)

$1.49

$

In Stock, only 1 left!

0

18

Homelite PA01645

FUEL CAP
(Superseded to 300948001)

$

$

Not available

Homelite 985219001

STARTING INSTRUCTION

$

$

Not available

Homelite 985220001

CHAIN BRAKE DECALS: 16 in. (38cc)

$

$

Not available

Homelite PS06327

KICKBACK

$2.49

$

Usually ships in 3-7 days

0

Homelite PS06313

DRIVECASE COVER

$2.49

$

Usually ships in 3-7 days

0

Homelite PS06312

STARTER HOUSING DECALS: 18 in. (45cc)

$

$

Not available

$

$

Not available

Homelite PS06079

DRIVECASE COVER

$2.49

$

Usually ships in 3-7 days

0

Homelite PS04481

STARTER HOUSING DECALS: 20 in. (45cc)
(Superseded to 940299373)

$

$

Not available

Homelite PS06293

KICKBACK

$

$

Not available

Homelite PS06079

DRIVECASE COVER

$2.49

$

Usually ships in 3-7 days

0

Homelite PS04481

STARTER HOUSING
(Superseded to 940299373)

$

$

Not available
