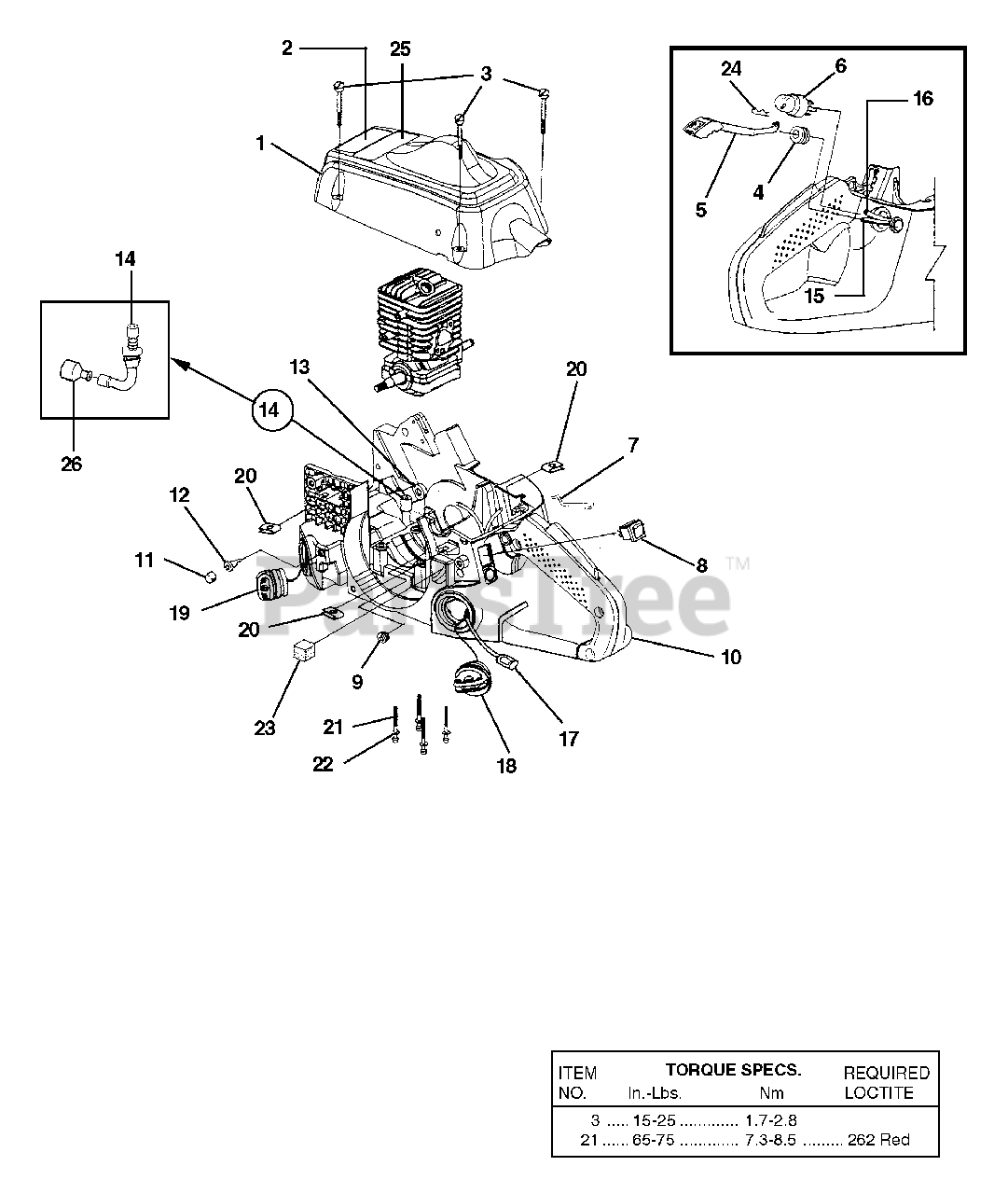

UT-10901-B - Homelite 14" Chainsaw, 33cc Engine Housing- Fuel Tank- Oil Tank Parts Diagram

14" Chainsaw, 33cc

Engine Housing- Fuel Tank- Oil Tank Parts Diagram

  • Title
1

Homelite A09162A

Cylinder Cover Kit

Note: Includes items 1-3

$

$

Not available

2

Homelite PS06324

Safety Decal
(Superseded to 940299425)

$

$

Not available

3

Homelite 07597

Screw-Slotted Pan Hd.
(Superseded to 660636001)

$

$

Not available

4

Homelite 64862

Grommet
(Superseded to 570219001)

$

$

Not available

5

Homelite PS06280

Rod, Choke

$

$

Not available

6

Homelite 01183

Bulb,Air Purge
(Superseded to 300780002)

$

$

Not available

7

Homelite PS01591

Throttle Wire
(Superseded to 631078002)

$

$

Not available

8

Homelite PS02369

Switch, Rocker

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 07587

Grommet-Split
(Superseded to 570227001)

$1.99

$

In Stock, only 1 left!

0

10

Homelite UP06751A

Engine Housing

Note: Includes items 10-19

$90.99

$

In Stock, only 1 left!

0

11

Homelite 07403

Element, Filter (Bronze)
(Superseded to 671088001)

$

$

Not available

12

Homelite 03134

Duck Bill Valve
(Superseded to 560955001)

$2.49

$

In Stock, Qty 9

0

13

Homelite 06841

Oil Outlet Grommet
(Superseded to 570226001)

$1.99

$

In Stock, only 4 left!

0

14

Homelite PA01037

Oil Intake Tube

$

$

Not available

15

Homelite 0745422

Rubber Tubing (5 1/2")

$9.49

$

In Stock, only 1 left!

0

16

Homelite 0745434

Rubber Tubing (8 1/2")

$

$

Not available

17

Homelite PS03380

Fuel Filter
(Superseded to 300759003)

$

$

Not available

18

Homelite DA07590

Fuel Cap w/Retainer
(Superseded to 300948001)

$

$

Not available

19

Homelite DA07591

Oil Cap w/Retainer
(Superseded to 090038001001)

$1.49

$

Usually ships in 3-7 days

0

Homelite A68593

Oil Filter (See No.26)

$

$

Not available

Homelite PS04881

Guide Bar Bolt

Note: (Not Shown)

$

$

Not available

20

Homelite 07598

Speed Nut ("U-Type")

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 82527

Screw, Cap-Socket Hd. (10-24 x 2")
(Superseded to 660622001)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 84008

Washer
(Superseded to 671080001)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite PS05070

Pre Filter

$

$

Not available

24

Homelite 08939

Spring Clip (Choke Rod)

$

$

Not available

25

Homelite PS03893

Kick back-Decal
(Superseded to 984601001)

$

$

Not available

26

Homelite A68593

Oil Filter

$

$

Not available
