UT-10901-B - Homelite 14" Chainsaw, 33cc Carburetor - Muffler - Air Filter Parts Diagram

14" Chainsaw, 33cc

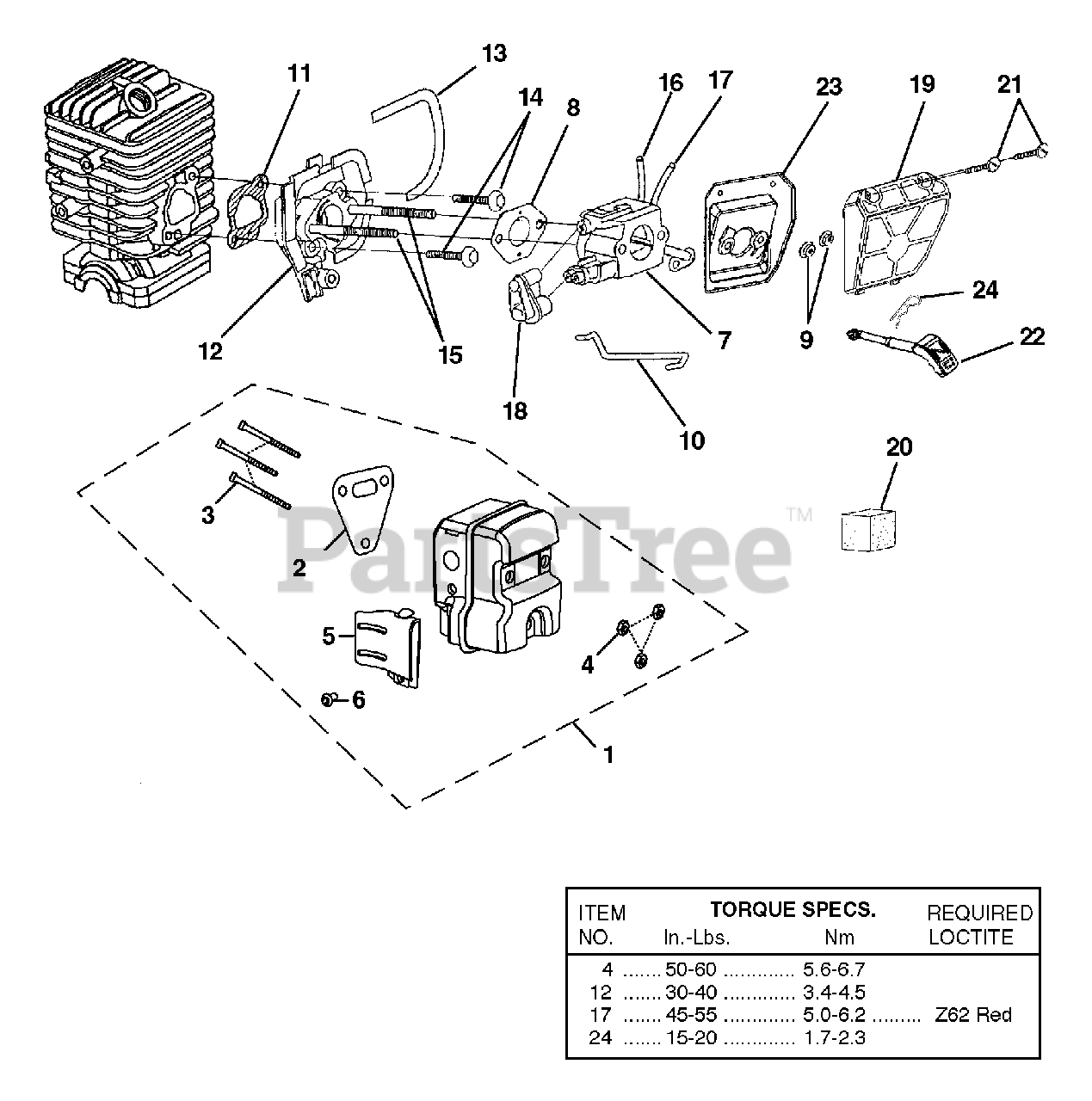

Carburetor - Muffler - Air Filter Parts Diagram

  • Title
1

Homelite 300940004

Muffler Kit

$

$

Currently unavailable

2

Homelite 900848001

Muffler Gasket
(Superseded to 06839)

$2.49

$

In Stock, only 4 left!

0

3

Homelite PS04525

Screw-Square Hd.
(Superseded to 660626001)

$

$

Not available

4

Homelite 81206

Nut-Locking Hex (10-32)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

5

Homelite PS 06075

Deflector, Muffler

$

$

Not available

6

Homelite 95922

Screw (8-32 X .312 Pan Hd.)
(Superseded to 660624001)

$

$

Not available

7

Homelite 300939004

Carburetor Assembly

Note: Includes item 7-9

$

$

Not available

8

Homelite 98339

Carburetor Gasket
(Superseded to 900843001)

$

$

Not available

9

Homelite 07589

Flange Nut (10-24)

$1.99

$

In Stock, only 1 left!

0

10

Homelite PS01591

Throttle Wire
(Superseded to 631078002)

$

$

Not available

11

Homelite 06840A

Gasket, Heat Dam

$

$

Not available

12

Homelite 04916

Carburetor Spacer

$

$

Not available

13

Homelite 06873

Seal, Heat Dam

$

$

Not available

14

Homelite 983699011

Screw, Truss Hd. Taptite (10-24 x 7/8")
(Superseded to 660616001)

$

$

Not available

15

Homelite 06852

Screw, Carburetor

$4.99

$

In Stock, only 1 left!

0

16

Homelite 0745434

Fuel Line (Tank to Carburetor 8 1/2")

$

$

Not available

17

Homelite 0745408

Fuel Line (Carburetor to Purge Bulb 2")

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 04907

Carburetor Grommet

$

$

Not available

Homelite UP06753A

Air Filter Kit

Note: Includes item 18-21

$

$

Not available

19

Homelite 04938

Air Filter Cover

$

$

Not available

20

Homelite PS05070

Pre Filter (In engine housing)

$

$

Not available

21

Homelite 82617

Screw-Slotted Pan Hd. (8-16 x 5/8")

$1.99

$

In Stock, only 2 left!

0

22

Homelite PS06280

Rod, Choke

$

$

Not available

23

Homelite 04937

Air Filter Plate

$

$

Not available

24

Homelite 08939

Spring Clip (Choke Rod)

$

$

Not available
