UT-10680 - Homelite 18" Chainsaw, 42cc Figure D Parts Diagram

18" Chainsaw, 42cc

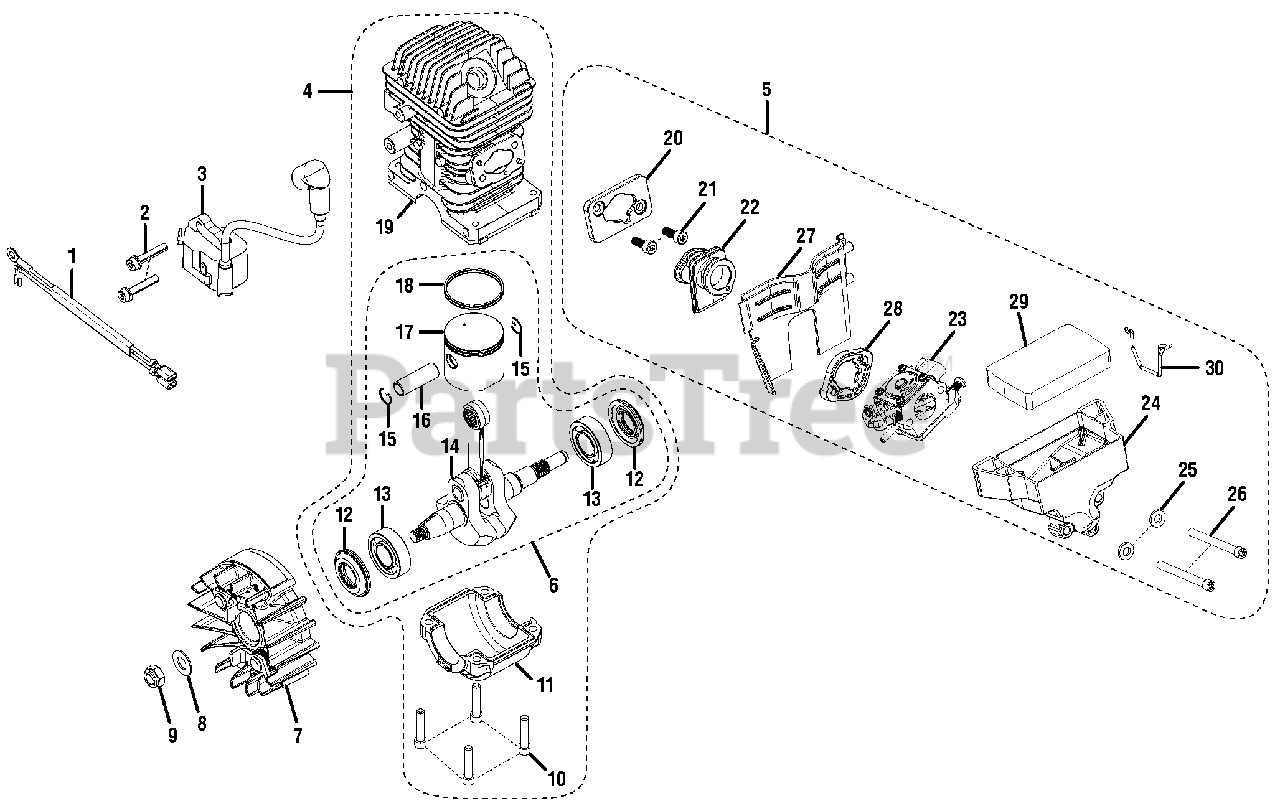

Figure D Parts Diagram

  • Title
1

Homelite 290298001

Ignition Switch Harness

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 660613001

Bolt (M5 x 25.4 mm)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 309261001

Ignition Module
(Superseded to 309261004)

$

$

Not available

4

Homelite 309892002

Short Block Assembly

Note: (Inc. Key Nos. 10-19)

$94.99

$

Usually ships in 3-7 days

0

5

Homelite 310503002

Intake Assembly

Note: (Inc. Key Nos. 20-31)

$45.99

$

Usually ships in 3-7 days

0

6

Homelite 310041002

Crankshaft & Piston Assembly

Note: (Inc. Key Nos. 12-18)

$54.99

$

In Stock, only 1 left!

0

7

Homelite 309010003

Flywheel Assembly

$

$

Not available

8

Homelite 631049001

Washer
(Superseded to PS84065)

$

$

Not available

9

Homelite 678067001

Flywheel Nut

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 660607002

Screw (M5 x 24 mm)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 640251001

Crankshaft Case

$6.99

$

Usually ships in 3-7 days

0

12

Homelite 570090001

Crankshaft Seal

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 678048001

Ball Bearing

$4.49

$

Usually ships in 3-7 days

0

14

Homelite 309163003

Crankshaft & Rod Assembly

$

$

Not available

15

Homelite 678053001

Spring Retainer

$1.99

$

In Stock, only 3 left!

0

16

Homelite 620579001

Piston Pin

$1.99

$

Usually ships in 3-7 days

0

17

$

$

Not available

18

Homelite 690161006

Piston Ring

$1.99

$

In Stock, only 3 left!

0

19

$33.99

$

Usually ships in 3-7 days

0

20

Homelite 678695001

Press Plate, Cylinder

$2.49

$

In Stock, only 4 left!

0

21

Homelite 661600001

Bolt (M5 x 14 mm)

$1.99

$

In Stock, only 4 left!

0

22

Homelite 570757001

Intake Boot

$

$

Not available

23

Homelite 300939006

Carburetor
(Superseded to 309362003)

$74.99

$

Usually ships in 3-7 days

0

24

Homelite 518762002

Air Filter Box

$2.49

$

Usually ships in 3-7 days

0

25

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 661600002

Bolt (M5 x 50 mm)

$1.49

$

Usually ships in 3-7 days

0

27

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 678694001

Press Plate, Carb

$2.49

$

In Stock, only 4 left!

0

29

Homelite 901652001

Air Filter

$

$

Not available

30

Homelite 678603001

Throttle Rod

$1.49

$

In Stock, Qty 5

0
