UT-10640 - Homelite 14" Chainsaw, 42cc Figure A Parts Diagram

14" Chainsaw, 42cc

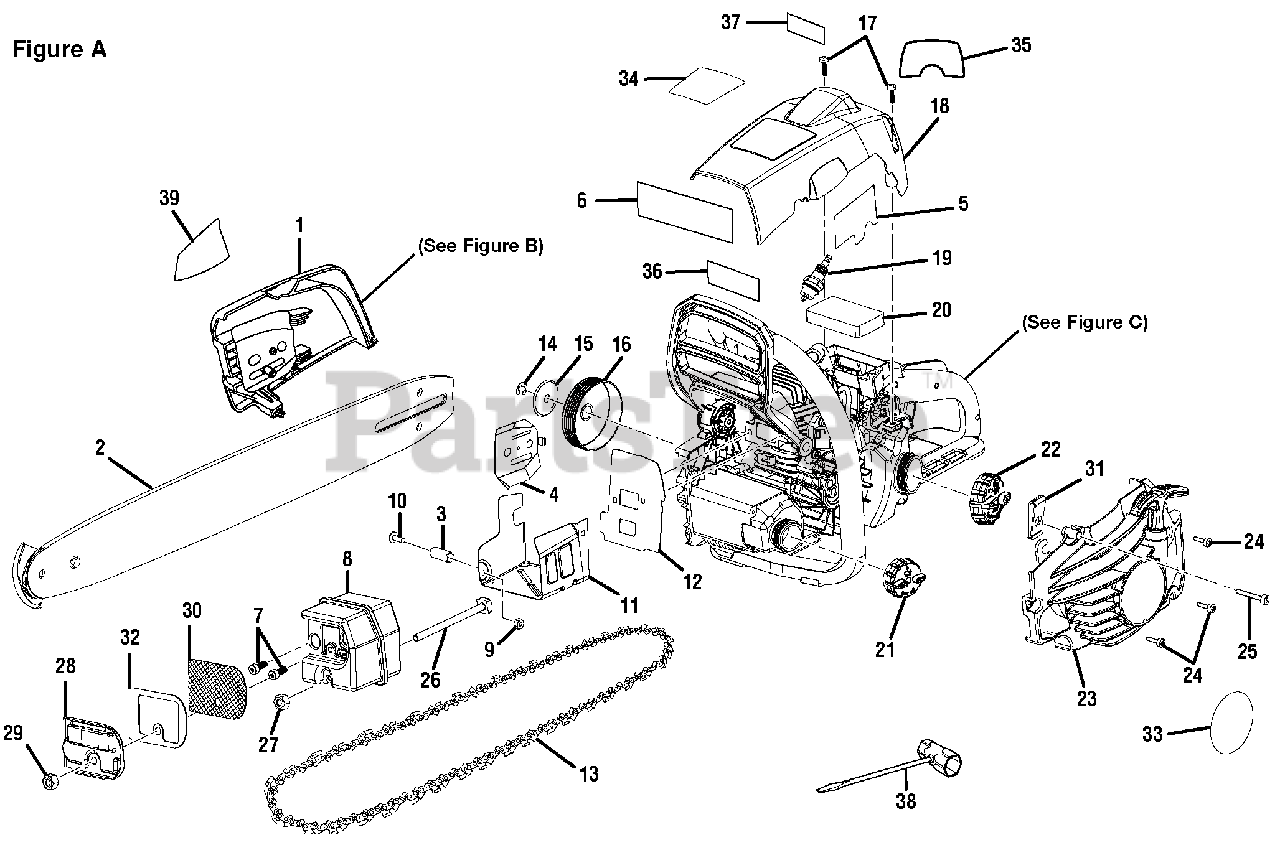

Figure A Parts Diagram

  • Title

1

Homelite 310508014

Chain Cover Assembly
(Superseded to 310508011)

$

$

Not available

2

Homelite 310625001

Guide Bar with SAFE-T-TIP: UT10640 - 14 in

$

$

Not available

Homelite 310626001

Guide Bar with SAFE-T-TIP: UT10660 - 16 in
(Superseded to 311027003)

$

$

Not available

Homelite 310627001

Guide Bar with SAFE-T-TIP: UT10680 - 18 in
(Superseded to 311028003)

$

$

Not available

3

Homelite 678602001

Insert

$1.99

$

In Stock, only 4 left!

0

4

Homelite 638515002

Inner Guide Plate

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 700150004

Heat Shield Tape

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 700150002

Heat Shield Tape

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 660612001

Screw (1/4-20 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 309315006

Muffler Assembly

$

$

Not available

9

Homelite 678027002

Lock Nut (10-24)
(Superseded to 678027001)

$

$

Not available

10

Homelite 660754001

Screw (10-24 x 5/8 in.)

$

$

Not available

11

Homelite 638278002

Heat Shield
(Superseded to 638278004)

$5.99

$

Usually ships in 3-7 days

0

12

Homelite 901653003

Muffler Gasket

$

$

Not available

13

Homelite 901212001

Chain (3/8 in.): UT10640 - 52 link, 14 in

$32.99

$

In Stock, only 2 left!

0

Homelite 901212002

Chain (3/8 in.): 56 link, 16 in
(Superseded to 984296008)

$

$

Not available

Homelite 671258001

Chain (3/8 in.): 62 link, 18 in

$

$

Not available

14

Homelite 671103001

E-Clip
(Superseded to 08981)

$4.99

$

In Stock, only 1 left!

0

15

Homelite 631060001

Clutch Washer

$

$

Not available

16

Homelite 309410003

Sprocket Drum and Bearing Assembly

$10.99

$

In Stock, only 1 left!

0

17

Homelite 660504001

Screw (10-16 x 16 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 518776006

Cylinder Cover
(Superseded to 518776001)

$

$

Not available

19

Homelite 870170001

Spark Plug (Champion RCJ4)

$10.99

$

Usually ships in 3-7 days

0

20

Homelite 901652001

Air Filter

$

$

Not available

21

Homelite 310560009

Oil Cap Assembly

$9.49

$

In Stock, only 1 left!

0

22

Homelite 310561011

Fuel Cap Assembly

$5.49

$

Usually ships in 3-7 days

0

23

Homelite 310502014

Starter Cover Assembly

$

$

Not available

24

Homelite 660505001

Screw (M4 x 17 mm)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 660548001

Screw (#10-16 x 24 mm, T25 Torx)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 660626002

Screw (#10-32 x 2.8 in.)

$

$

Not available

27

Homelite 671079001

Nut (#10-32)

$1.49

$

In Stock, Qty 6

0

28

Homelite 638513003

Exhaust Cover

$1.99

$

In Stock, only 1 left!

0

29

Homelite 678065002

Nut, Muffler (M5)

$1.49

$

In Stock, only 2 left!

0

30

Homelite 638514002

Screen

$1.99

$

In Stock, only 3 left!

0

31

Homelite 671077004

U-Nut

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 901653004

Exhaust Cover Gasket

$1.49

$

In Stock, only 2 left!

0

33

Homelite 941509007

Starter Cover Labels: UT10640 - 42cc

$1.49

$

Usually ships in 3-7 days

0

Homelite 941509008

Starter Cover Labels: UT10660 - 42cc

$1.49

$

Usually ships in 3-7 days

0

Homelite 941509009

Starter Cover Labels: UT10680 - 42cc

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 940777012

Warning Labels: UT10640 - 42cc

$

$

Not available

Homelite 940777013

Warning Labels: UT10660 - 42cc

$

$

Not available

Homelite 940777014

Warning Labels: UT10680 - 42cc

$

$

Not available

35

Homelite 940686124

Starting Instruction Label
(Superseded to 940734033)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 940793001

Chain Brake Label

$

$

Not available

37

Homelite 940654088

Warning Label (Combustion)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 631055005

Combination Wrench

$5.99

$

Usually ships in 3-7 days

0

39

Homelite 940635072

Chain Cover Labels: UT10640 - 42cc

$

$

Not available

Homelite 940635073

Chain Cover Labels: UT10660 - 42cc

$

$

Not available

Homelite 940635074

Chain Cover Labels: UT10680 - 42cc

$

$

Not available

Homelite 580438003

Scabbard: UT10640 - 14 in

Note: Not Shown

$

$

Not available

Homelite 518061003

Scabbard: UT10660 - 14 in

Note: Not Shown

$

$

Not available

Homelite 518061002

Scabbard: UT10680 - 14 in

Note: Not Shown

$

$

Not available

Homelite 308365001

Carrying Case (Scabbard Not Included)

Note: Not Shown

$47.99

$

Usually ships in 3-7 days

0

Homelite 990000142

Operator's Manual

Note: Not Shown

$

$

Not available
