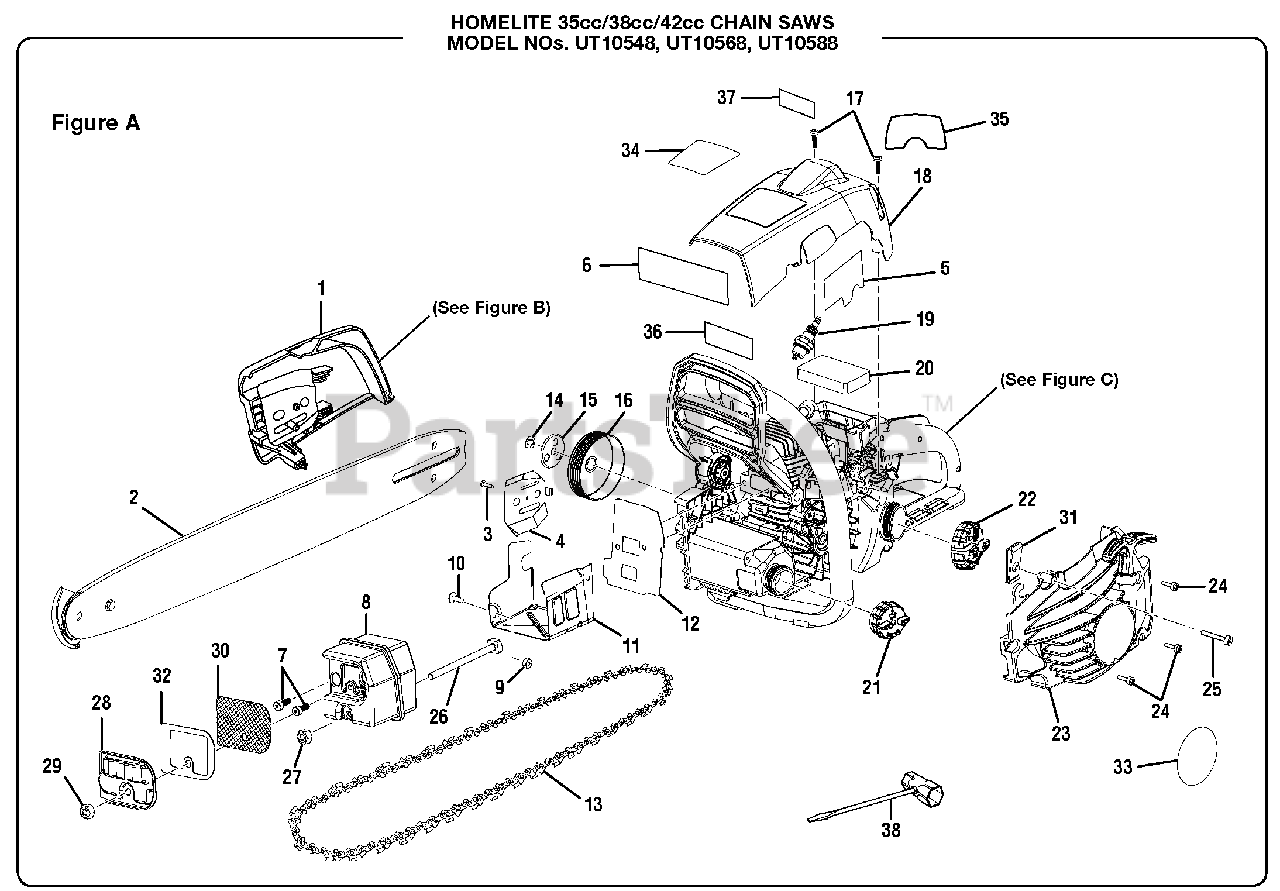

UT-10588 - Homelite 18" Chainsaw, 42cc Figure A Parts Diagram

18" Chainsaw, 42cc

Figure A Parts Diagram

  • Title

1

Homelite 310508011

Chain Cover Assembly

$

$

Not available

2

Homelite 310625001

Guide Bar with SAFE-T-TIP:

Note: UT10548 - 14 in

$

$

Not available

Homelite 310626001

Guide Bar with SAFE-T-TIP:
(Superseded to 311027003)

Note: UT10568 - 16 in

$

$

Not available

Homelite 310627001

Guide Bar with SAFE-T-TIP:
(Superseded to 311028003)

Note: UT10588 - 18 in

$

$

Not available

3

Homelite T660619001

Screw (6-19 x 1/2 in.)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 638515001

Inner Guide Plate

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 700150004

Heat Shield Tape

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 700150002

Heat Shield Tape

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 660612001

Screw (1/4-20 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 309315006

Muffler Assembly

$

$

Not available

9

Homelite 678027002

Lock Nut (10-24)
(Superseded to 678027001)

$

$

Not available

10

Homelite 660754001

Screw (10-24 x 5/8 in.)

$

$

Not available

11

Homelite 638278002

Heat Shield
(Superseded to 638278004)

$5.99

$

Usually ships in 3-7 days

0

12

Homelite 901653003

Muffler Gasket

$

$

Not available

13

Homelite 901212001

Chain (3/8 in.):- 52 link

Note: UT10548, 14 in

$32.99

$

In Stock, only 2 left!

0

Homelite 901212002

Chain (3/8 in.):- 56 link
(Superseded to 984296008)

Note: UT10568, 16 in

$

$

Not available

Homelite 671258001

Chain (3/8 in.):- 62 link

Note: UT10588, 18 in

$

$

Not available

14

Homelite 671103001

E-Clip
(Superseded to 08981)

$4.99

$

In Stock, only 1 left!

0

15

Homelite 678070001

Clutch Washer

$

$

Not available

16

Homelite 309410003

Sprocket Drum and Bearing Assembly (.375 chain)

$10.99

$

In Stock, only 1 left!

0

17

Homelite 660504001

Screw (10-16 x 16 mm)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 518776003

Cylinder Cover
(Superseded to 518776001)

$

$

Not available

19

Homelite 870170001

Spark Plug (Champion RCJ4)

$10.99

$

Usually ships in 3-7 days

0

20

Homelite 901652001

Air Filter

$

$

Not available

21

Homelite 310560003

Oil Cap Assembly

$

$

Not available

22

Homelite 310561004

Fuel Cap Assembly

$

$

Not available

23

Homelite 310502009

Starter Cover Assembly

$

$

Not available

24

Homelite 660505001

Screw (M4 x 17 mm)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 660548001

Screw (#10-16 x 24 mm, T25 Torx)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 660626002

Screw (#10-32 x 2.8 in.)

$

$

Not available

27

Homelite 671079001

Nut (#10-32)

$1.49

$

In Stock, Qty 6

0

28

Homelite 638513003

Exhaust Cover

$1.99

$

In Stock, only 1 left!

0

29

Homelite 678065002

Nut, Muffler (M5)

$1.49

$

In Stock, only 2 left!

0

30

Homelite 638514002

Screen

$1.99

$

In Stock, only 3 left!

0

31

Homelite 671077004

U-Nut

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 901653004

Exhaust Cover Gasket

$1.49

$

In Stock, only 2 left!

0

33

Homelite 941509001

Starter Cover Labels:

Note: UT10548 - 35 cc

$

$

Not available

Homelite 941509002

Starter Cover Labels:

Note: UT10568 - 38 cc

$

$

Not available

Homelite 941509003

Starter Cover Labels:

Note: UT10588 - 42 cc

$

$

Not available

34

Homelite 940777012

Warning Labels:

Note: UT10548 - 35 cc

$

$

Not available

Homelite 940777013

Warning Labels:

Note: UT10568 - 38 cc

$

$

Not available

Homelite 940777014

Warning Labels:

Note: UT10588 - 42 cc

$

$

Not available

35

Homelite 940734033

Starting Instruction Label

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 940793001

Chain Brake Label

$

$

Not available

37

Homelite 940654088

Warning Label (Combustion)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 631055005

Combination Wrench

$5.99

$

Usually ships in 3-7 days

0

Homelite 580438003

Scabbard:

Note: (Not Shown) UT10548 - 14 in

$

$

Not available

Homelite 518061003

Scabbard:

Note: (Not Shown) UT10568 - 16 in

$

$

Not available

Homelite 518061002

Scabbard:

Note: (Not Shown) UT10588 - 18 in

$

$

Not available

Homelite 988000561

Operator's Manual

Note: (Not Shown)

$

$

Not available
