UT-10530-A - Homelite 16" Chainsaw, 33cc Starter - Ignition Parts Diagram

16" Chainsaw, 33cc

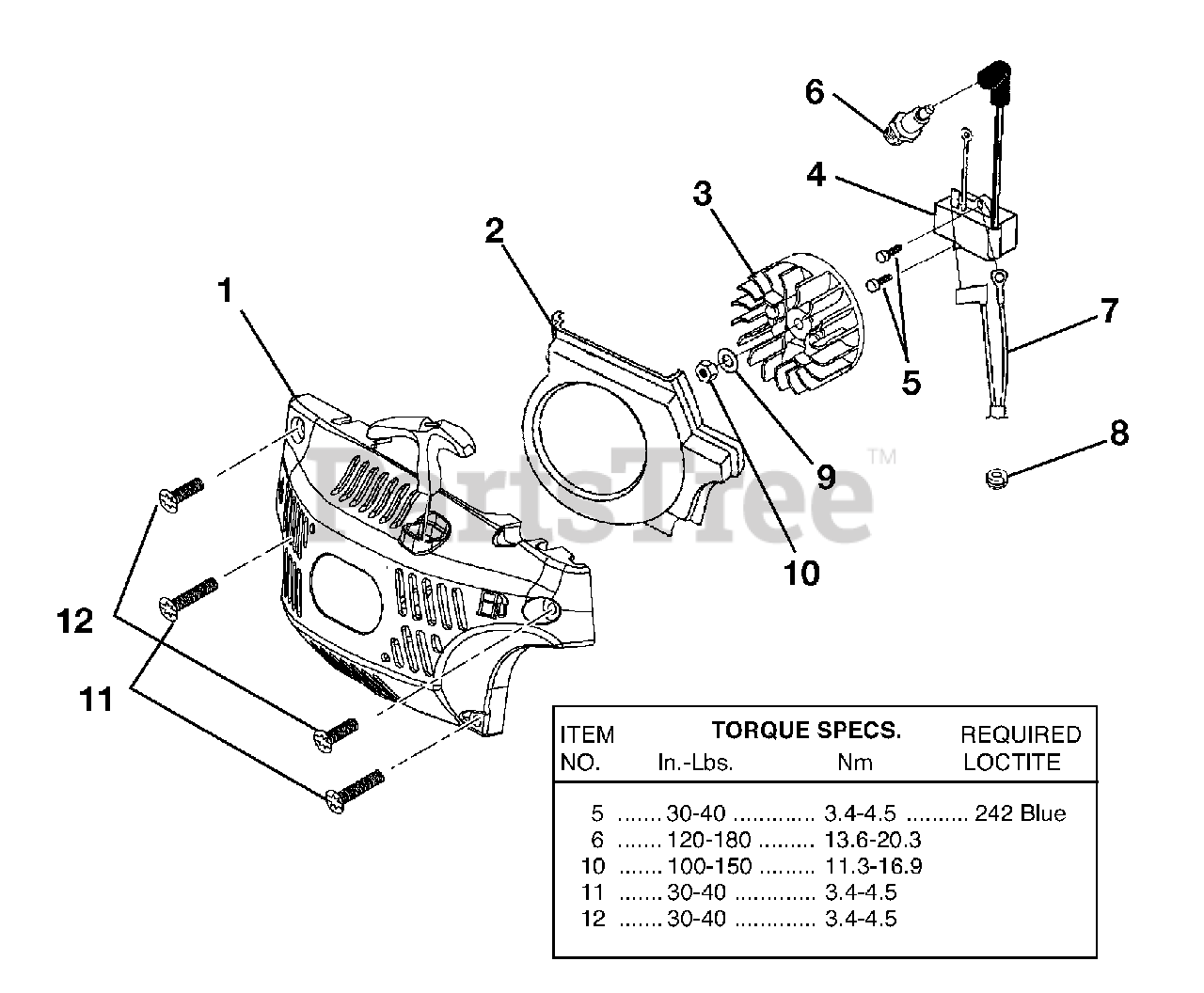

Starter - Ignition Parts Diagram

  • Title
1

Homelite 300982011

Starter Cover Assembly

$

$

Not available

2

Homelite 511727001

Baffle, Fan Housing
(Superseded to 06876)

$6.99

$

Usually ships in 3-7 days

0

3

Homelite 300952001

Rotor & Starter Pawl
(Superseded to 300952002)

$13.99

$

In Stock, only 1 left!

0

4

Homelite 300953001

Ignition Kit
(Superseded to PS03634)

Note: (33cc models)

$

$

Not available

5

Homelite 660639001

Screw, Thread Form (8-32 x 5/8")

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 870170001

Spark Plug

$10.99

$

Usually ships in 3-7 days

0

7

Homelite 290195002

Ignition Switch Harness

$9.49

$

Usually ships in 3-7 days

0

8

Homelite 570227001

Grommet, Wire Harness (Split)

$1.99

$

In Stock, only 1 left!

0

9

Homelite 631049001

Washer, Flat
(Superseded to PS84065)

$

$

Not available

10

$1.49

$

In Stock, only 1 left!

0

11

Homelite 660637001

Screw, Truss Hd., Plastite (10-14 x 7/8")
(Superseded to 82620)

$1.99

$

In Stock, Qty 6

0

12

Homelite 660632001

Screw, Truss Hd., Plastite (10-14 x 5/8")
(Superseded to 82621)

$

$

Not available
