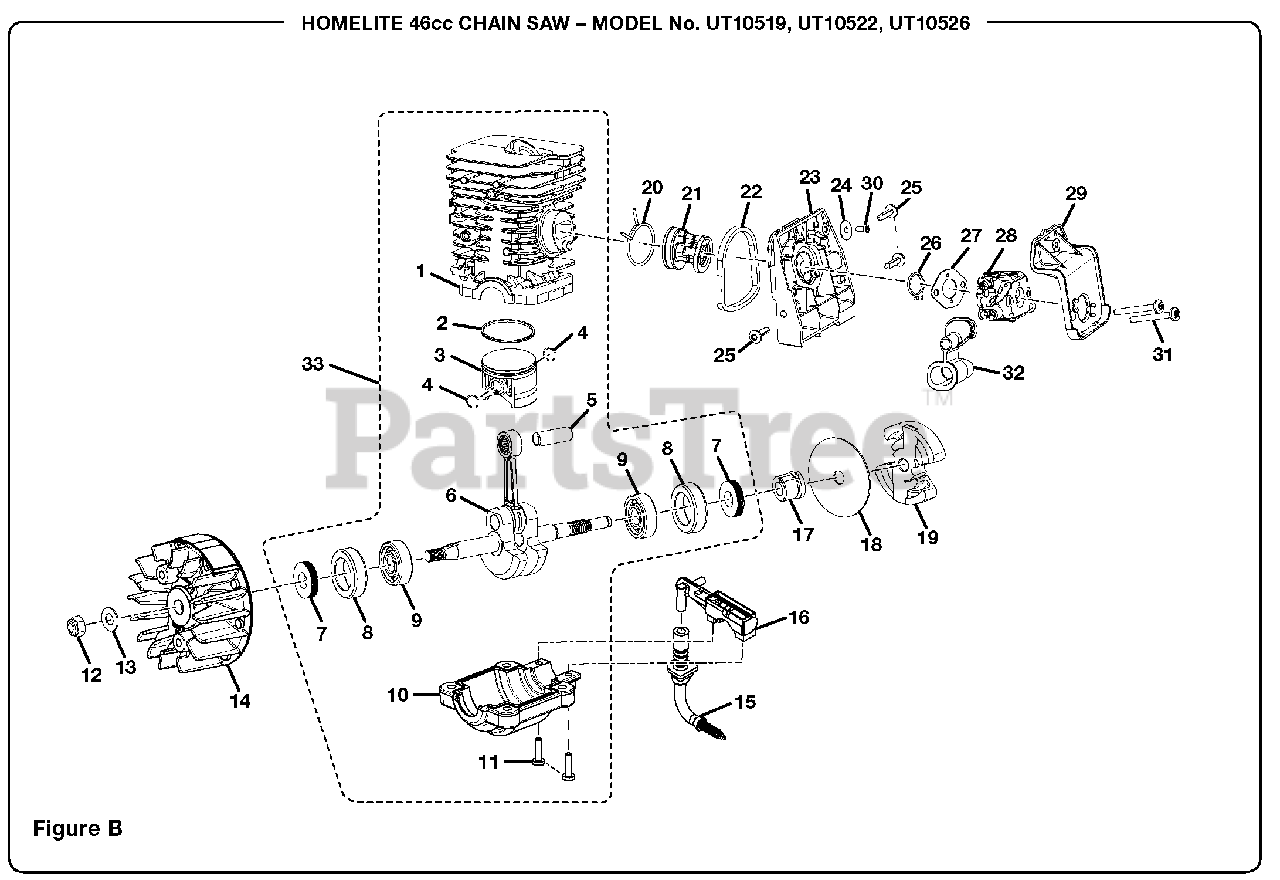

UT-10519 - Homelite Chainsaw, 46cc Figure B Parts Diagram

Chainsaw, 46cc

Figure B Parts Diagram

  • Title

1

Homelite 640200007

Cylinder

$52.99

$

Usually ships in 3-7 days

0

2

Homelite 678747001

Piston Ring

$

$

Not available

3

Homelite 640350003

Piston

$7.99

$

Usually ships in 3-7 days

0

4

Homelite 678183001

Retaining Ring

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 620392001

Piston Pin

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 309160001

Crankshaft Assembly

$48.99

$

Usually ships in 3-7 days

0

7

Homelite 570220001

Shaft Seal

$

$

Not available

8

Homelite 570221001

Bearing Case

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 671089002

Ball Bearing

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 640843001

Crankcase
(Superseded to 09097)

$

$

Not available

11

Homelite 660627001

Screw (8-32 x 5/8 in.)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 678123001

Hex Nut (5/16-24)

$1.49

$

In Stock, only 1 left!

0

13

Homelite 631049001

Washer
(Superseded to PS84065)

$

$

Not available

14

Homelite 308084001

Flywheel Assembly

$14.99

$

Usually ships in 3-7 days

0

15

Homelite 300950001

Oil Intake Tube Assembly
(Superseded to PA01037)

$

$

Not available

16

Homelite 300945001

Oil Pump Assembly
(Superseded to PA01396)

$

$

Not available

17

Homelite T610389001

Left Hand Worm

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 631061001

Thrust Washer

$1.49

$

In Stock, only 2 left!

0

19

Homelite 300960003

Clutch Assembly

$

$

Not available

20

Homelite 671267001

Wire Clamp
(Superseded to PS04309)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 570243001

Intake Boot
(Superseded to PS02794)

$13.99

$

Usually ships in 3-7 days

0

22

Homelite 518047001

Carburetor Adaptor Seal
(Superseded to PS04374)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 308081001

Carburetor Adapter

$11.99

$

Usually ships in 3-7 days

0

24

Homelite 671072001

Washer
(Superseded to 12789)

$

$

Not available

25

Homelite 660629001

Screw (10-14 x 3/4 in.)
(Superseded to 82563)

$1.99

$

In Stock, Qty 6

0

26

Homelite 518045001

Carburetor Plate
(Superseded to PS04375)

$

$

Not available

27

Homelite 900886002

Carburetor Gasket

$1.99

$

In Stock, Qty 5

0

28

Homelite 309364001

Carburetor Assembly (Zama)

$230.99

$

Usually ships in 3-7 days

0

Homelite 309360001

Carburetor Assembly (Ruixing)

$45.99

$

In Stock, only 1 left!

0

29

Homelite 518048003

Air Filter Base

$

$

Currently unavailable

30

Homelite 660634001

Screw (8-16 x 5/16 in.)

$1.99

$

In Stock, Qty 20+

0

31

Homelite 660655001

Screw (10-32 x 1 3/4 in.)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 570242001

Grommet
(Superseded to PS04371)

$

$

Not available

33

Homelite 309890003

Short Block Assembly (Inc. Key Nos. 1-11)

$124.99

$

Usually ships in 3-7 days

0
