UT-09526 (090155044) - Homelite Blower, 26cc, Revision 02 (2017-09) Figure B Parts Diagram

Blower, 26cc, Revision 02

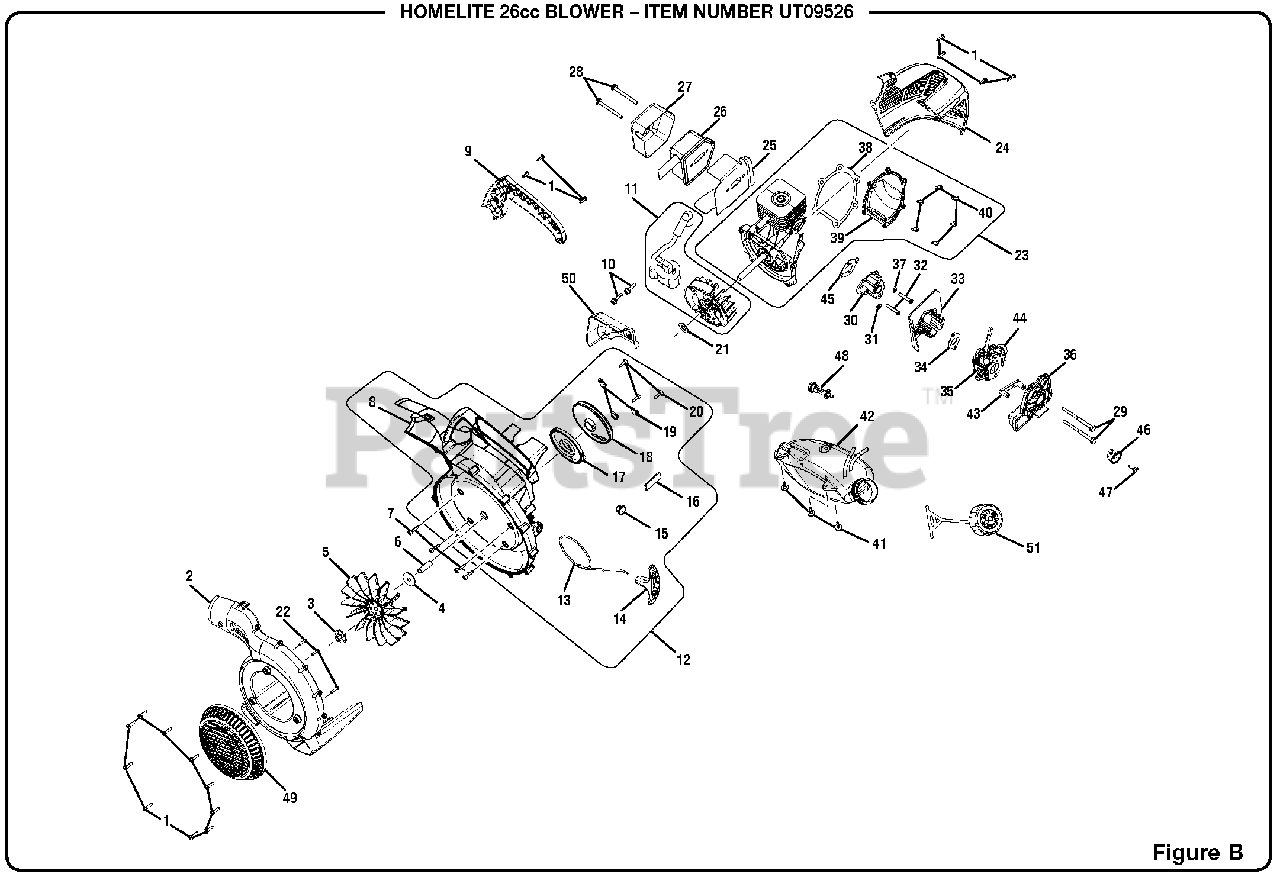

Figure B Parts Diagram

  • Title

1

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Hd.)

$1.99

$

In Stock, Qty 6

0

2

Homelite 312872001

Outer Volute w/Label

$

$

Not available

3

Homelite 660561007

Blower Fan Nut

$2.49

$

In Stock, only 4 left!

0

4

Homelite 650016001

Washer

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 521308003

Fan

$

$

Not available

6

Homelite 638091008

Spacer

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 660970001

Screw (M4 x 17 mm,T20 Torx Hd. T.F.)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 313956001

Inner Volute w/Eyelet and Label
(Superseded to 312814001)

$

$

Not available

9

Homelite 521803003

Handle Cover

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 660968001

Screw (M4 x 19 mm, T20 Torx Pan Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 311020001

Ignition Module and Flywheel Kit

$48.99

$

In Stock, only 1 left!

0

12

Homelite 312873001

Lower Housing w/Starter and Label Assembly

$106.99

$

Usually ships in 3-7 days

0

13

Homelite 900849012

Starter Rope (42 in.)

$1.99

$

In Stock, only 1 left!

0

14

Homelite 525485001

Starter Grip

$1.99

$

In Stock, only 4 left!

0

15

Homelite 638088004

Eyelet

$1.99

$

In Stock, only 3 left!

0

16

Homelite 521535013

Shield

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 638033001

Spring & Container

$5.49

$

In Stock, only 1 left!

0

18

Homelite 521316001

Starter Pulley

$4.99

$

Usually ships in 3-7 days

0

19

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

20

Homelite 660967001

Screw (M4 x 14 mm, T20 Torx Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 650017002

Washer

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 660629001

Screws (10-14 x 3/4 in., T25 Torx Pan Hd. T.F.)
(Superseded to 82563)

$1.99

$

In Stock, Qty 6

0

23

Homelite 308892033

Short Block Assembly

$140.99

$

Usually ships in 3-7 days

0

24

Homelite 312874001

Engine Cover w/Label

$

$

Not available

25

Homelite 901362003

Muffler Gasket

$2.99

$

In Stock, only 4 left!

0

26

Homelite 309327009

Muffler Assembly

$61.99

$

Usually ships in 3-7 days

0

27

Homelite 638442009

Muffler Heat Shield

$5.49

$

In Stock, only 2 left!

0

28

Homelite 660638003

Screw (10-24 x 2-1/8 in.)
(Superseded to PS03999)

$

$

Not available

29

Homelite 660454006

Screw (M5 x 48 mm)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 518920004

Heat Dam

$

$

Not available

31

Homelite 638659002

Washer

$1.99

$

In Stock, only 2 left!

0

32

Homelite 660927003

Screw (M5 x 25 mm, T20 Torx Hd.)

$1.99

$

In Stock, Qty 10

0

33

Homelite 521505001

Baffle

$1.49

$

In Stock, only 1 left!

0

34

Homelite 901552006

Heat Dam Gasket

$1.99

$

In Stock, only 2 left!

0

35

Homelite 308054114

Carburetor

$34.99

$

In Stock, Qty 14

0

36

Homelite 521851001

Air Box Base

$7.49

$

Usually ships in 3-7 days

0

37

Homelite 638911001

Washer

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 901550003

Crankcase Cover Gasket

$1.99

$

In Stock, only 2 left!

0

39

Homelite 638337005

Crankcase Cover

$6.49

$

Usually ships in 3-7 days

0

40

Homelite 660925003

Screw (M4 x 12 mm, T20 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 660970002

Screw (M4 x 14 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 1 left!

0

42

Homelite 310753016

Fuel Tank Assembly (Inc. Fuel Lines)

$22.99

$

Usually ships in 3-7 days

0

43

Homelite 521850002

Choke Lever

$1.99

$

In Stock, only 1 left!

0

44

Homelite 561635001

Primer Bulb

$8.49

$

In Stock, only 2 left!

0

45

Homelite 901551003

Intake Gasket

$1.99

$

In Stock, only 3 left!

0

46

Homelite 521608003

Choke Plate

$

$

Not available

47

Homelite 660345001

Screw (M4 x 12 mm, T20 Torx Pan Hd.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

48

Homelite 310976001

Fuel Filter

$

$

Not available

49

Homelite 521500011

Blower Door

$5.49

$

Usually ships in 3-7 days

0

50

Homelite 521535010

Baffle Plate

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 310816015

Fuel Cap Assembly (Inc. Tether)

$13.99

$

In Stock, only 1 left!

0
