UT-09523 - Homelite Blower Figure B Parts Diagram

Blower

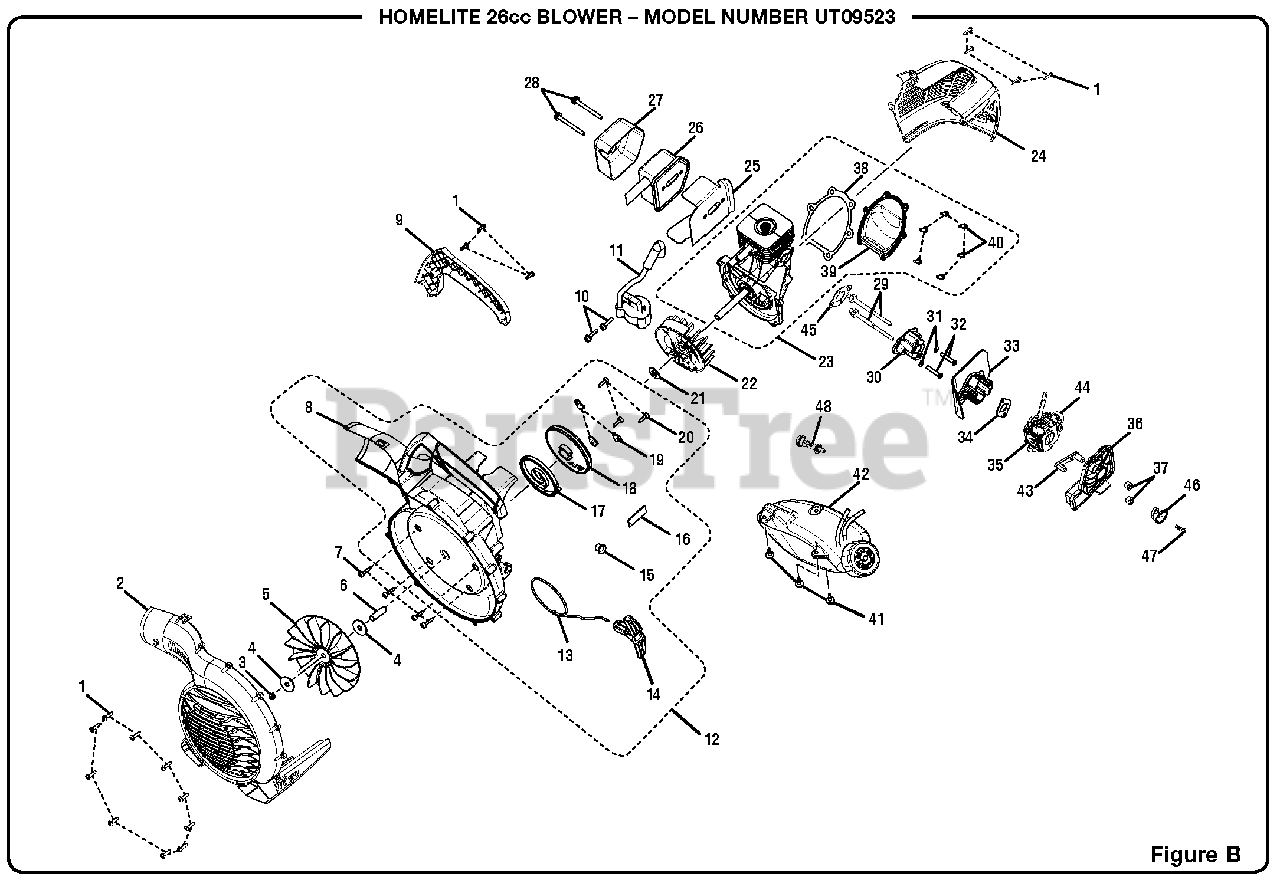

Figure B Parts Diagram

  • Title

1

Homelite 660466001

Screw (M4 x 18 mm)

$1.99

$

In Stock, Qty 6

0

2

Homelite 521802002

Outer Volute

$

$

Not available

3

Homelite 660730001

Lock Nut (3/8 in.)

$1.49

$

In Stock, only 1 left!

0

4

Homelite 650016001

Washer

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 521308001

Fan
(Superseded to 521308003)

$

$

Not available

6

Homelite 638091008

Spacer

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 660970001

Screw (M4 x 17 mm, T.F.)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 308981017

Inner Volute

$

$

Not available

9

Homelite 521803001

Handle Cover

$

$

Not available

10

Homelite 660968001

Screw (M4 x 19 mm, T.F.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 850108009

Ignition Module

$

$

Not available

12

Homelite 308563006

Lower Housing w/Starter Assembly

$

$

Not available

13

Homelite 900849012

Starter Rope (42 in.)

$1.99

$

In Stock, only 2 left!

0

14

Homelite 511731001

Starter Grip
(Superseded to PS06114)

$

$

Not available

15

Homelite 638088004

Eyelet

$1.99

$

In Stock, only 3 left!

0

16

Homelite 522600001

Shield

$

$

Not available

17

Homelite 638033001

Spring & Container

$5.49

$

In Stock, only 2 left!

0

18

Homelite 521316001

Starter Pulley

$4.99

$

In Stock, only 1 left!

0

19

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

20

Homelite 660967001

Screw (M4 x 14 mm, T.F.)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

22

Homelite 308811004

Rotor and Pawl Assembly

$

$

Not available

23

Homelite 309963001

Short Block Assembly

$61.99

$

Usually ships in 3-7 days

0

24

Homelite 521804001

Engine Cover

$16.99

$

Usually ships in 3-7 days

0

25

Homelite 901362002

Muffler Gasket

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 309327001

Muffler Assembly
(Superseded to 309327009)

$61.99

$

Usually ships in 3-7 days

0

27

Homelite 638442009

Muffler Heat Shield

$5.49

$

In Stock, only 2 left!

0

28

Homelite 660638003

Screw (10-24 x 2-1/8 in.)
(Superseded to PS03999)

$

$

Not available

29

Homelite 660927007

Screw (10-24 x 2.5 in.)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 518920001

Heat Dam

$4.99

$

In Stock, only 2 left!

0

31

Homelite 638659002

Washer

$1.99

$

In Stock, only 2 left!

0

32

Homelite 660927003

Screw (M5 x 25 mm)

$1.99

$

In Stock, Qty 10

0

33

Homelite 521505001

Baffle

$1.49

$

In Stock, only 1 left!

0

34

Homelite 901552002

Heat Dam Gasket

$

$

Not available

35

Homelite 308054041

Carburetor

$

$

Not available

36

Homelite 521851001

Air Box Base

$7.49

$

Usually ships in 3-7 days

0

37

Homelite 678868001

Hex Nut (M5)

$1.49

$

In Stock, only 2 left!

0

38

Homelite 901550001

Crankcase Cover Gasket
(Superseded to 901550003)

$1.99

$

In Stock, only 4 left!

0

39

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$6.49

$

Usually ships in 3-7 days

0

40

Homelite 660925003

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

41

Homelite 660970002

Screw (M4 x 14 mm)

$1.99

$

In Stock, only 1 left!

0

42

Homelite 310753001

Fuel Tank Assembly w/Cap
(Superseded to 310752006)

$12.99

$

Usually ships in 3-7 days

0

43

Homelite 521850001

Choke Lever

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 561635001

Primer Bulb

$8.49

$

In Stock, only 2 left!

0

45

Homelite 901551001

Heat Dam Gasket

$1.99

$

In Stock, only 3 left!

0

46

Homelite 521608001

Choke Cover

$

$

Not available

47

Homelite 660345001

Screw (M4 x 12 mm, T.F.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

48

Homelite 300759005

Fuel Filter

$9.99

$

In Stock, only 1 left!

0
