UT-09510 - Homelite Blower, 26cc Figure A Parts Diagram

Blower, 26cc

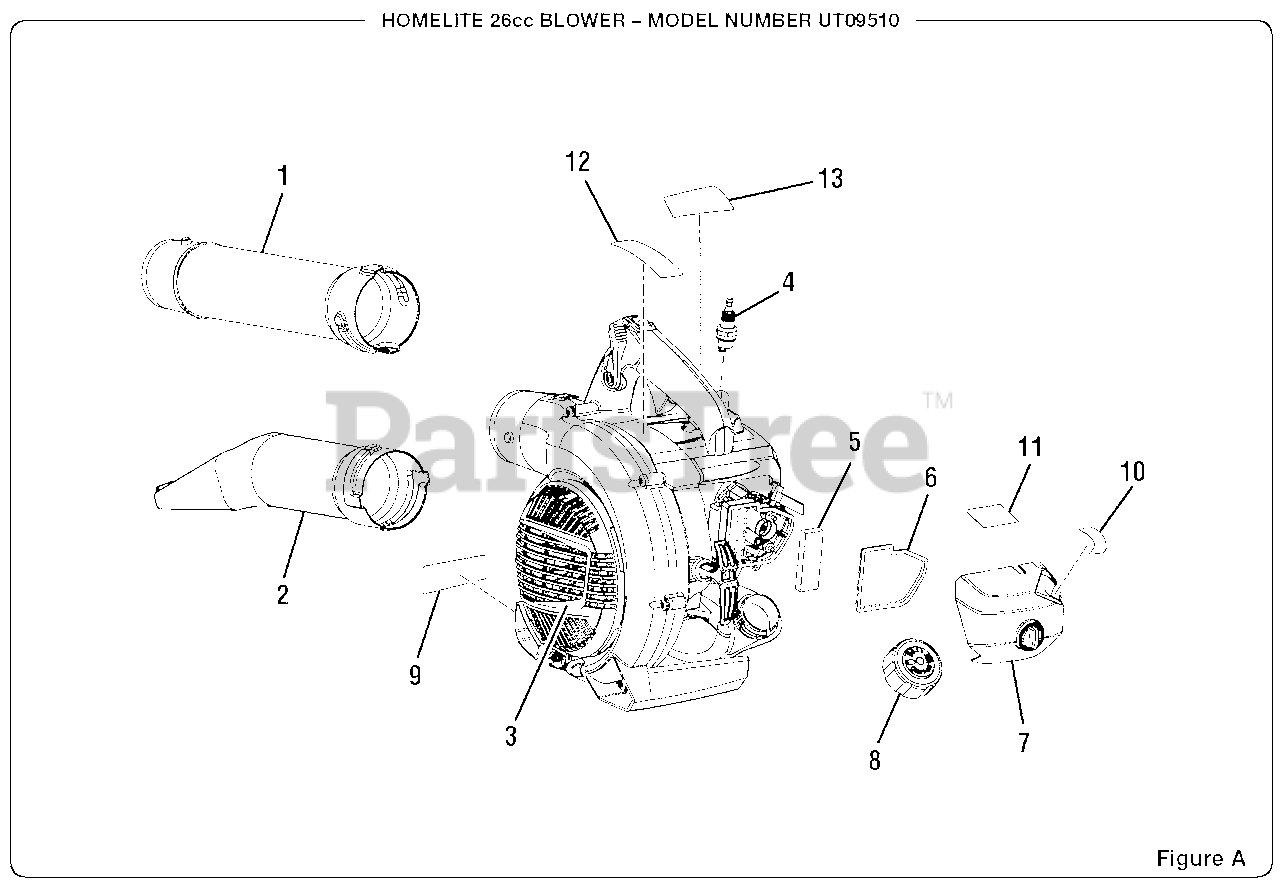

Figure A Parts Diagram

  • Title
1

Homelite 570543002

Blower Tube
(Superseded to 306947001)

$7.99

$

Usually ships in 3-7 days

0

2

Homelite 580613002

High Velocity Nozzle w/Leaf Scraper

$10.99

$

In Stock, only 1 left!

0

3

Homelite 521500003

Air Inlet Cover

$

$

Not available

4

Homelite 870174001

Spark Plug (RCJ6Y)

$4.49

$

In Stock, Qty 20+

0

$

$

Not available

6

Homelite 570107001

Air Box Gasket

$1.49

$

In Stock, only 2 left!

0

7

Homelite 310804001

Air Filter Cover

$

$

Not available

8

Homelite 310816001

Fuel Cap Assembly

$

$

Not available

9

Homelite 940654088

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 940868001

Choke Label

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 940734071

Starting Label

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 940657042

Warning Label

$

$

Not available

13

Homelite 940867001

Logo Label

$

$

Not available

Homelite 987000929

Operator's Manual (960413005)

Note: (Not Shown)

$

$

Not available
