UT-08981 - Homelite Mightylite Backpack Blower, 26cc Figure A Parts Diagram

Mightylite Backpack Blower, 26cc

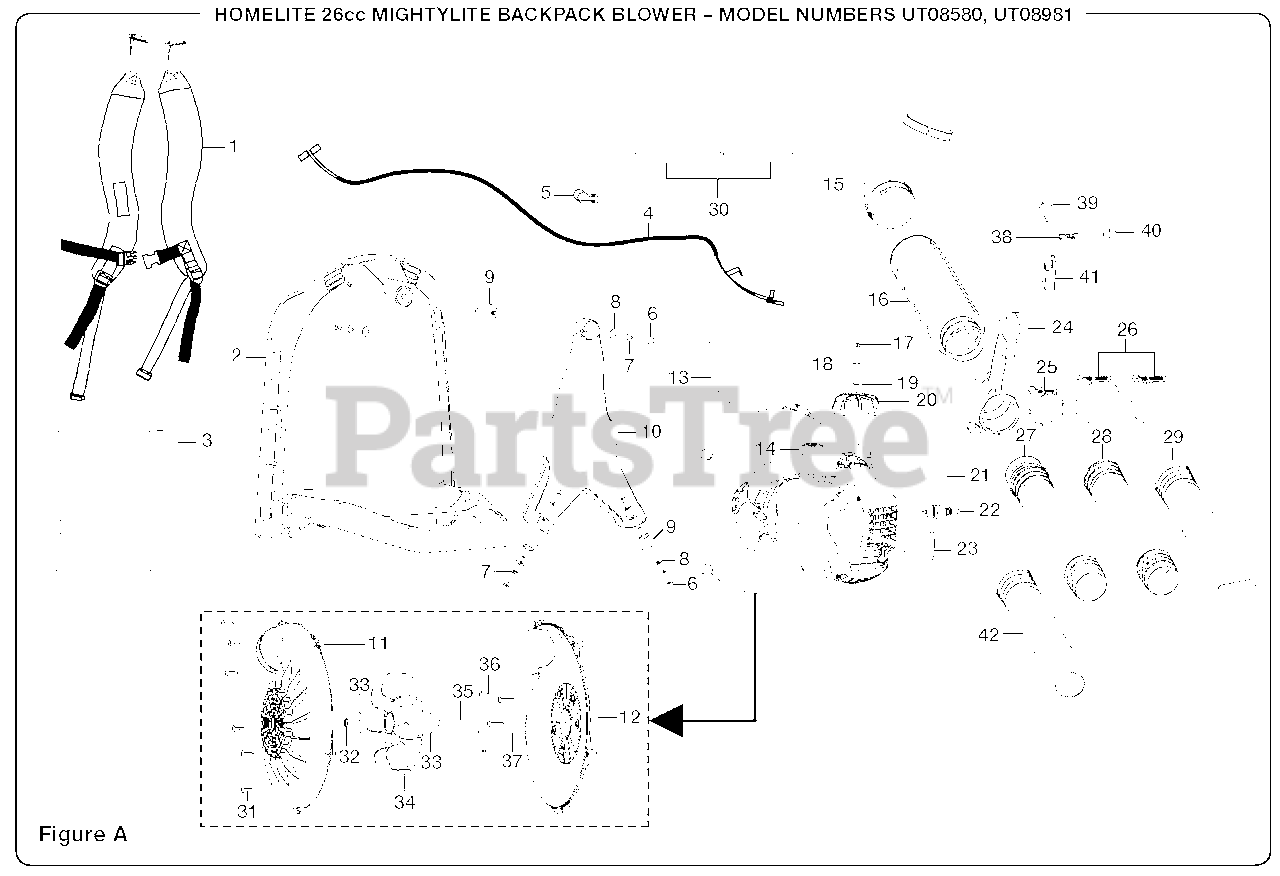

Figure A Parts Diagram

  • Title

1

Homelite 901588001

Shoulder Harness Assembly

$

$

Not available

2

Homelite 518598001

Backpack Frame

$

$

Not available

3

Homelite 901589001

Mesh Backing

$

$

Not available

4

Homelite 270021004

Throttle Cable Assembly

$16.99

$

Usually ships in 3-7 days

0

5

Homelite 678561001

Cable Clamp

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 678190002

Hex Nut (1/4-20)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 678109001

Lock Washer (1/4-20)
(Superseded to 83061)

$

$

Not available

8

Homelite 678186002

Washer (1/4-20)

$

$

Not available

9

Homelite 570546001

Bumper

$

$

Not available

10

Homelite 518591001

Frame Support

$9.99

$

In Stock, only 1 left!

0

11

Homelite 518575001

Bottom Volute

$

$

Not available

12

Homelite 518574001

Top Volute

$

$

Not available

13

Homelite 940734021

Starting Label

$

$

Not available

14

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

15

Homelite 580819001

Elbow Tube

$

$

Not available

16

Homelite 580566001

Bellows
(Superseded to 01772)

$

$

Not available

17

Homelite 678435001

Hex Nut (M4)

$

$

Not available

18

Homelite 678434002

Wavy Washer

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 678434001

Flat Washer

$

$

Not available

20

Homelite 518496001

Choke Dial Cover

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 940647010

Choke Label

$

$

Not available

22

Homelite 870174001

Spark Plug (Champion RCJ6Y)

$4.99

$

In Stock, Qty 20+

0

23

Homelite 940755005

Logo Label

$

$

Not available

24

Homelite 308920001

Throttle Control Handle

$6.49

$

Usually ships in 3-7 days

0

25

Homelite 348006003

Small Clamp
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 348006002

Large Clamp

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 580570001

Upper Tube
(Superseded to PS02941)

$

$

Not available

28

Homelite 580569001

Lower Tube

$3.49

$

In Stock, only 1 left!

0

29

Homelite 580577001

Wide Sweeper Nozzle

$

$

Not available

30

Homelite 900972001

Cable Tie

$

$

Not available

31

Homelite 660629001

Screw (10-14 x 3/4 in.)
(Superseded to 82563)

$1.99

$

In Stock, Qty 6

0

32

Homelite 660730001

Lock Nut (3/8-24)

$1.49

$

In Stock, only 1 left!

0

33

Homelite 650016001

Flat Washer

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 518581001

Fan

$6.49

$

Usually ships in 3-7 days

0

35

Homelite 638091005

Crankshaft Spacer

$2.49

$

In Stock, only 2 left!

0

36

Homelite 660674002

Screw (10-14 x 26.99 mm)

$1.99

$

In Stock, only 1 left!

0

37

Homelite 660970004

Screw (M4 x 77.5 mm)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 678542001

Trigger Lock Spring

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 760700002

Switch
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

40

Homelite 518595001

Throttle Lock

$

$

Not available

41

Homelite 518577001

Trigger

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 580504001

Nozzle

$3.99

$

In Stock, only 2 left!

0

Homelite 987000057

Operator's Manual (960705001)

$

$

Not available
