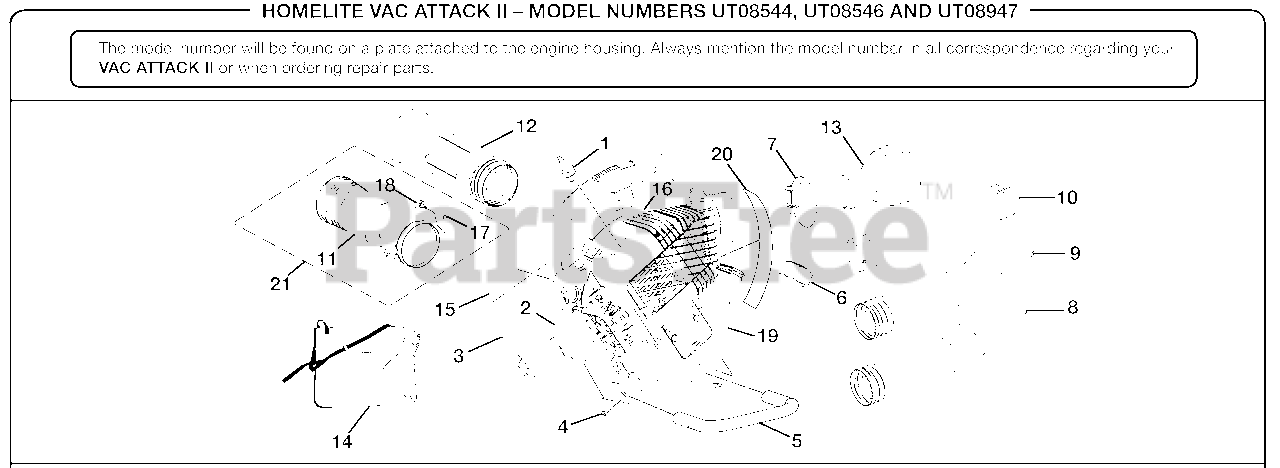

UT-08947 - Homelite Vac Attack II Blower General Assembly Parts Diagram

Vac Attack II Blower

General Assembly Parts Diagram

  • Title

1

Homelite 870174001

Spark Plug

Note: Champion RCJ6Y

$4.99

$

In Stock, Qty 20+

0

2

Homelite 560873001

Air Filter
(Superseded to 5687301)

$

$

Not available

3

Homelite 308890001

Air Box Cover Assembly

Note: Inc. Key No. 2

$

$

Not available

4

Homelite 660676001

Screw (8-18 x 1/2 in. Pan Hd.)
(Superseded to UT15519D-18)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 650024001

Lower Handle
(Superseded to 983918001)

$

$

Not available

6

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

7

Homelite 348005003

Clamp Assembly

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 580559001

High Velocity Nozzle
(Superseded to 983913001)

$

$

Not available

9

Homelite 580556001

Sweep Nozzle

$

$

Not available

10

Homelite 580555001

Upper Blower Tube
(Superseded to 983916001)

$

$

Not available

11

Homelite 580560001

Upper Vacuum Tube

$

$

Not available

12

Homelite 580561001

Lower Vacuum Tube
(Superseded to 08202)

$

$

Not available

13

Homelite 580562001

Vacuum Adaptor

$

$

Not available

14

Homelite 900960001

Leaf Bag

$23.99

$

In Stock, only 2 left!

0

15

Homelite 940299495

Door Decal

$

$

Not available

16

Homelite 940642012

Starting Label

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 650027001

E-ring

$1.99

$

In Stock, only 4 left!

0

18

Homelite 518066001

Blower Knob
(Superseded to 983898001)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 308593003

Fuel Tank & Cap Assembly

Note: Inc. Key No. 6

$

$

Currently unavailable

20

Homelite 940299493

Warning Label
(Superseded to 983912001)

$

$

Not available

21

Homelite 308384001

Vac Tube, Knob & E-ring Assembly

Note: Inc. Key Nos. 11, 17 and 18

$

$

Not available

Homelite 983000929

Operator's Manual

$

$

Not available

Homelite 987000085

Operator's Manual

$

$

Currently unavailable
