UT-08934 - Homelite Blower Volute, Fan And Tubes Parts Diagram

Blower

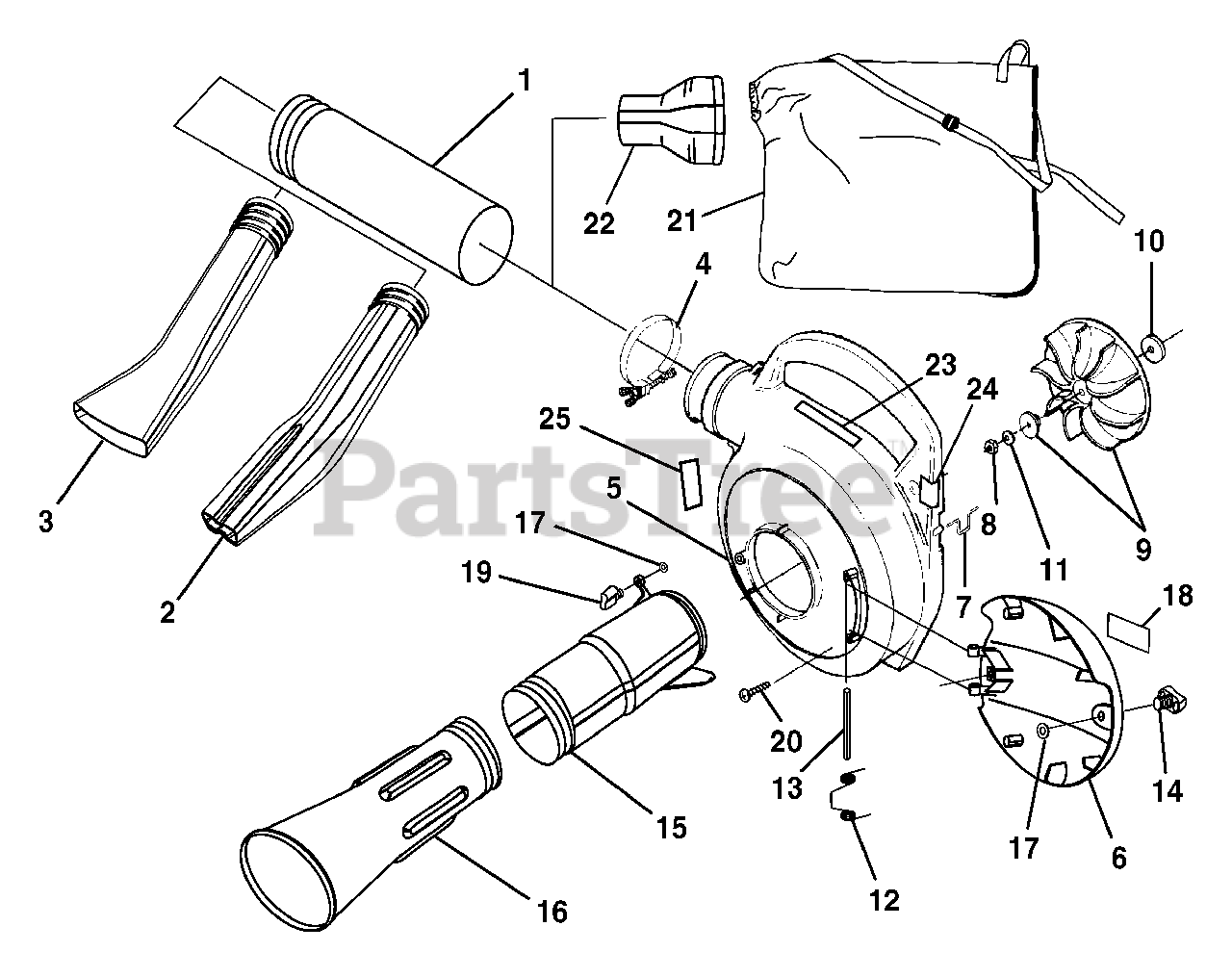

Volute, Fan And Tubes Parts Diagram

  • Title
1

Homelite 983916001

UPPER TUBE

$

$

Not available

2

Homelite 983913001

SWEEPER NOZZLE

$

$

Not available

3

Homelite 00373A

LOWER NOZZLE
(Superseded to 580556001)

$

$

Not available

4

Homelite 983906001

CLAMP WITH FASTENERS
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 983857002

OUTER VOLUTE HOUSING

$

$

Not available

$

$

Not available

7

Homelite 00398

WIRE LOOP

$

$

Not available

8

Homelite 81124A

HEX NUT (3/8-24)

Note: PURCHASE LOCALLY

$

$

Not available

9

Homelite 984911001

BLOWER FAN KIT
(Superseded to UP06826A)

$

$

Not available

10

Homelite 03165

FLAT WASHER
(Superseded to 650016001)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 03163

BELLVILLE WASHER (3/8)

$

$

Not available

12

Homelite 983863001

DOOR HINGE SPRING
(Superseded to 638064001)

$

$

Not available

13

Homelite 983862001

DOOR HINGE SHAFT

$

$

Not available

14

Homelite 983898002

BLOWER KNOB
(Superseded to 518066002)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 983915001

UPPER VACUUM TUBE
(Superseded to 580560001)

$

$

Not available

16

Homelite 08202

LOWER VACUUM TUBE
(Superseded to 580561001)

$

$

Not available

17

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 985201001

DOOR VAC ATTACK DECAL

$

$

Not available

19

Homelite 983898001

BLOWER KNOB

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 82541

SCREW (10 x 1/2 in. TORX TRUSS HD.)

Note: PURCHASE LOCALLY

$1.99

$

In Stock, only 3 left!

0

21

Homelite 983914001

LEAF BAG
(Superseded to 900960001)

$23.99

$

In Stock, only 1 left!

0

22

Homelite 983917001

VACUUM BAG TUBE
(Superseded to 580562001)

$

$

Not available

23

Homelite 983901001

WARNING DECAL

$

$

Not available

24

Homelite 983903001

OUTER VOLUTE DECAL

$

$

Not available

25

Homelite 983912001

FAN INTAKE DECAL

$

$

Not available

Homelite 983000256

OPERATOR'S MANUAL
(Superseded to 983000257)

$

$

Not available

Homelite 983000256R

REPAIR SHEET (REV:00)

$

$

Currently unavailable
