UT-08934 - Homelite Blower Starter Parts Diagram

Blower

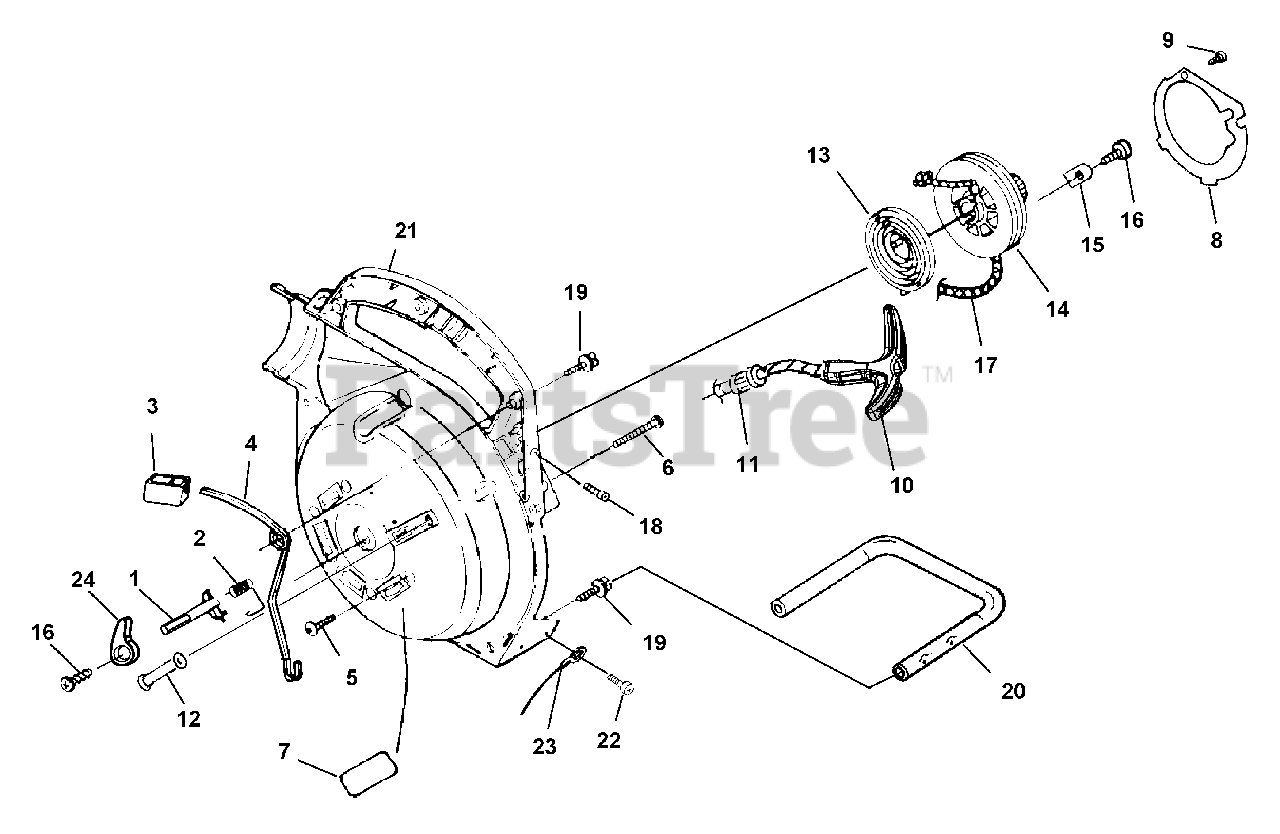

Starter Parts Diagram

  • Title
1

Homelite 983864001

THROTTLE LATCH

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 00370

THROTTLE LATCH SPRING
(Superseded to 638075001)

$

$

Not available

3

Homelite 00367

THROTTLE TRIGGER

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 00369A

THROTTLE LEVER

$

$

Not available

5

Homelite 82538

SCREW (10-24 x 3/4 in.TRUSS HD.)

Note: PURCHASE LOCALLY

$1.99

$

Usually ships in 3-7 days

0

6

Homelite JA416903

SCREW (10 x 1-5/8 in. HEX HD.)

Note: PURCHASE LOCALLY

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 08684

HEAT SHIELD
(Superseded to 900955001)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 00374

ROTOR PLATE

$3.49

$

Usually ships in 3-7 days

0

9

Homelite 82528

SCREW (#6 x 1 3/8)

Note: PURCHASE LOCALLY

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 5946702

STARTER GRIP (YELLOW)
(Superseded to PS01200)

$2.49

$

In Stock, only 3 left!

0

11

Homelite 969811A

BUSHING STARTER

$

$

Not available

12

Homelite 00364B

STARTER ROPE GUIDE
(Superseded to 650013001)

$

$

Not available

13

Homelite A98773A

SPRING AND CONTAINER
(Superseded to 638033001)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite 98770A

STARTER PULLEY

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 98791

RETAINING BRACKET

$

$

Not available

16

Homelite 82541

SCREW (10-24 x 1/2 in. TORX TRUSS HD.)

Note: PURCHASE LOCALLY

$1.99

$

In Stock, only 3 left!

0

17

Homelite 9789901

STARTER ROPE
(Superseded to 900849001)

$1.99

$

In Stock, only 3 left!

0

18

Homelite PS82146

SCREW (8-32 x 5/8 in. FIL. HD.)
(Superseded to 660670001)

Note: PURCHASE LOCALLY

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 82563

SCREW (10-14 x 3/4 in. TORX TRUSS HD.)

Note: PURCHASE LOCALLY

$1.99

$

In Stock, Qty 6

0

20

$

$

Not available

21

Homelite PS03167

INNER VOLUTE HOUSING

$

$

Not available

22

Homelite 82348A

SCREW (8-18 x 1/2 in. PAN HD.)

Note: PURCHASE LOCALLY

$

$

Not available

23

Homelite A07238

LEAD-GROUND
(Superseded to 290218001)

$

$

Not available

24

Homelite 983856001

THROTTLE CONTROL KNOB

$

$

Not available
