UT-08934-D - Homelite Blower Starter Parts Diagram

Blower

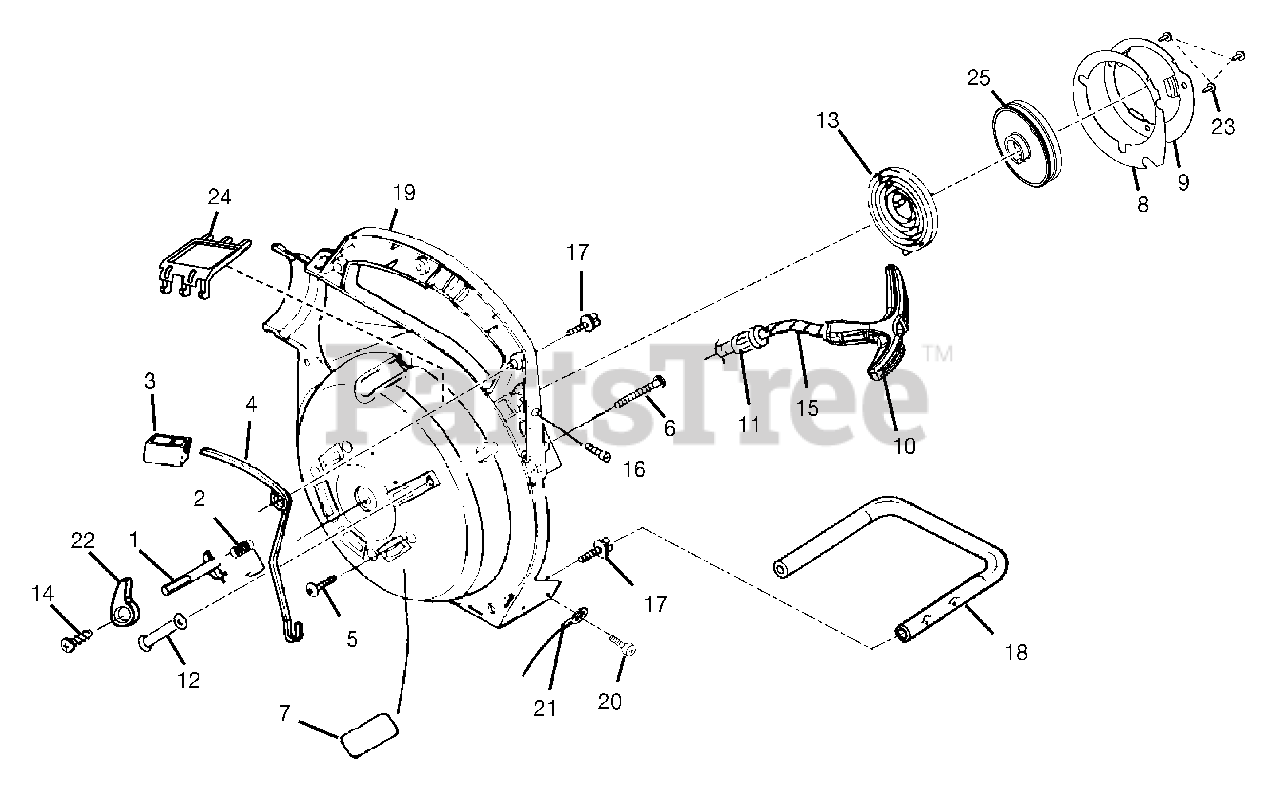

Starter Parts Diagram

  • Title
1

Homelite 983864001

THROTTLE LATCH

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 00370

THROTTLE LATCH SPRING
(Superseded to 638075001)

$

$

Not available

3

Homelite 00367

THROTTLE TRIGGER

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 00369A

THROTTLE LEVER

$

$

Not available

5

Homelite 82538

SCREW (10-24 x 3/4 in.TRUSS HD.)

Note: PURCHASE LOCALLY

$1.99

$

Usually ships in 3-7 days

0

6

jA416903

SCREW (10 x 1-5/8 in. HEX HD.)

Note: PURCHASE LOCALLY

$

$

Not available

7

Homelite 08684

HEAT SHEILD
(Superseded to 900955001)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 985261001

BAFFLE GASKET

$2.49

$

Usually ships in 3-7 days

0

9

$2.49

$

In Stock, only 1 left!

0

10

Homelite 5946702

STARTER GRIP (YELLOW)
(Superseded to PS01200)

$2.49

$

In Stock, only 3 left!

0

11

Homelite 969811A

Bu SHING STARTER

$

$

Not available

12

Homelite 00364B

STARTER ROPE GUIDE
(Superseded to 650013001)

$

$

Not available

13

Homelite A98773A

SPRING AND CONTAINER
(Superseded to 638033001)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite 82541

SCREW (10-24 x 1/2 in. TORx TRu SS HD.)

Note: PURCHASE LOCALLY

$1.99

$

In Stock, only 3 left!

0

15

Homelite 900849004

ROPE STARTER
(Superseded to 900849001)

$1.99

$

In Stock, only 3 left!

0

16

Homelite PS82146

SCREW (8-32 x 5/8 in. FIL. HD.)
(Superseded to 660670001)

Note: PURCHASE LOCALLY

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 82563

SCREW (10-14 x 3/4 in. TORx TRu SS HD.)

Note: PURCHASE LOCALLY

$1.99

$

In Stock, Qty 6

0

18

Homelite 983918001

LOw ER HANDLE

$

$

Not available

19

Homelite H4207401

INNER v OLu TE HOu SING

$

$

Not available

20

Homelite 82348A

SCREW (8-18 x 1/2 in. PAN HD.)

Note: PURCHASE LOCALLY

$

$

Not available

21

Homelite A07238

LEAD-GROUND
(Superseded to 290218001)

$

$

Not available

22

Homelite 983856001

THROTTLE CONTROL KNOB

$

$

Not available

23

Homelite 82376

SCREW
(Superseded to 660669001)

$1.49

$

In Stock, only 3 left!

0

24

Homelite 9096101

SCREEN COVER
(Superseded to 518229001)

$

$

Not available

25

Homelite 308374001

PULLEY ASSEMBLY
(Superseded to 308386001)

$

$

Not available
