UT-08931 - Homelite Blower Volute, Fan And Tubes Parts Diagram

Blower

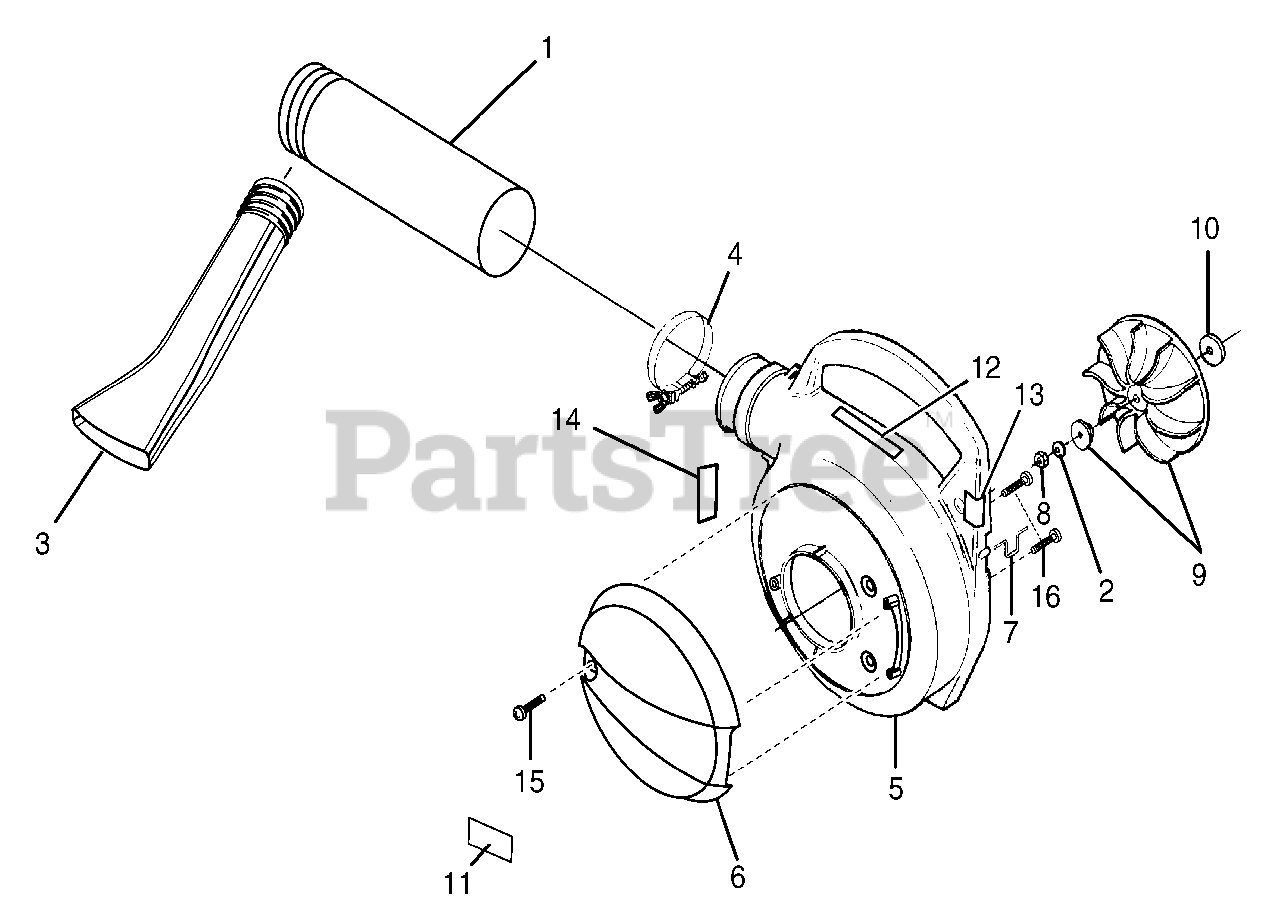

Volute, Fan And Tubes Parts Diagram

  • Title

1

Homelite 00372B

UPPER TUBE

$

$

Not available

2

Homelite 03163

BELLVILLE WASHER (3/8 in.)

$

$

Not available

3

Homelite 00373A

LOWER NOZZLE
(Superseded to 580556001)

$

$

Not available

4

Homelite 983906001

CLAMP WITH FASTENERS
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 983857002

OUTER VOLUTE HOUSING

$

$

Not available

6

Homelite 983861001

DOOR

$

$

Not available

7

Homelite 00398

WIRE LOOP

$

$

Not available

8

Homelite 81124A

HEX NUT (3/8-24)

Note: PURCHASE LOCALLY

$

$

Not available

9

Homelite 984911001

BLOWER FAN KIT
(Superseded to UP06826A)

$

$

Not available

10

Homelite 03165

FLAT WASHER
(Superseded to 650016001)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 984921001

DOOR YARD BROOM DECAL

$

$

Not available

12

Homelite 983901001

WARNING DECAL

$

$

Not available

13

Homelite 983903001

OUTER VOLUTE DECAL

$

$

Not available

14

Homelite 983912001

FAN INTAKE DECAL

$

$

Not available

15

Homelite 617205001

SCREW (1/4-20)

Note: PURCHASE LOCALLY

$

$

Not available

16

Homelite 82541

SCREW (10-24 X 1/2 in TORX TRUSS HD)

Note: PURCHASE LOCALLY

$1.99

$

In Stock, only 3 left!

0

Homelite 983000-254

OPERATOR'S MANUAL

$

$

Not available

Homelite 983000-254R

REPAIR SHEET (REV:00)

$

$

Currently unavailable
